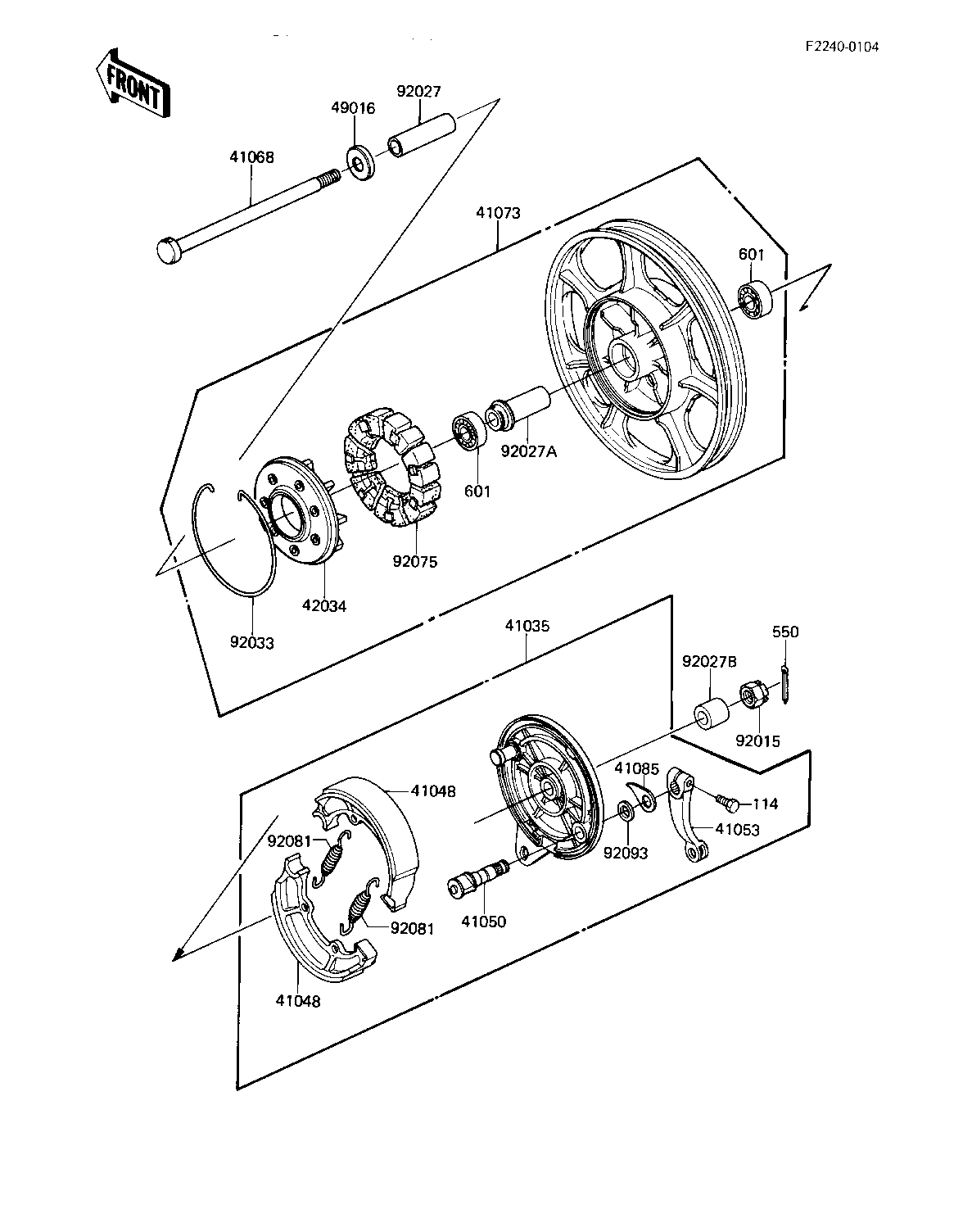

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PANEL-ASSY-BRAKE,RR | 41035 | 41035-1110 | 1 | ||
SHOE,BRAKE | 41048 | 42019-012 | 2 | ||
CAM SHAFT,BRAKE | 41050 | 41050-017 | 1 | ||
LEVER REAR BRAKE CAM | 41053 | 42029-039 | 1 | ||
AXLE,RR | 41068 | 41068-1086 | 1 | ||
WHEEL-ASSY,RR,F.BLACK | 41073 | 41073-1161-21 | 1 | ||
INDICATOR,BRAKE SHOE | 41085 | 41085-004 | 1 | ||
COUPLING,RR HUB | 42034 | 42034-1029 | 1 | ||
COVER-SEAL | 49016 | 49016-1038 | 1 | ||
NUT CASTLE,16MM | 92015 | 92015-055 | 1 | ||
COLLAR,17.2X25X79 | 92027 | 92027-1415 | 1 | ||
COLLAR,L=60 | 92027A | 92027-1416 | 1 | ||
COLLAR,AXLE,17.2X30X3 | 92027B | 92027-1466 | 1 | ||
RING-SNAP,194MM | 92033 | 92033-1075 | 1 | ||
DAMPER,RR HUB SHOCK | 92075 | 92075-1372 | 1 | ||
SPRING,BRAKE SHOE | 92081 | 41049-012 | 2 | ||
DUST SHIELD-BRAKE CAM | 92093 | 41051-003 | 1 | ||
BOLT HEX HEAD 8X28 | 114 | 114G0828 | 1 | ||
PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
BEARING-BALL #6303ZC3 | 601 | 601B6303Z | 2 |
