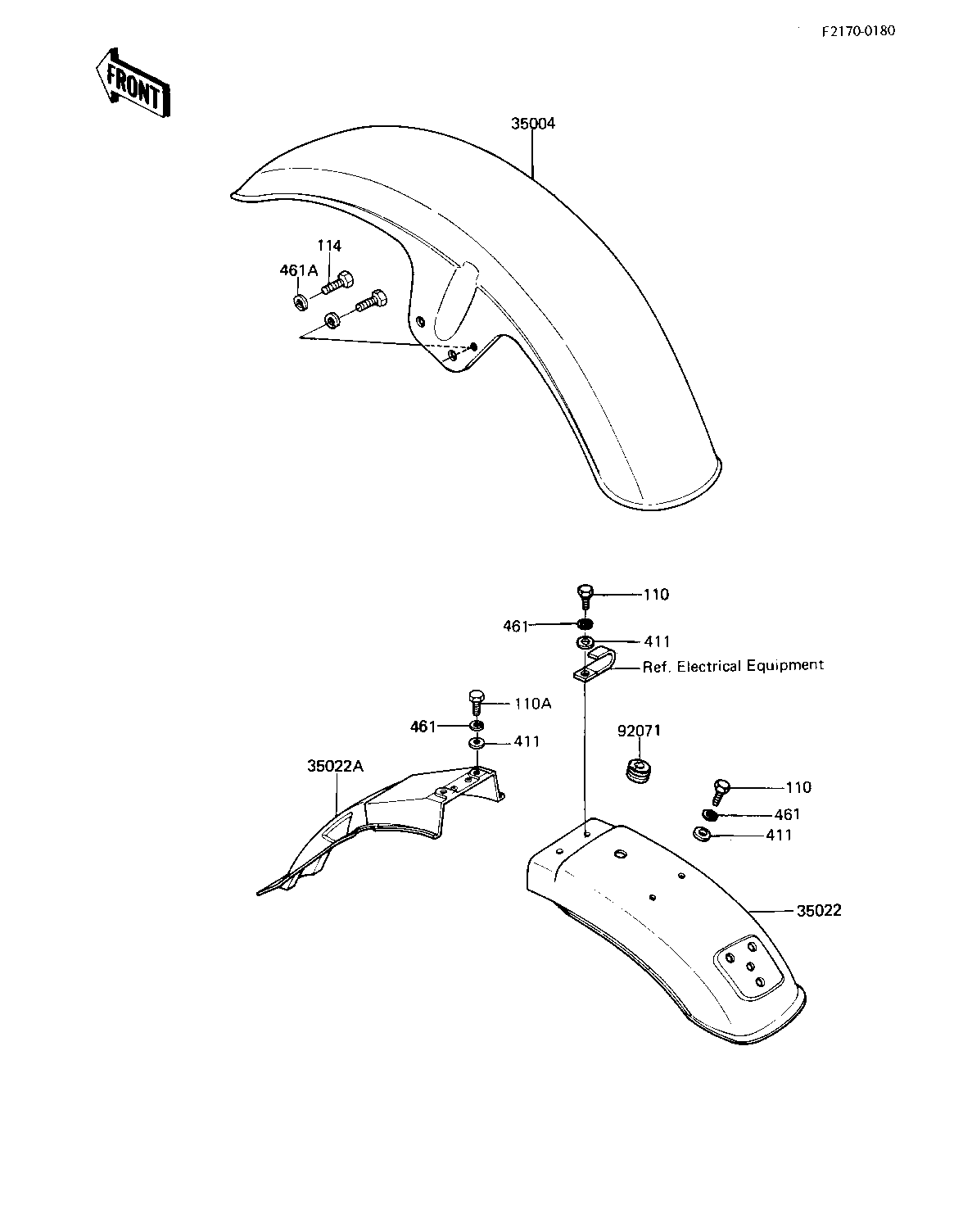

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR 35004 35004-1047 1
FENDER-RR 35022 35022-1059 1
FENDER-COMP-REAR,FR 35022A 35022-1105 1
GROMMET HARNESS 10MM 92071 92071-019 1
BOLT-UPSET 6X14 110 112B0614 4
BOLT-UPSET 110A 112G0618 2
BOLT-SMALL-UPSET,8X16 114 115G0816 4
WASHER PLAIN 6MM 411 411B0600 6
WASHER SPRING 6MM 461 461F0600 6
WASHER SPRING 8MM 461A 461F0800 4
