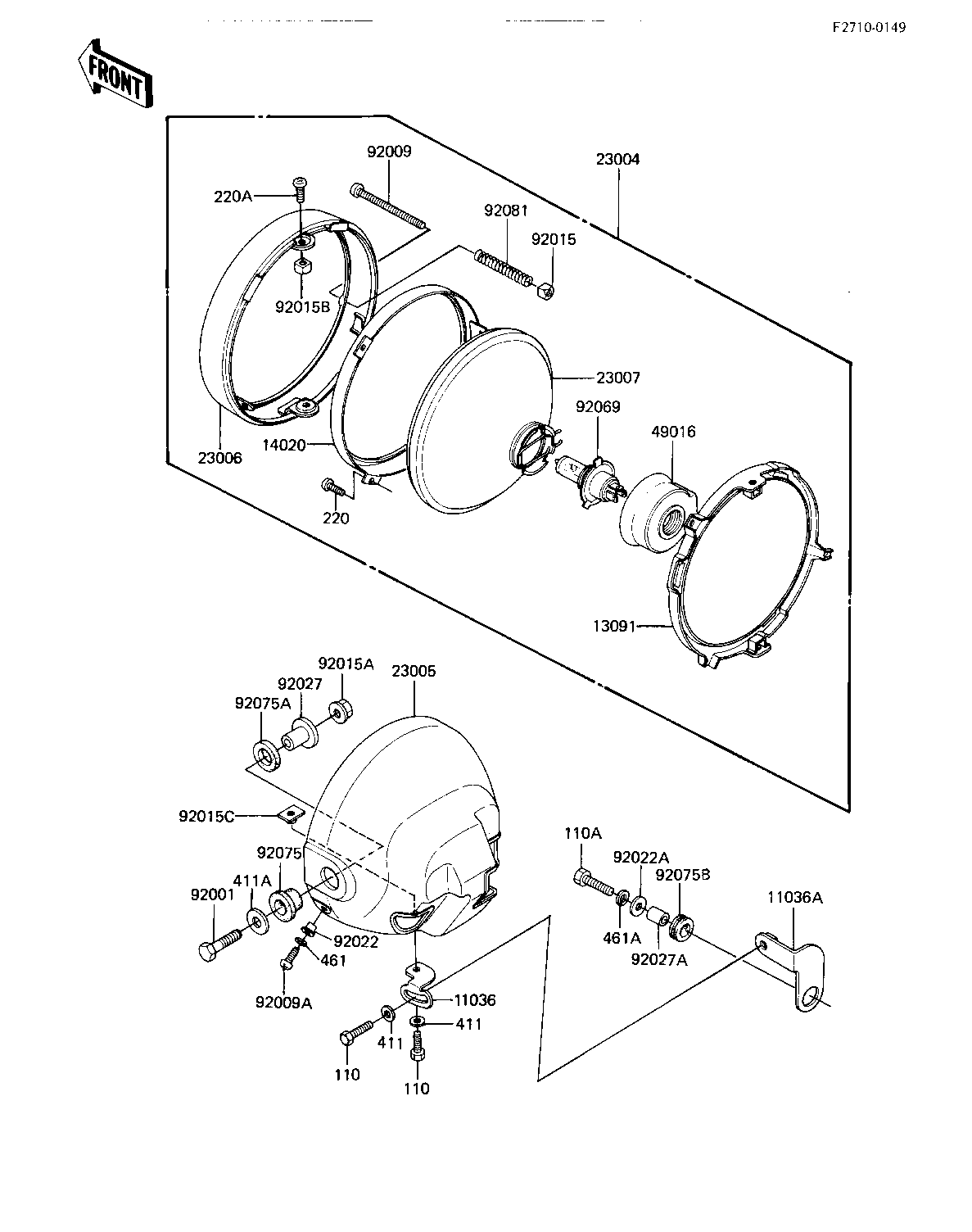

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET-A,HEAD LAMP | 11036 | 11036-1649 | 1 | ||
BRACKET-A | 11036A | 11036-1650 | 1 | ||
HOLDER,HEAD LAMP | 13091 | 13091-1160 | 1 | ||
RETAINER,HEAD LAMP | 14020 | 14020-1018 | 1 | ||
LAMP-HEAD | 23004 | 23004-1087 | 1 | ||
BODY-COMP-HEAD LAMP,C | 23005 | 23005-1027 | 1 | ||
RIM-LAMP,CR PLATED | 23006 | 23006-1020 | 1 | ||
LENS UNIT,HEAD LAMP | 23007 | 23007-1009 | 1 | ||
DUST COVER | 49016 | 49016-1016 | 1 | ||
BOLT 8X38 | 92001 | 92001-1405 | 2 | ||
SCREW,FOCUS ADJU.4X52 | 92009 | 92009-1033 | 1 | ||
SCREW-PAN HEAD,5MM | 92009A | 92011-024 | 2 | ||
NUT,4MM | 92015 | 23020-018 | 1 | ||
NUT,8M/M | 92015A | 92015-1014 | 2 | ||
NUT,5MM | 92015B | 92015-1157 | 2 | ||
NUT-6MM,HEAD LAMP | 92015C | 92015-1231 | 1 | ||
WASHER | 92022 | 23021-010 | 2 | ||
WASHER 6.5X20X1.6T | 92022A | 92022-125 | 1 | ||
COLLAR,HEAD LAMP FITT | 92027 | 92027-1131 | 2 | ||
COLLAR,REAR FENDER | 92027A | 92027-162 | 1 | ||
BULB,12V-60/55W | 92069 | 92069-1002 | 1 | ||
DAMPER,HEAD LAMP FITT | 92075 | 92075-1109 | 2 | ||
DAMPER,HEAD LAMP FITT | 92075A | 92075-1110 | 2 | ||
DAMPER RUBBER,RR FENR | 92075B | 92075-209 | 1 | ||
SPRING FOCUS ADJUST | 92081 | 23014-005 | 1 | ||
BOLT-UPSET 6X14 | 110 | 112B0614 | 2 | ||
BOLT-UPSET | 110A | 112G0625 | 1 | ||
SCREW PAN HEAD 3X8 | 220 | 220B0308 | 2 | ||
SCREW PAN HEAD 5X10 | 220A | 220B0510 | 2 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
WASHER,PLAIN,8MM | 411A | 411D0800 | 2 | ||
WASHER SPRING 5MM | 461 | 461F0500 | 2 | ||
WASHER SPRING 6MM | 461A | 461F0600 | 1 |
