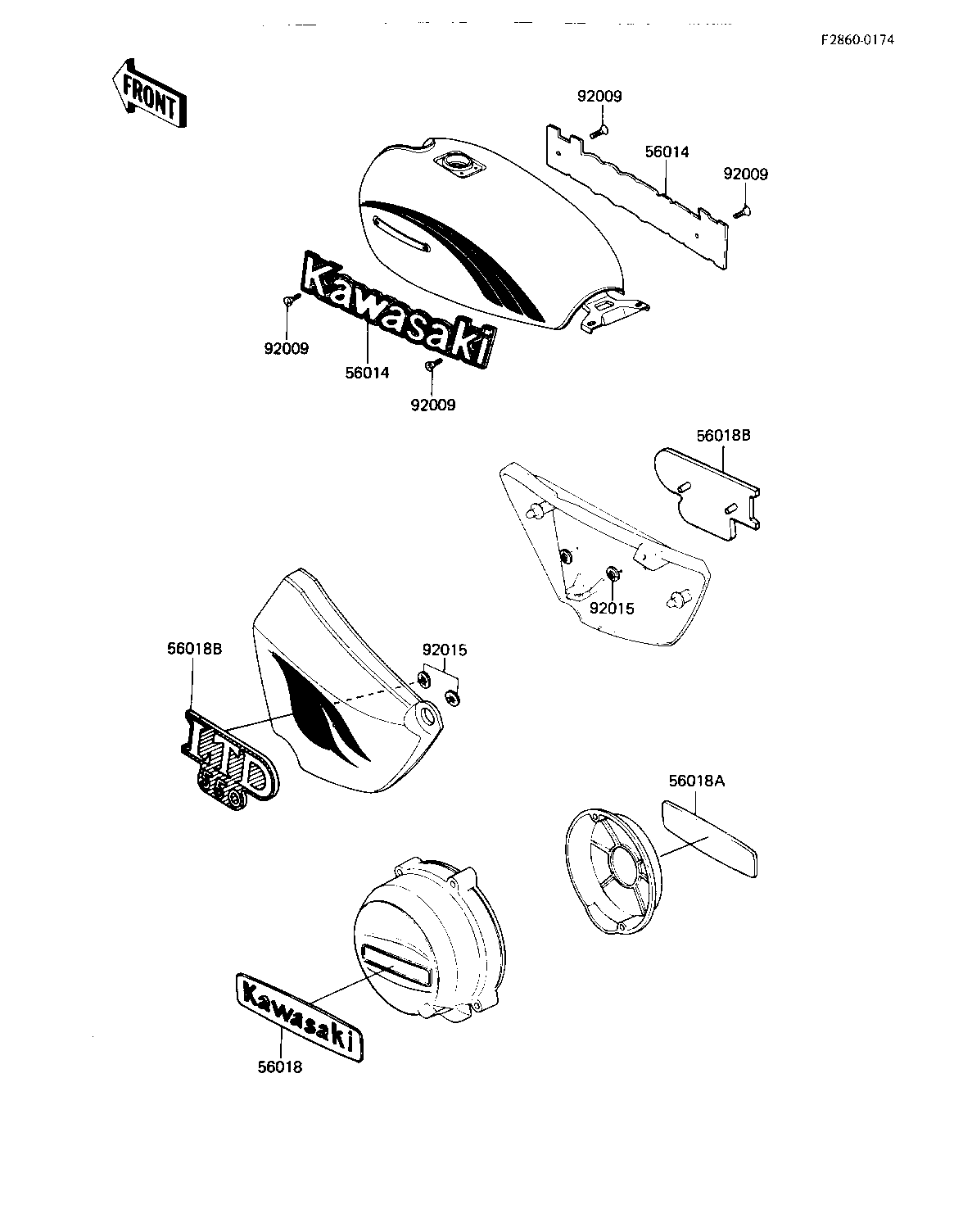

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK 56014 56014-1042 2
MARK,GENERATOR COVER 56018 56018-1291 1
MARK,GOVERNOR CAP 56018A 56018-1292 1
MARK,SIDE COVER,"LTD5 56018B 56018-1374 2
SCREW-CSK-CROS 92009 221C0306 4
NUT,LOCK,3MM 92015 92018-005 4
