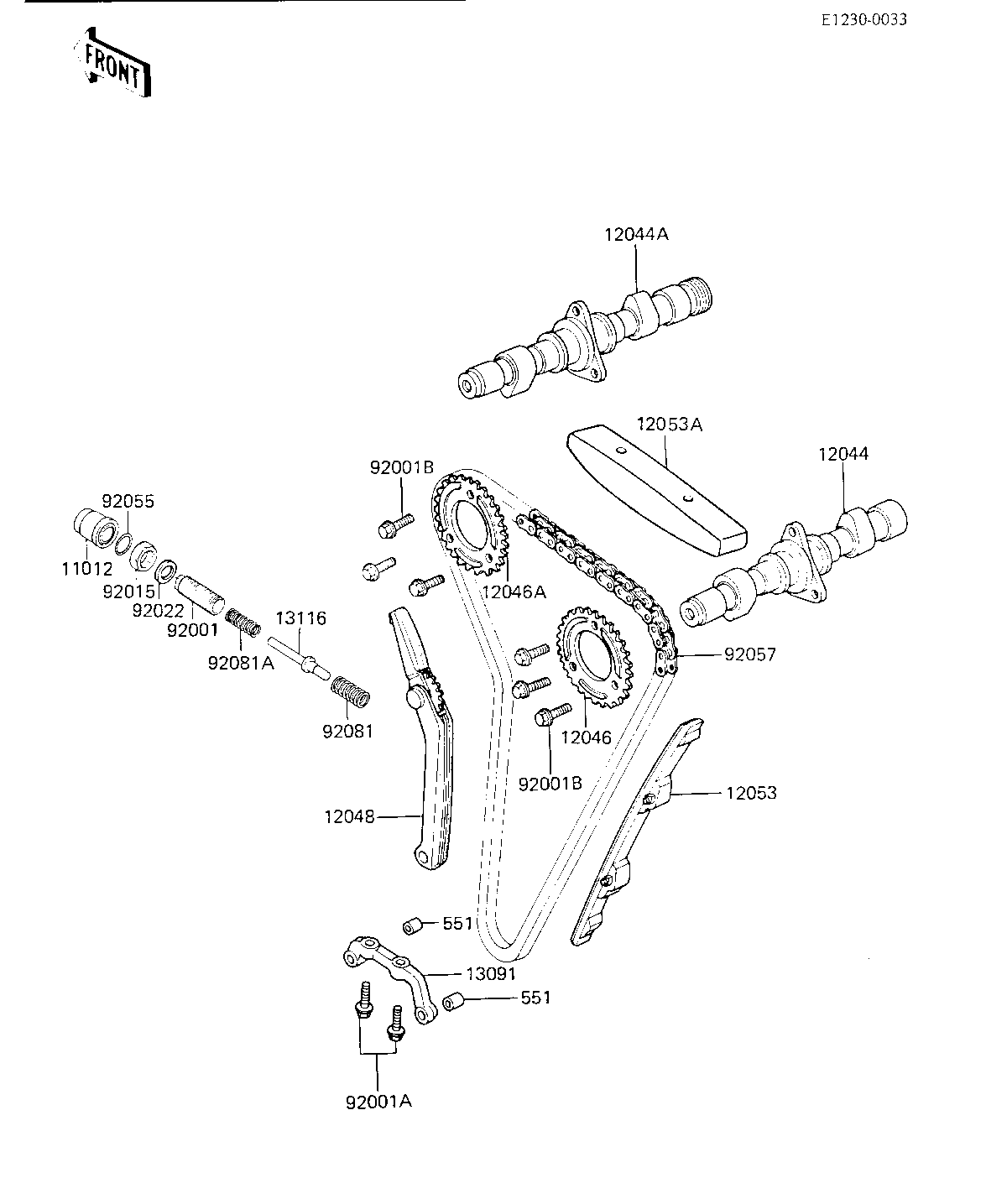

1984 KZ750-K2 (Canada Only) - CAMSHAFTS/CHAIN/TENSIONER
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,CHN TENSIONER | 11012 | 12064-003 | 1 | ||
CAM SHAFT,INLET | 12044 | 12044-010 | 1 | ||
CAMSHAFT,EXHAUST | 12044A | 12044-020 | 1 | ||
SPROCKET,CAM SFT,IN | 12046 | 12046-006 | 1 | ||
SPROCKET,CAM SFT,EXH | 12046A | 12046-007 | 1 | ||
TENSIONER ASSY,CAM | 12048 | 12048-005 | 1 | ||
SLIPPER,CAM CHAIN | 12053 | 12053-015 | 1 | ||
GUIDE-CHAIN,CAM | 12053A | 12053-1072 | 1 | ||
HOLDER | 13091 | 14018-006 | 1 | ||
ROD,PUSH | 13116 | 13116-1001 | 1 | ||
BOLT,PUSH ROD | 92001 | 92001-1009 | 1 | ||
BOLT | 92001A | 92003-202 | 2 | ||
BOLT,SPROCKET FITTING | 92001B | 92003-208 | 6 | ||
NUT 18MM | 92015 | 92015-019 | 1 | ||
WASHER,PLAIN | 92022 | 92022-320 | 1 | ||
"O" RING | 92055 | 92055-095 | 1 | ||
CHAIN,CAM | 92057 | 21070-011 | 1 | ||
SPRING,PUSH ROD | 92081 | 92081-1007 | 1 | ||
SPRING | 92081A | 92081-1008 | 1 | ||
PIN,DOWEL,10X32 | 551 | 551A1032 | 2 |
