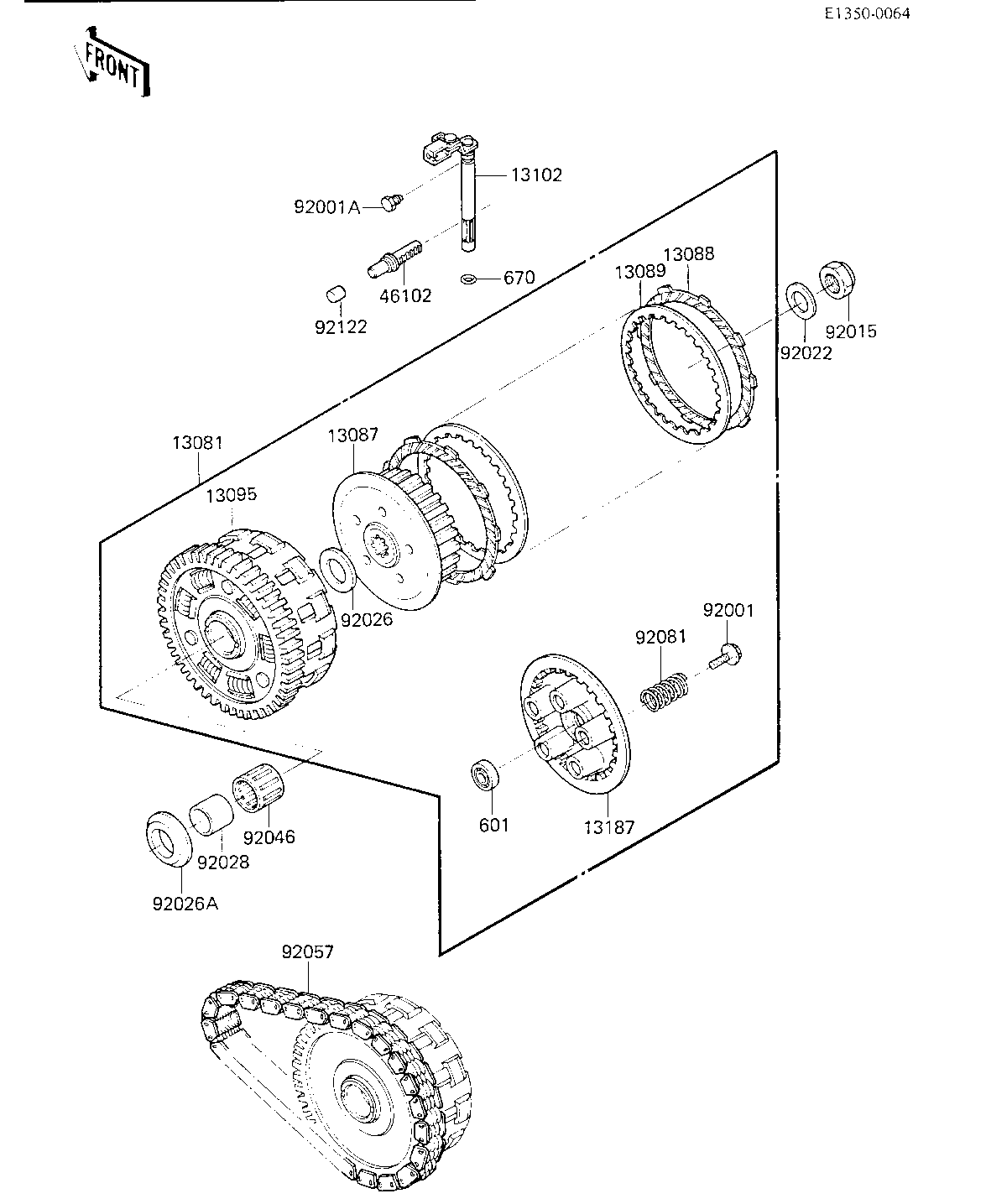

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CLUTCH-ASSY | 13081 | 13081-1092 | 1 | ||
HUB,CLUTCH | 13087 | 13087-042 | 1 | ||
PLATE-FRICTION | 13088 | 13088-1013 | 8 | ||
PLATE,CLUTCH STEL | 13089 | 13089-027 | 7 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1051 | 1 | ||
RELEASE-COMP-CLUTCH | 13102 | 13102-1020 | 1 | ||
PLATE-CLUTCH OPERATIN | 13187 | 13187-1006 | 1 | ||
ROD | 46102 | 46102-1053 | 1 | ||
BOLT,CLUTCH SPR FITT | 92001 | 92001-1066 | 5 | ||
BOLT,CLUTCH RELEASE | 92001A | 92003-130 | 1 | ||
NUT,20MM | 92015 | 92015-1555 | 1 | ||
WASHER,6.5X16X2 | 92022 | 92022-1565 | 1 | ||
WASHER TH 25.5X47X2.5 | 92026 | 92026-022 | 1 | ||
SPACER | 92026A | 92026-123 | 1 | ||
BUSHING,CLUTCH | 92028 | 92028-178 | 1 | ||
BEARING,KTV323723 | 92046 | 92046-028 | 1 | ||
CHAIN,PRIMARY | 92057 | 13122-008 | 1 | ||
SPRING,CLUTCH | 92081 | 92081-139 | 5 | ||
ROLLER,10X12 | 92122 | 92122-1019 | 1 | ||
BEARING-BALL | 601 | 92045-1235 | 1 | ||
"O" RING,9MM | 670 | 670B1509 | 1 |
