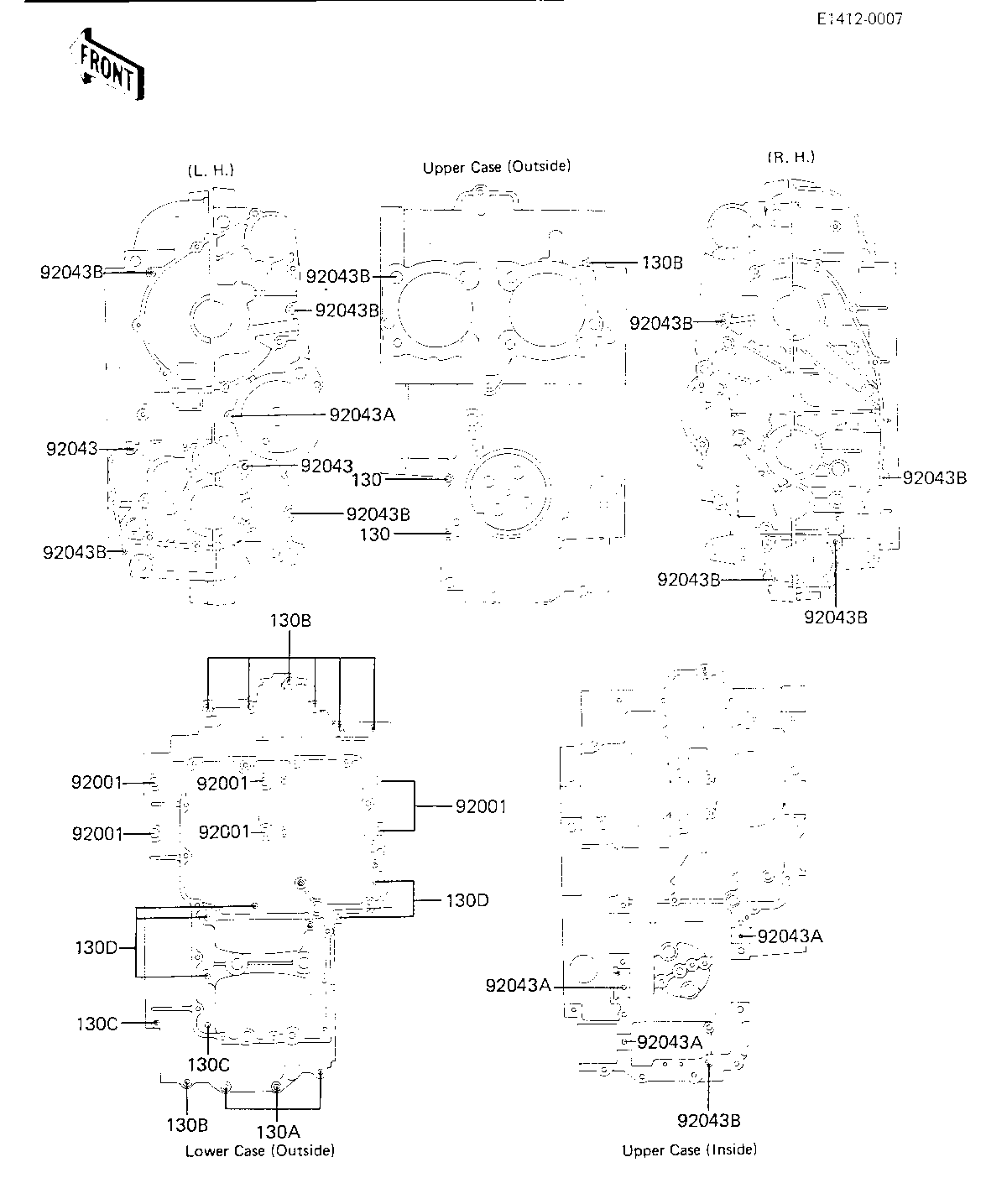

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,10X115 92001 92003-187 6
PIN-DOWEL 92043 92042-007 2
PIN DOWEL 6MM 92043A 92042-016 4
PIN,DOWEL,10X8.2X14 92043B 92043-1037 10
BOLT-FLANGED,6X105 130 130G06105 2
BOLT,FLANGED,6X40 130A 130G0640 3
BOLT,FLANGED,6X55 130B 130G0655 8
BOLT-FLANGED,6X70 130C 130G0670 2
BOLT-FLANGED,6X95 130D 130G0695 5
