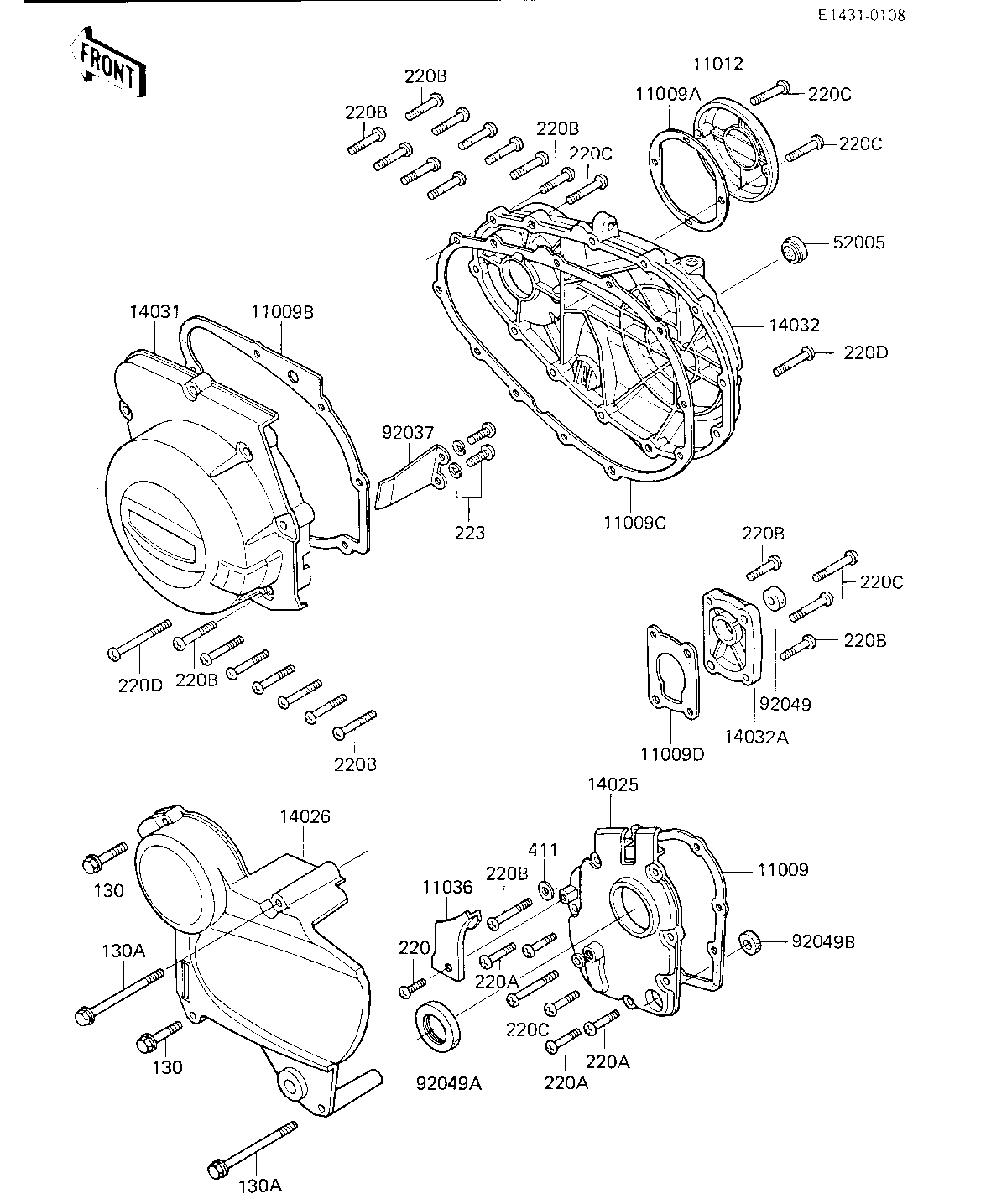

1984 KZ750-K2 (Canada Only) - ENGINE COVERS
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TRANSMISSION C | 11009 | 11060-1056 | 1 | ||
GASKET,CONTACT BREAKE | 11009A | 11009-1322 | 1 | ||
GASKET,GENERATOR COVE | 11009B | 11009-1328 | 1 | ||
GASKET,R.H ENGINE COV | 11009C | 14046-033 | 1 | ||
GASKET,KICK COVER | 11009D | 14046-034 | 1 | ||
CAP,CONTACT BREAKER | 11012 | 11012-1267 | 1 | ||
BRACKET-A,MISSION COV | 11036 | 11036-1678 | 1 | ||
COVER,MISSION | 14025 | 14025-1554 | 1 | ||
COVER-CHAIN | 14026 | 14026-1076 | 1 | ||
COVER-GENERATOR | 14031 | 14031-1103 | 1 | ||
COVER-CLUTCH | 14032 | 14032-1092 | 1 | ||
COVER,KICK | 14032A | 14032-112-2H | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
CLAMP,GENERATOR WIRE | 92037 | 92037-1122 | 1 | ||
OIL SEAL,SC22325 | 92049 | 92049-1048 | 1 | ||
SEAL-OIL | 92049A | 92049-1070 | 1 | ||
OIL SEAL,TB13225.5 | 92049B | 92051-005 | 1 | ||
BOLT,FLANGED,6X30 | 130 | 130G0630 | 2 | ||
BOLT-FLANGED,6X95 | 130A | 130G0695 | 2 | ||
SCREW PAN HEAD 6X8 | 220 | 220B0608 | 1 | ||
SCREW PAN HEAD 6X20 | 220A | 220B0620 | 5 | ||
SCREW PAN HEAD 6X30 | 220B | 220B0630 | 20 | ||
SCREW PAN HEAD 6X40 | 220C | 220B0640 | 7 | ||
SCREW PAN HEAD 6X60 | 220D | 220B0660 | 1 | ||
SCREW-PAN-WS-CROS | 223 | 223B0512 | 2 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 1 |
