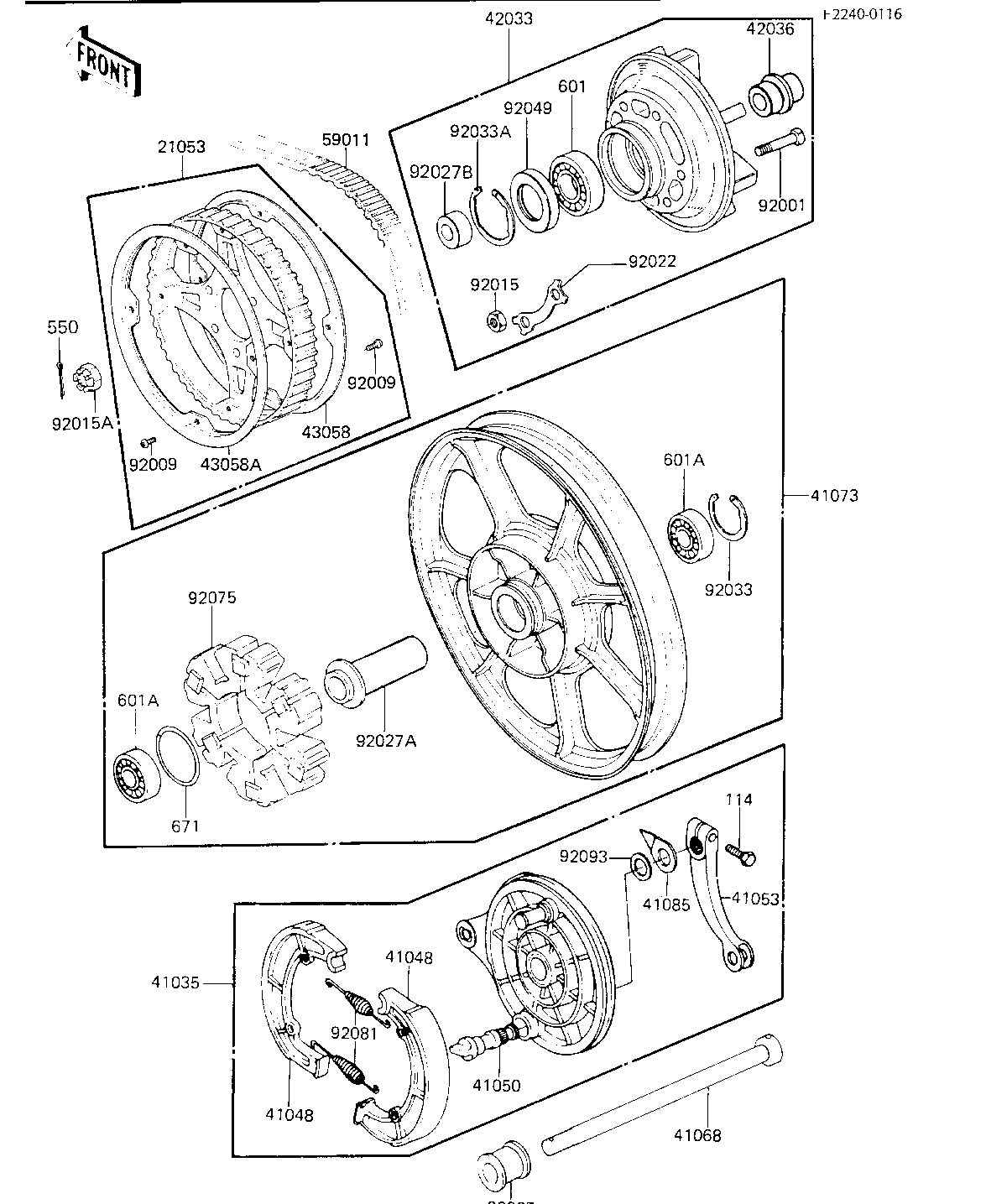

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET-ASSY,65T 21053 21053-1014 1
PANEL-ASY,BRK BLACK 41035 41035-1055 1
SHOE,BRAKE 41048 42019-012 2
CAM SHAFT,BRAKE 41050 41050-017 1
LEVER REAR BRAKE CAM 41053 42029-039 1
AXLE,RR 41068 41068-1117 1
AXLE,RR 41073 41068-1117 1
INDICATOR,BRAKE SHOE 41085 41085-004 1
COUPLING-ASSY,RR HUB 42033 42033-1051 1
SLEEVE,RR HUB L=33M/M 42036 42036-1036 1
RING,HUB SPROCKET 43058 43058-1018 1
RING,REAR HUB SPROCKE 43058A 43058-1033 1
BELT,DRIVE,137T 59011 59011-1012 1
BOLT 92001 92001-161 6
SCREW,5X10 92009 92009-1167 8
NUT 10MM 92015 42045-005 6
NUT CASTLE,16MM 92015A 92015-055 1
WASHER,LOCK 92022 92022-1212 3
COLLAR,AXLE,L=28M/M 92027 92027-1226 1
COLLAR,RR WHEEL BRG 92027A 92027-1267 1
COLLAR,L=39.5 92027B 92027-1514 1
CIRCLIP,47M/M 92033 92033-1042 1
CIRCLIP,62M/M 92033A 92033-1044 1
OIL SEAL 92049 92050-027 1
SHOCK DAMPER,REAR HUB 92075 42014-033 1
SPRING,BRAKE SHOE 92081 41049-012 2
DUST SHIELD-BRAKE CAM 92093 41051-003 1
BOLT HEX HEAD 8X28 114 114G0828 1
PIN-COTTER,4.0X35 550 550D4035 1
BALL BEARING,#6206 601 601B6206 1
BRG,BALL,#6303ZZC3 601A 601B6303ZZ 2
"0" RING,65MM 671 671B2565 1
