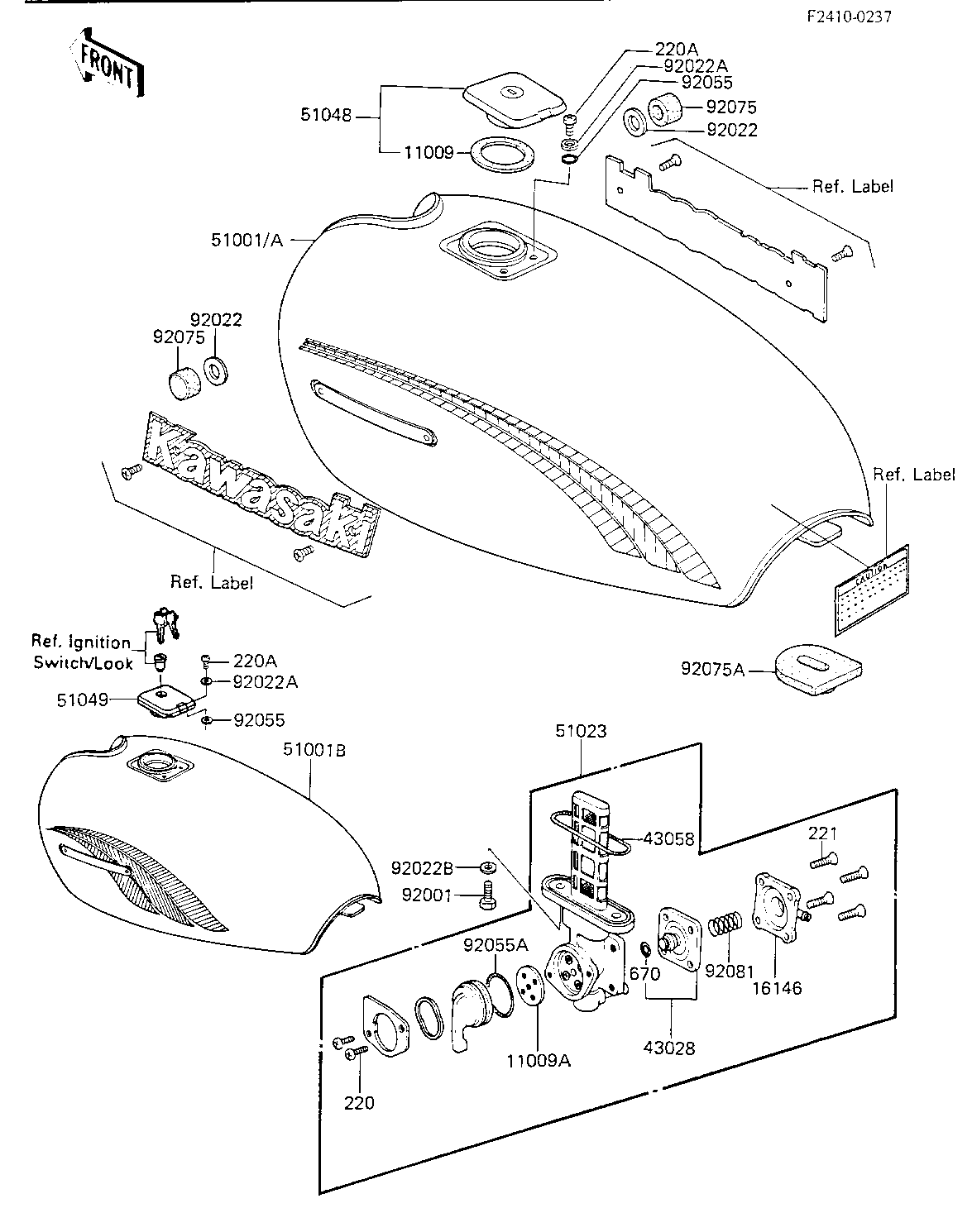

1984 KZ750-K2 (Canada Only) - FUEL TANK
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FUEL TAP | 11009A | 11009-1188 | 1 | ||
COVER ASSY,FUEL TAP | 16146 | 16146-1009 | 1 | ||
DIAPHRAGM VALVE ASSY | 43028 | 43028-1021 | 1 | ||
"O" RING | 43058 | 51039-003 | 1 | ||
TANK-COMP-FUEL,EBONY | 51001B | 51001-5428-H8 | 1 | ||
TAP ASSY,FUEL | 51023 | 51023-1030 | 1 | ||
CAP,TANK-FUEL | 51049 | 51049-1058 | 1 | ||
BOLT,6X20,FUEL TAP | 92001 | 92001-1091 | 2 | ||
WASHER-PL-10.5X26X2.3 | 92022 | 92022-044 | 2 | ||
WASHER,PLAIN | 92022A | 92022-1038 | 2 | ||
WASHER-PLAIN | 92022B | 92022-183 | 2 | ||
"0" RING | 92055 | 92055-1023 | 2 | ||
"0" RING,FUEL TAP LEV | 92055A | 92055-1085 | 1 | ||
DAMPER RUBBER,FL TANK | 92075 | 92075-125 | 2 | ||
DAMPER RUBBER FUEL TA | 92075A | 92075-295 | 1 | ||
SPRING,DIAPHRAGM VALV | 92081 | 92081-1240 | 1 | ||
SCREW PAN HEAD 3X8 | 220 | 220B0308 | 2 | ||
SCREW PAN HEAD 5X10 | 220A | 220B0510 | 2 | ||
SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 4 | ||
"O" RING,4MM | 670 | 670B1504 | 1 |
