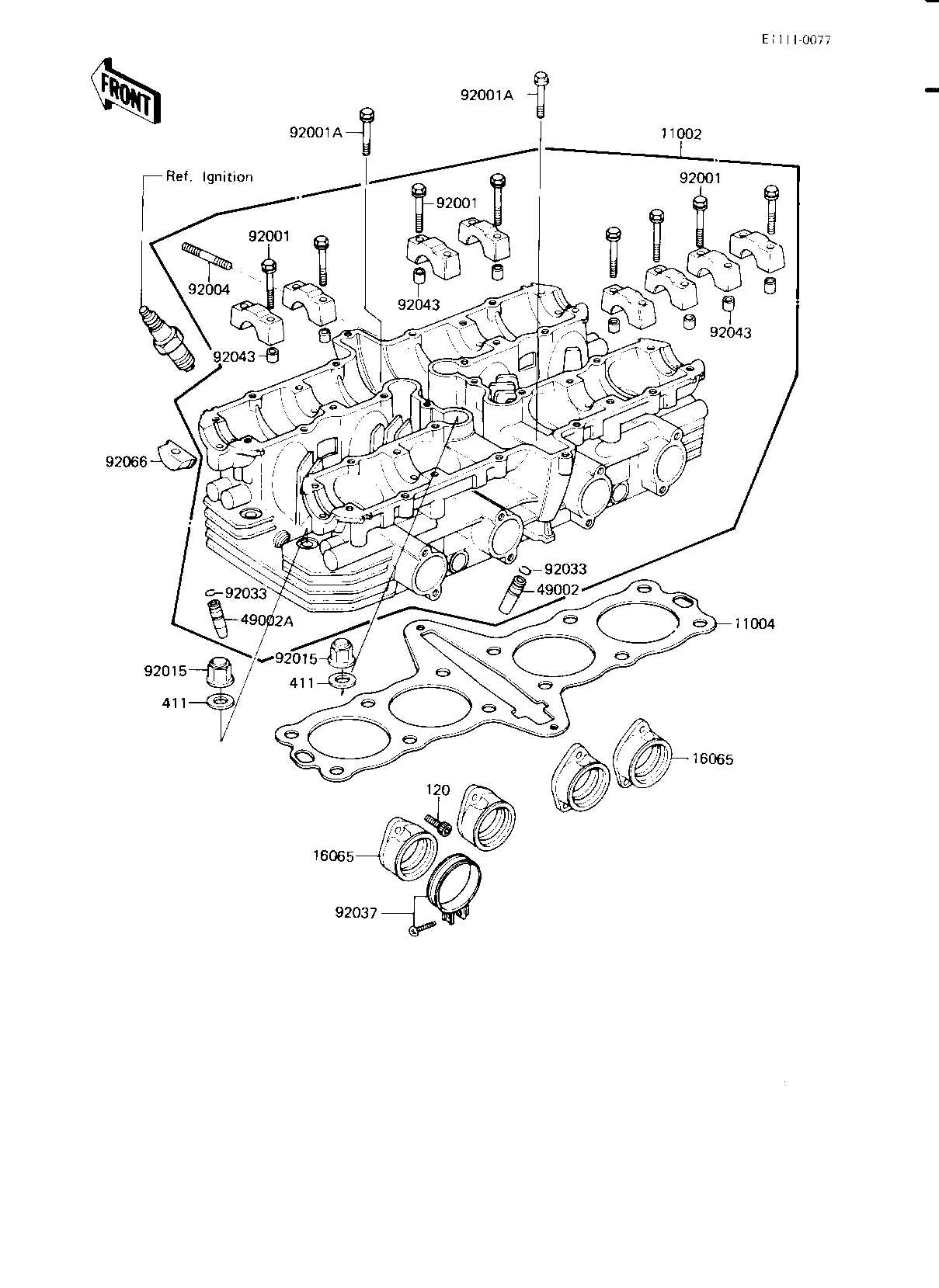

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD ASSY CYLINDER 11002 11002-5033 1
GASKET-HEAD,CYLINDER 11004 11004-1107 1
HOLDER-CARBURETOR 16069 16065-1132 4
GUIDE,INLET VALVE 49002 12013-009 4
GUIDE,EXHAUST VALVE 49002A 49002-1002 4
BOLT,FLANGED,6X38 92001 92001-1105 16
BOLT,FLANGED,8X43 92001A 92001-1445 2
STUD,6X27 92004 92004-066 8
NUT,CYLINDER HEAD 92015 92015-076 12
CIRCLIP-VALVE 92033 92036-023 8
CLAMP-INLET PIPE 92037 92037-061 4
PIN-DOWEL 92043 92042-007 16
PLUG,CAMSHAFT,11.35X1 92066 92066-1111 4
BOLT-SOCKET,6X16,BLAC 120 120S0616 8
WASHER PLAIN 10MM 411 411B1000 12
