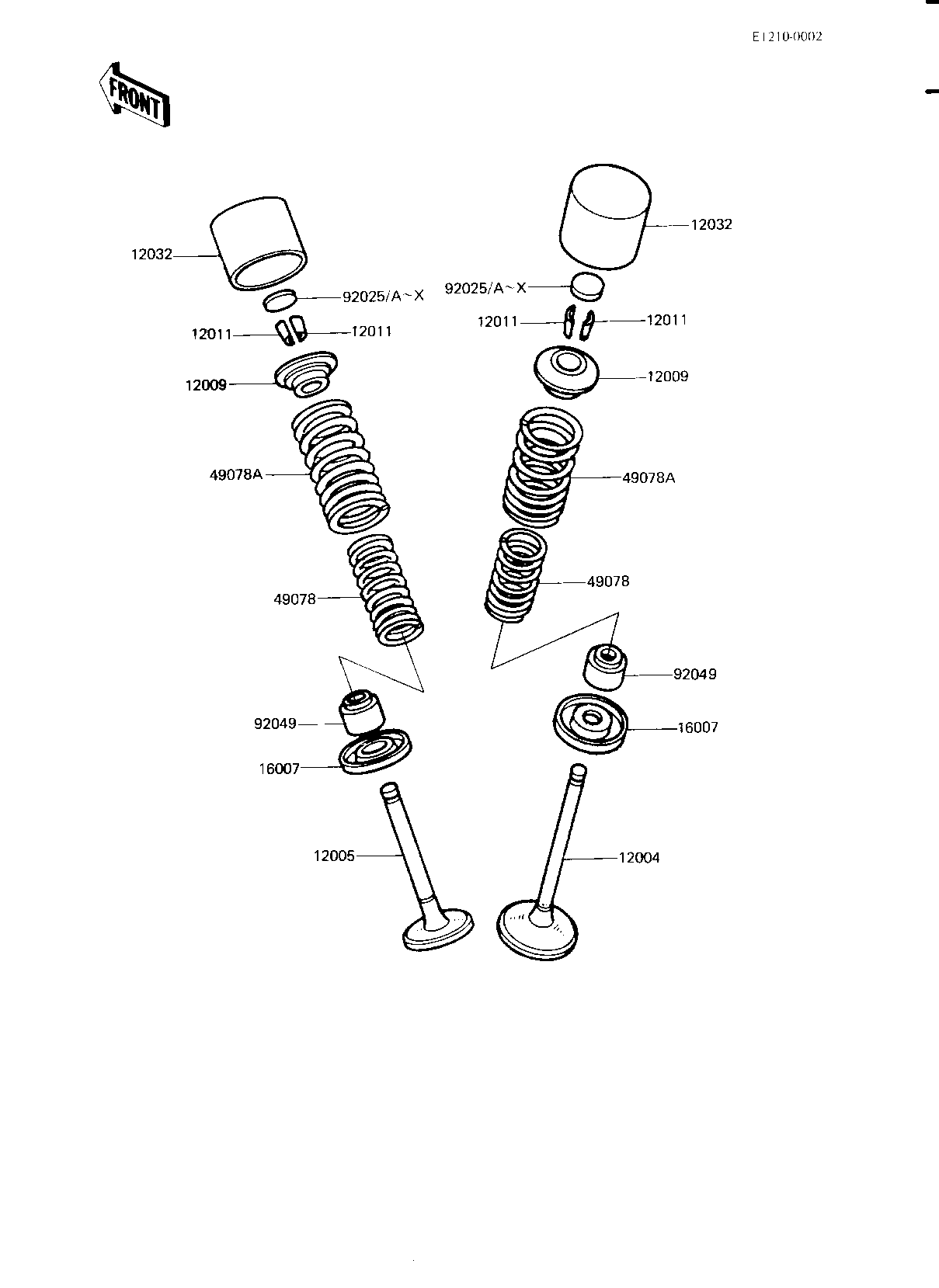

1983 KZ750-L3 - VALVES

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-1058 4
VALVE,EXHAUST 12005 12005-1006 4
RETAINER,VALVE SPRING 12009 12009-008 8
SPLIT KEEPER 12011 12011-004 16
TAPPET 12032 12032-1001 8
UNAVAILABLE IN PRICE BOOK 16007 16007-1204 8
SPRING,VALVE,INNER 49078 49078-1001 8
SPRING,VALVE,OUTER 49078A 49078-1002 8
SHIM,2.007 92025 92025-1090 AR
SHIM,2.05T 92025A 92025-1091 AR
SHIM,2.10T 92025B 92025-1092 AR
SHIM,2.15T 92025C 92025-1093 AR
SHIM,2.20T 92025D 92025-1094 AR
SHIM,2.25T 92025E 92025-1095 AR
SHIM,2.30T 92025F 92025-1096 AR
SHIM,2.35T 92025G 92025-1097 AR
SHIM,2.40T 92025H 92025-1098 AR
SHIM,2.45T 92025I 92025-1099 AR
SHIM,2.50T 92025J 92025-1100 AR
SHIM T2.55 92025K 92025-1101 AR
SHIM,2.60T 92025L 92025-1102 AR
SHIM,2.65T 92025M 92025-1103 AR
SHIM,2.70T 92025N 92025-1104 AR
SHIM,2.75T 92025O 92025-1105 AR
SHIM,2.80T 92025P 92025-1106 AR
SHIM,2.85T 92025Q 92025-1107 AR
SHIM,2.90T 92025R 92025-1108 AR
SHIM,2.95 92025S 92025-1109 AR
SHIM,3.00T 92025T 92025-1110 AR
SHIM,3.05T 92025U 92025-1111 AR
SHIM,3.10T 92025V 92025-1112 AR
SHIM,3.15T 92025W 92025-1113 AR
SHIM,3.20T 92025X 92025-1114 AR
OIL SEAL,RV37129.5 92049 92049-016 8
