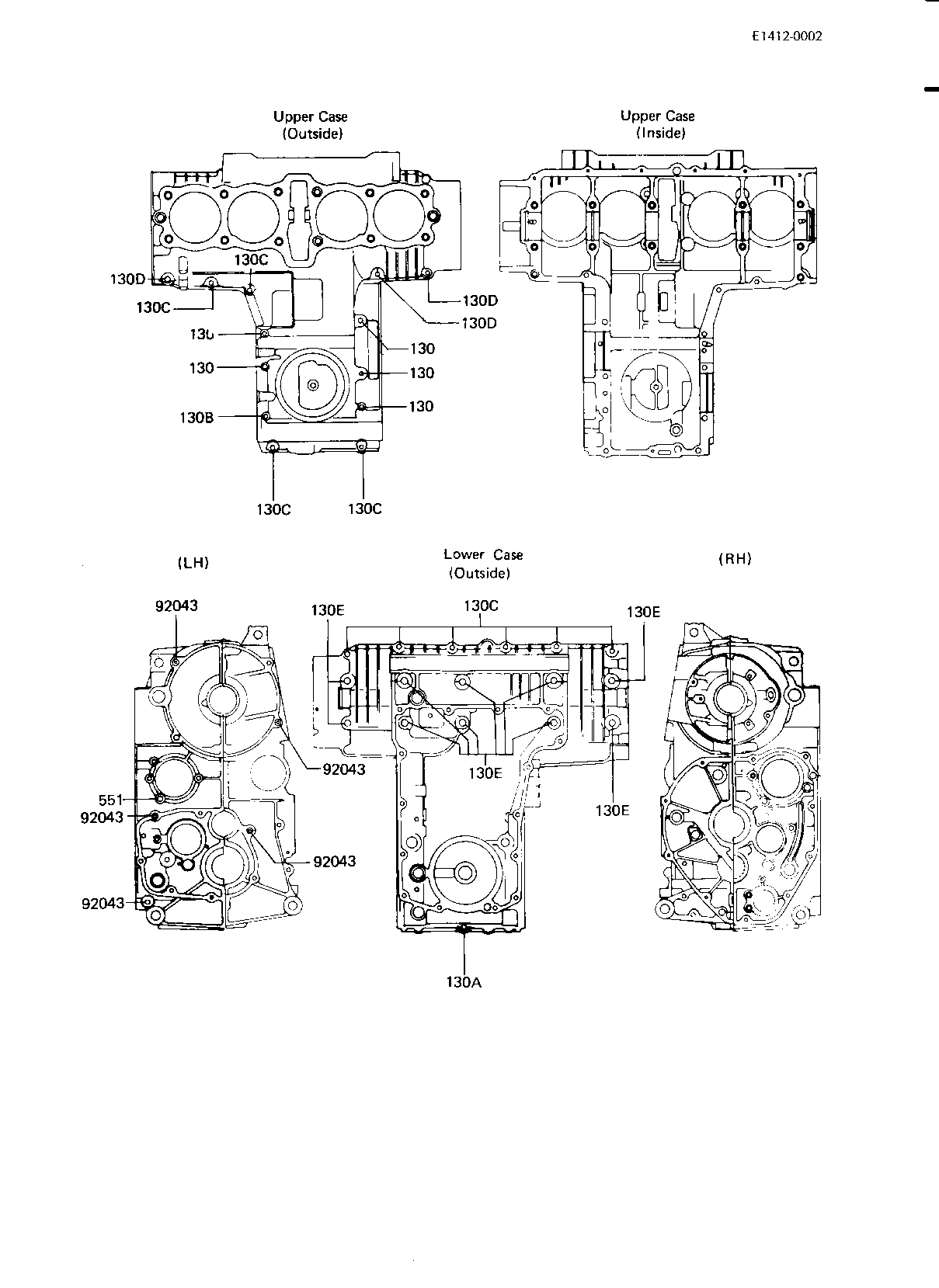

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-DOWEL 92043 92042-007 5
BOLT-FLANGED,6X100 130 130G06100 5
BOLT-FLANGED,6X105 130A 130G06105 1
BOLT-FLANGED,6X115 130B 130G06115 1
BOLT,FLANGED,6X40 130C 130G0640 9
BOLT-FLANGED,6X50 130D 130G0650 1
BOLT-FLANGED,8X95 130E 130P0895 10
PIN,DOWEL,6X14 551 551A0614 1
