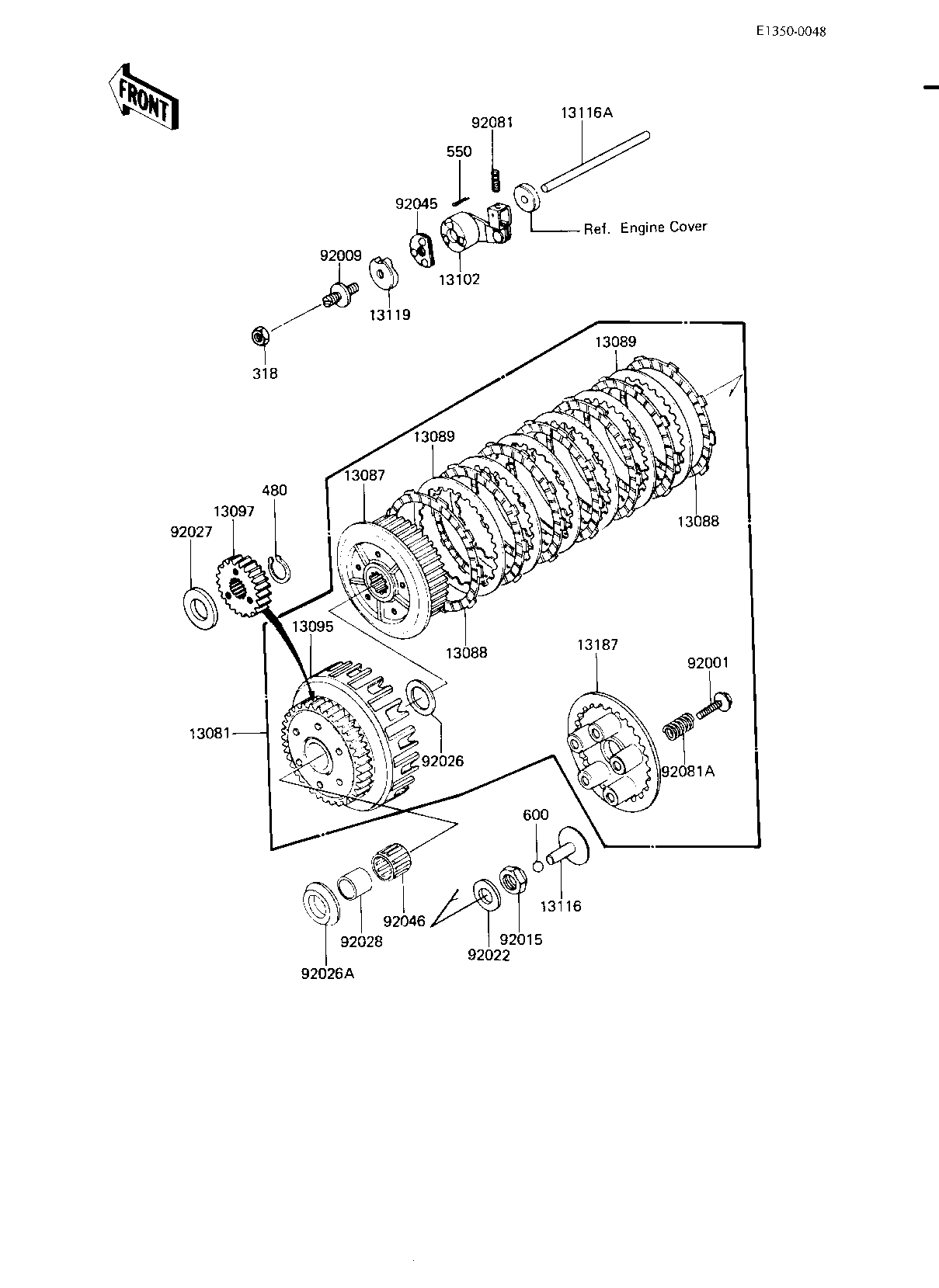

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLUTCH-ASSY | 13081 | 13081-1034 | 1 | ||
| HUB,CLUTCH | 13087 | 13087-043 | 1 | ||
| PLATE,CLUTCH FRICTION | 13088 | 13088-030 | 7 | ||
| PLATE,CLUTCH STEEL | 13089 | 13089-022 | 6 | ||
| HOUSING,CLUTCH | 13095 | 13095-1033 | 1 | ||
| GEAR,2ND SHAFT,29T | 13097 | 13121-037 | 1 | ||
| RELEASE,CLUTCH | 13102 | 13102-1008 | 1 | ||
| PUSHER,CLUTCH SPRG PL | 13116 | 13116-022 | 1 | ||
| ROD,CLUTCH PUSH | 13116A | 13116-1007 | 1 | ||
| CAM,RELEASE,CLUTCH | 13119 | 13119-1003 | 1 | ||
| PLATE,CLUTCH SPRING | 13187 | 13187-006 | 1 | ||
| BOLT,CLUTCH SPR FITT | 92001 | 92001-1066 | 5 | ||
| SCREW,SLOTTED,8M/M | 92009 | 92009-1009 | 1 | ||
| NUT,20MM | 92015 | 92015-1555 | 1 | ||
| WASHER,PLAIN,2.3X20.3 | 92022 | 92022-1116 | 1 | ||
| WASHER TH 25.5X47X2.5 | 92026 | 92026-022 | 1 | ||
| SPACER,THRUST,T=5.5MM | 92026A | 92026-116 | 1 | ||
| COLLAR,T=5MM | 92027 | 92027-263 | 1 | ||
| BUSHING,CLUTCH | 92028 | 92028-178 | 1 | ||
| BEARING,BALL,CLUTCH | 92045 | 92045-1001 | 1 | ||
| BEARING,KTV323723 | 92046 | 92046-028 | 1 | ||
| SPRING-CLUTCH RELEASE | 92081 | 92081-069 | 1 | ||
| SPRING,CLUTCH | 92081A | 92081-1176 | 5 | ||
| NUT 8MM | 318 | 318B0800 | 1 | ||
| CIRCLIP,22MM | 480 | 480J2200 | 1 | ||
| PIN COTTER 1.6X15 | 550 | 550D1615 | 1 | ||
| BALL STEEL 3/8' | 600 | 600A1200 | 1 |
| CLUTCH-ASSY | |
| REF # | 13081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB,CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH STEEL | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| HOUSING,CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,2ND SHAFT,29T | |
| REF # | 13097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELEASE,CLUTCH | |
| REF # | 13102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUSHER,CLUTCH SPRG PL | |
| REF # | 13116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,CLUTCH PUSH | |
| REF # | 13116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAM,RELEASE,CLUTCH | |
| REF # | 13119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH SPRING | |
| REF # | 13187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH SPR FITT | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SCREW,SLOTTED,8M/M | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,2.3X20.3 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER TH 25.5X47X2.5 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,THRUST,T=5.5MM | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,T=5MM | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CLUTCH | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,BALL,CLUTCH | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,KTV323723 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-CLUTCH RELEASE | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| NUT 8MM | |
| REF # | 318 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,22MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 1.6X15 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 3/8' | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
