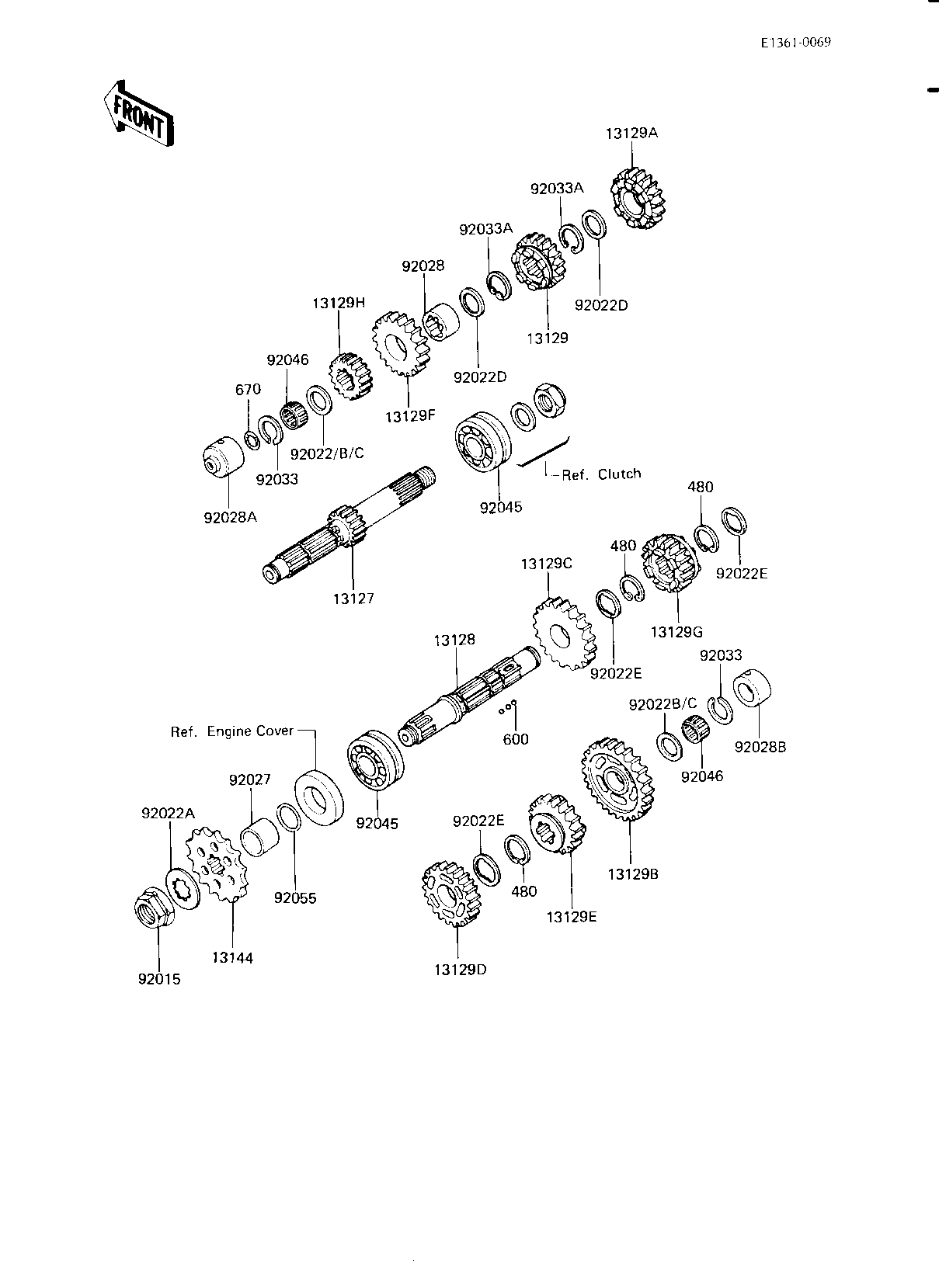

1983 KZ750-L3 - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,DRIVE 13127 13127-1018 1
SHAFT,OUTPUT 13128 13128-1012 1
3RD GEAR,DRIVE SHAFT 13129 13129-1032 1
4TH GEAR,DRIVE SHAFT 13129A 13129-1044 1
LOW GEAR,OUTPUT SHAFT 13129B 13129-1046 1
2ND GEAR,OUTPUT SHAFT 13129C 13129-1047 1
3RD GEAR,OUTPUT SHAFT 13129D 13129-1048 1
4TH GEAR,OUTPUT SHAFT 13129E 13129-1049 1
TOP GEAR,DRIVE SHAFT 13129F 13129-1200 1
TOP GEAR,DRIVEN SHAFT 13129G 13129-1201 1
2ND GEAR,DRIVE 13129H 13130-041 1
ENGINE SPROCKET,13T 13144 13144-1033 1
NUT,20MM 92015 92015-1254 1
WASHER,PLAIN 92022 92022-1026 AR
WASHER 92022A 92200-1065 1
WASHER THRUST 92022B 92022-112 2
SHIM-KICK SHAFT 92022C 92022-144 AR
WASHER PLAIN 92022D 92022-161 2
WASHER,LOCK 92022E 92024-069 3
COLLAR,ENG SPROCKET 92027 92027-288 1
BUSHING,DRV SHFT TOP 92028 92028-1007 1
BUSHING,INPUT SHAFT 92028A 92028-1150 1
BUSHING,27X34X18.6 92028B 92028-1151 1
CIRCLIP 92033 92033-015 2
CIRCLIP 92033A 92033-026 2
BEARING,BALL 92045 92045-035 2
BEARING-NEEDLE,20V271 92046 92046-1045 2
"O" RING 92055 92055-035 1
CIRCLIP,30MM 480 480J3000 3
BALL STEEL 5/32' 600 600A0500 3
"O" RING,8MM 670 670B1508 1
