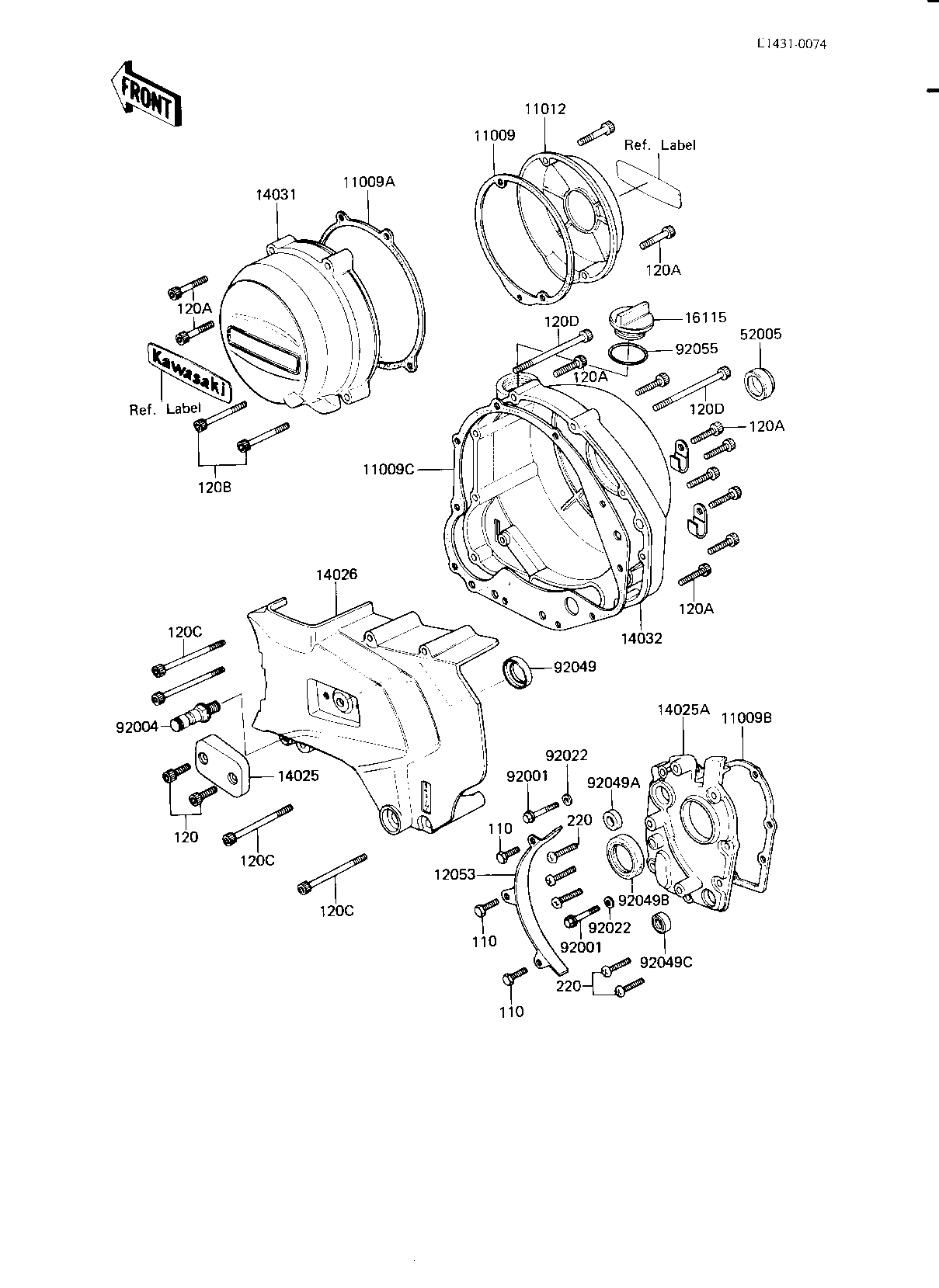

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,PULSING COIL C | 11009 | 11060-1053 | 1 | ||
| GASKET,GENERATOR COVE | 11009A | 11009-1987 | 1 | ||
| GASKET,TRANSMISSION C | 11009B | 11060-1056 | 1 | ||
| GASKET,R.H.ENG COVER | 11009C | 14046-035 | 1 | ||
| CAP,PULSING COIL | 11012 | 11012-1266 | 1 | ||
| GUIDE,CHAIN | 12053 | 12053-1006 | 1 | ||
| COVER,CLUTCH ADJUSTIN | 14025 | 14025-1249 | 1 | ||
| COVER,MISSION | 14025A | 14025-1486 | 1 | ||
| COVER-CHAIN | 14026 | 14026-1081 | 1 | ||
| COVER-GENERATOR | 14031 | 14031-1102 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-1091 | 1 | ||
| PLUG,OIL FILLER | 16115 | 16115-013 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| BOLT,HEX HEAD,6X35 | 92001 | 92001-164 | 2 | ||
| STUD,10MM,CHANGE PEDA | 92004 | 92004-1044 | 1 | ||
| WASHER OIL PUMP BANJO | 92022 | 92022-077 | 2 | ||
| OIL SEAL,CLUTCH RELES | 92049 | 92049-1003 | 1 | ||
| OIL SEAL,SD-8187 | 92049A | 92049-1017 | 1 | ||
| OIL SEAL SC325210 | 92049B | 92050-024 | 1 | ||
| OIL SEAL,TB13225.5 | 92049C | 92051-005 | 1 | ||
| "0" RING,31MM | 92055 | 92055-049 | 1 | ||
| BOLT-UPSET 6X14 | 110 | 112B0614 | 3 | ||
| BOLT,6X14 | 120 | 120P0614 | 2 | ||
| BOLT,SOCKET,6X30 | 120A | 120P0630 | 12 | ||
| BOLT,SOCKET,6X40 | 120B | 120P0640 | 2 | ||
| BOLT-SOCKET,6X70 | 120C | 120P0670 | 4 | ||
| BOLT-SOCKET,6X80 | 120D | 120P0680 | 2 | ||
| SCREW PAN HEAD 6X20 | 220 | 220B0620 | 5 |
