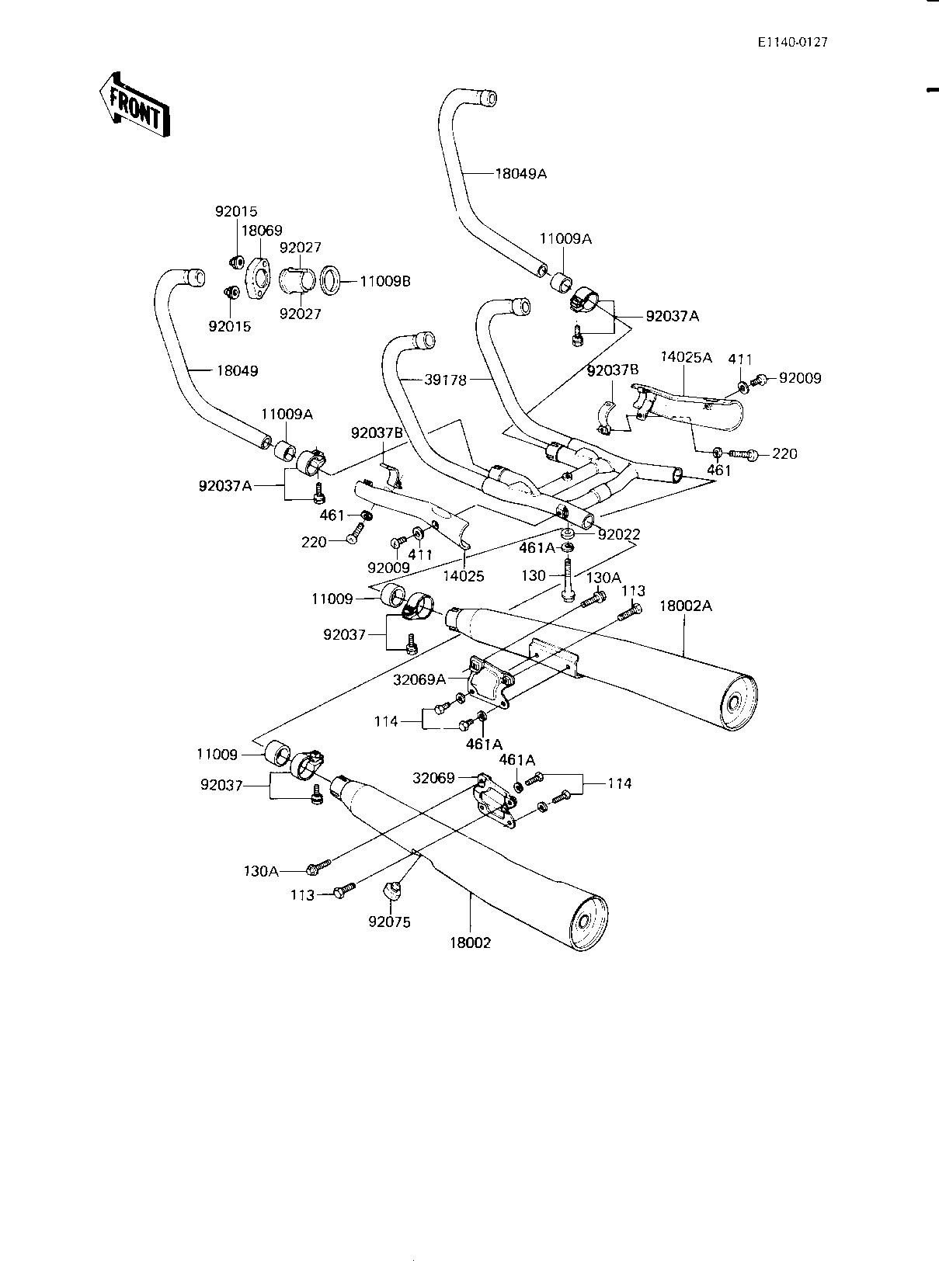

1983 KZ750-L3 - MUFFLERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MANIFOLD EXHAU 11009 11060-1068 2
GASKET,EXHAUST PIPE C 11009A 11009-1667 2
GASKET,EXHAUST PIPE H 11009B 11009-1866 4
COVER,MUFFLER,LH 14025 14025-1588 1
COVER,MUFFLER,RH 14025A 14025-1589 1
BODY-COMP-MUFFLER,LH 18002 18002-1382 1
BODY-COMP-MUFFLER,RH 18002A 18002-1383 1
PIPE-EXHAUST,#2 18049 18049-1162 1
PIPE-EXHAUST,#3 18049A 18049-1163 1
HOLDER-EXHAUST PIPE 18069 18069-1025 4
BRACKET-MUFFLER,LH 32069 32069-1106 1
BRACKET-MUFFLER,RH 32069A 32069-1107 1
MANIFOLD-COMP-EXHAUST 39178 39178-1019 1
SCREW,PAN HEAD,6X8 92009 92011-039 2
NUT-6MM 92015 92015-1078 8
WASHER-PLN,10X22X3.2 92022 92022-176 1
COLLAR,EXHAUST PIPE 92027 92027-1142 8
CLAMP,MUFFLER 92037 92037-1258 2
CLAMP,42MM 92037A 92037-1349 2
CLAMP.MUFFLER COVER 92037B 92037-1374 2
DAMPER RUBB MAIN STAD 92075 92075-015 1
BOLT-SMALL-FINE,10X35 113 113J1035 2
BOLT-SMALL-UPSET,8X16 114 115G0816 4
BOLT-FLANGED,8X65 130 130G0865 1
BOLT-FLANGED,8X35,BLA 130A 130J0835 2
SCREW PAN HEAD 6X20 220 220B0620 2
WASHER-PLAIN,6MM 411 411D0600 2
WASHER SPRING 6MM 461 461F0600 2
WASHER SPRING 8MM 461A 461F0800 5
