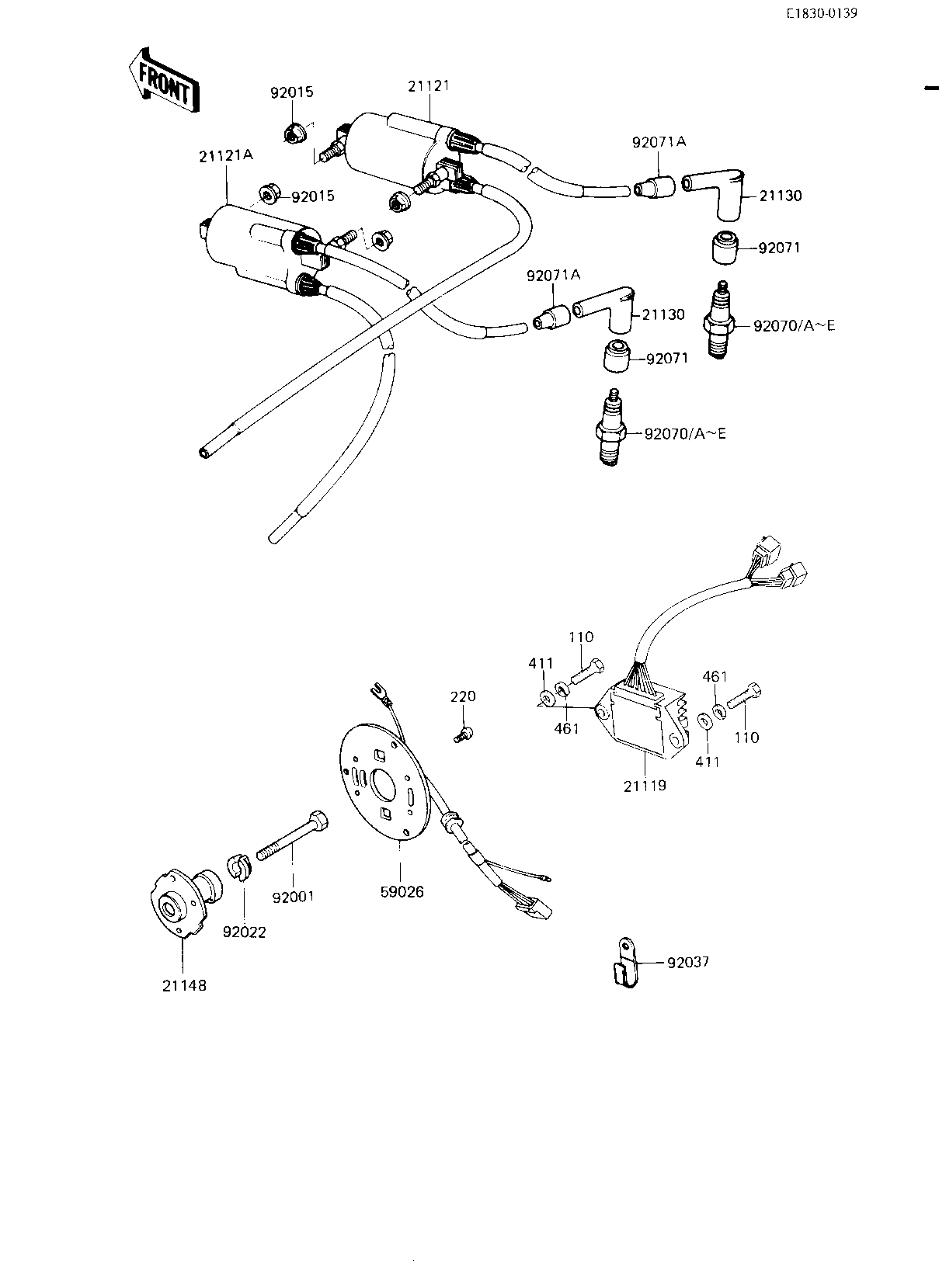

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
IGNITER | 21119 | 21119-1050 | 1 | ||
COIL,IGNITION #1.#4 | 21121 | 21121-1027 | 1 | ||
COIL,IGNITION #2.#3 | 21121A | 21121-1028 | 1 | ||
CAP-SPARK PLUG,RTFM20 | 21130 | 21130-1007 | 4 | ||
ADVANCER,AUTO TIMING | 21148 | 21148-1013 | 1 | ||
COIL-PULSING | 59026 | 59026-1019 | 1 | ||
BOLT-8X63 | 92001 | 92001-1397 | 1 | ||
NUT-6MM | 92015 | 92015-1078 | 4 | ||
WASHER,SPARK ADVANCER | 92022 | 92022-244 | 1 | ||
CLAMP,WIRING HARNESS | 92037 | 21126-008 | 2 | ||
SPARK PLUG B7ES | 92070 | B7ES | 4 | US | |
SPARK PLUG B8ES | 92070A | B8ES | 4 | US | |
SPARK PLUG BR8ES | 92070D | BR8ES | 4 | CN | |
GROMMET-PLUG CAP,A | 92071 | 21131-004 | 4 | ||
GROMMET,SPARK PLG CAP | 92071A | 21132-005 | 4 | ||
BOLT-UPSET | 110 | 112G0618 | 2 | ||
SCREW PAN HEAD 5X12 | 220 | 220B0512 | 3 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
WASHER SPRING 6MM | 461 | 461F0600 | 2 |
