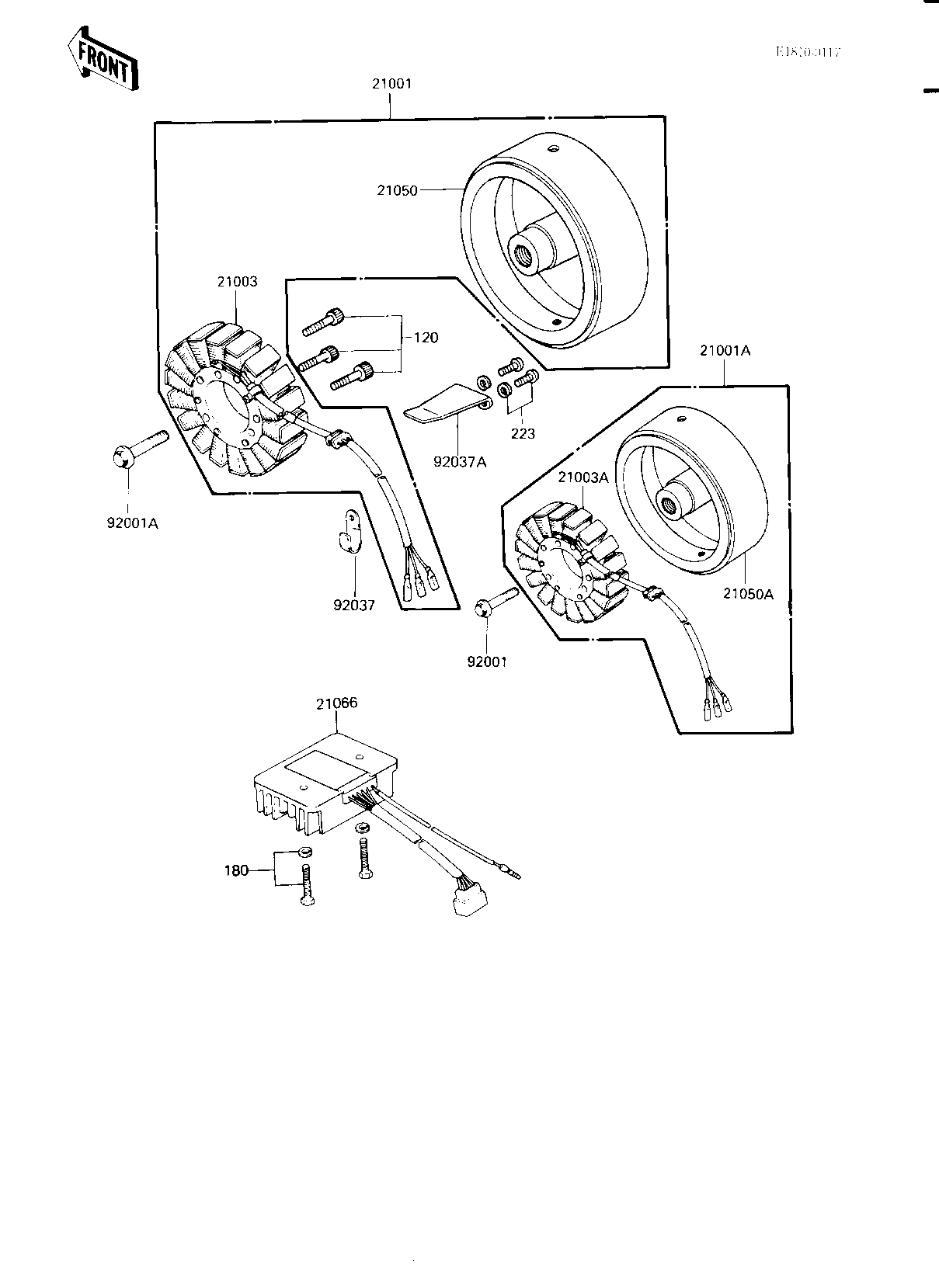

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-1083 1
STATOR 21003A 21003-1083 1
FLYWHEEL,MAGNETO 21050 21050-1015 1
FLYWHEEL,GENERATOR 21050A 21050-1041 1
REGULATOR-VOLTAGE 21066 21066-1027 1
BOLT,12X40 92001 92001-1146 1 (K2750EE096816-)
BOLT,10X40 92001A 92001-1201 1 (-K2750EE096815)
CLAMP,WIRING HARNESS 92037 21126-008 1
CLAMP,GENERATOR WIRE 92037A 92037-1122 1
BOLT-SOCKET,5X30 120 120P0530 3
BOLT-UPSET-WS,6X25 180 180B0625 2
SCREW-PAN-WS-CROS 223 223B0512 2
