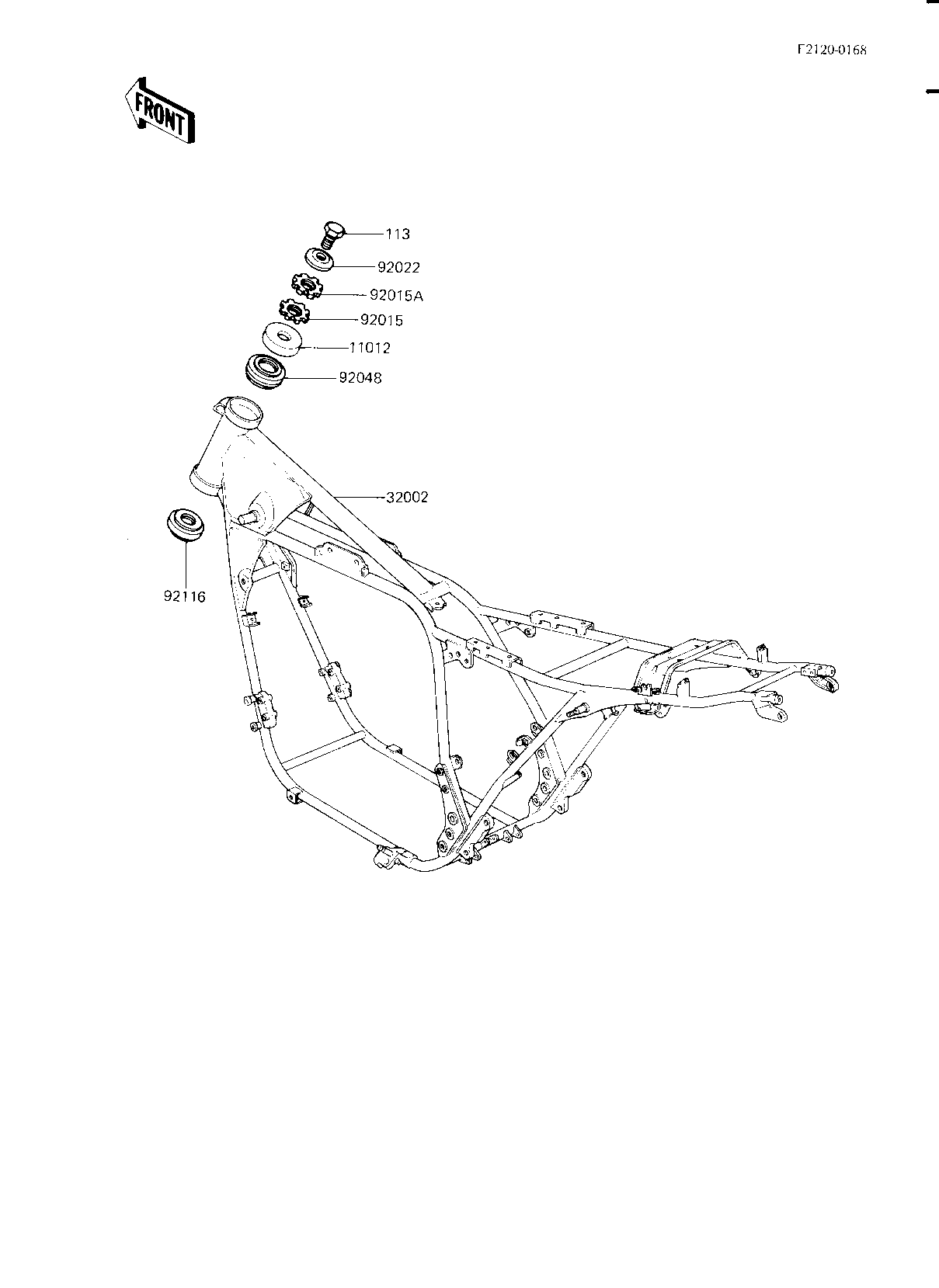

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING STEM 11012 46098-017 1
FRAME-COMP 32002 32002-1540 1
NUT 92015 92015-1128 1
NUT 92015A 92015-1129 1
WASHER 92022 92022-1229 1
BEARING,STEERING STEM 92048 92047-017 1
BRG,ROLLER,HR320/28XJ 92116 92116-1009 1
BOLT-SMALL-FINE 113 113G1425 1
