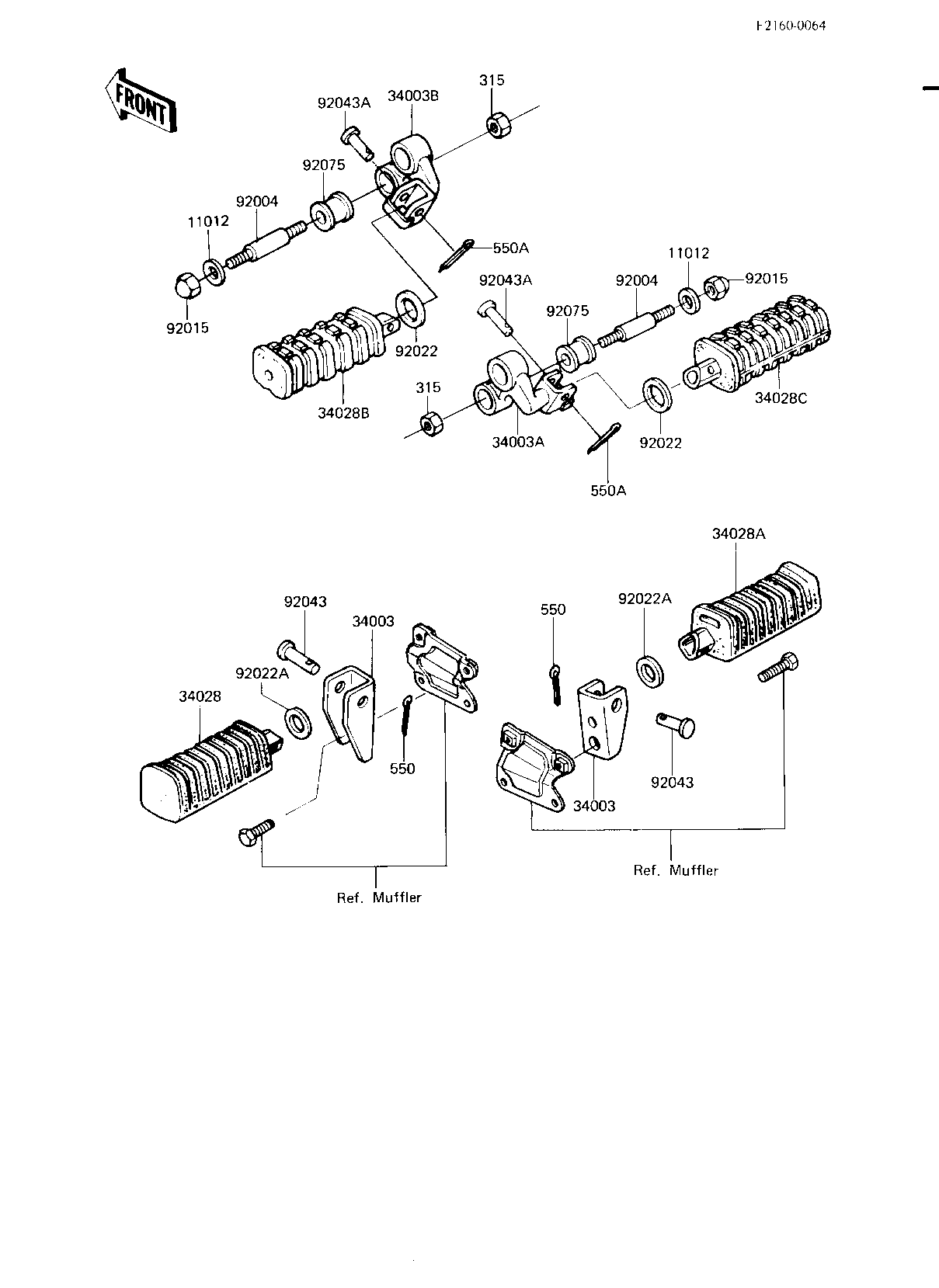

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEP,BLACK 11012 11012-1246 4
HOLDER,REAR FOOTREST 34003 34003-1025 2
HOLDER-STEP,FR,RH 34003A 34003-1065 1
HOLDER-STEP,FR,LH 34003B 34003-1066 1
STEP,RR,LH,BLACK 34028 34028-1041 1
STEP,RR,RH,BLACK 34028A 34028-1042 1
STEP-ASSY,FR,RH 34028B 34028-1018 1
STEP-ASSY,FR,RH 34028C 34028-1018 1
STUD,FOOTREST BAR FIT 92004 92004-048 4
NUT,CAP,LOCK,8MM,BLAC 92015 92015-1209 4
WASHER,25X36X2.3,BLAC 92022 92022-1319 2
WASHER,22.5X30X2.6,BL 92022A 92022-1320 2
PIN 92043 92043-1464 2
PIN,FOOTREST BAR FIT 92043A 92043-115 2
DAMPER RUBBER,FOOTRES 92075 92075-293 4
NUT 10MM 315 315B1000 4
PIN,COTTER,2.0X12 550 550D2012 2
PIN,COTTER,2.5X15 550A 550D2515 2
