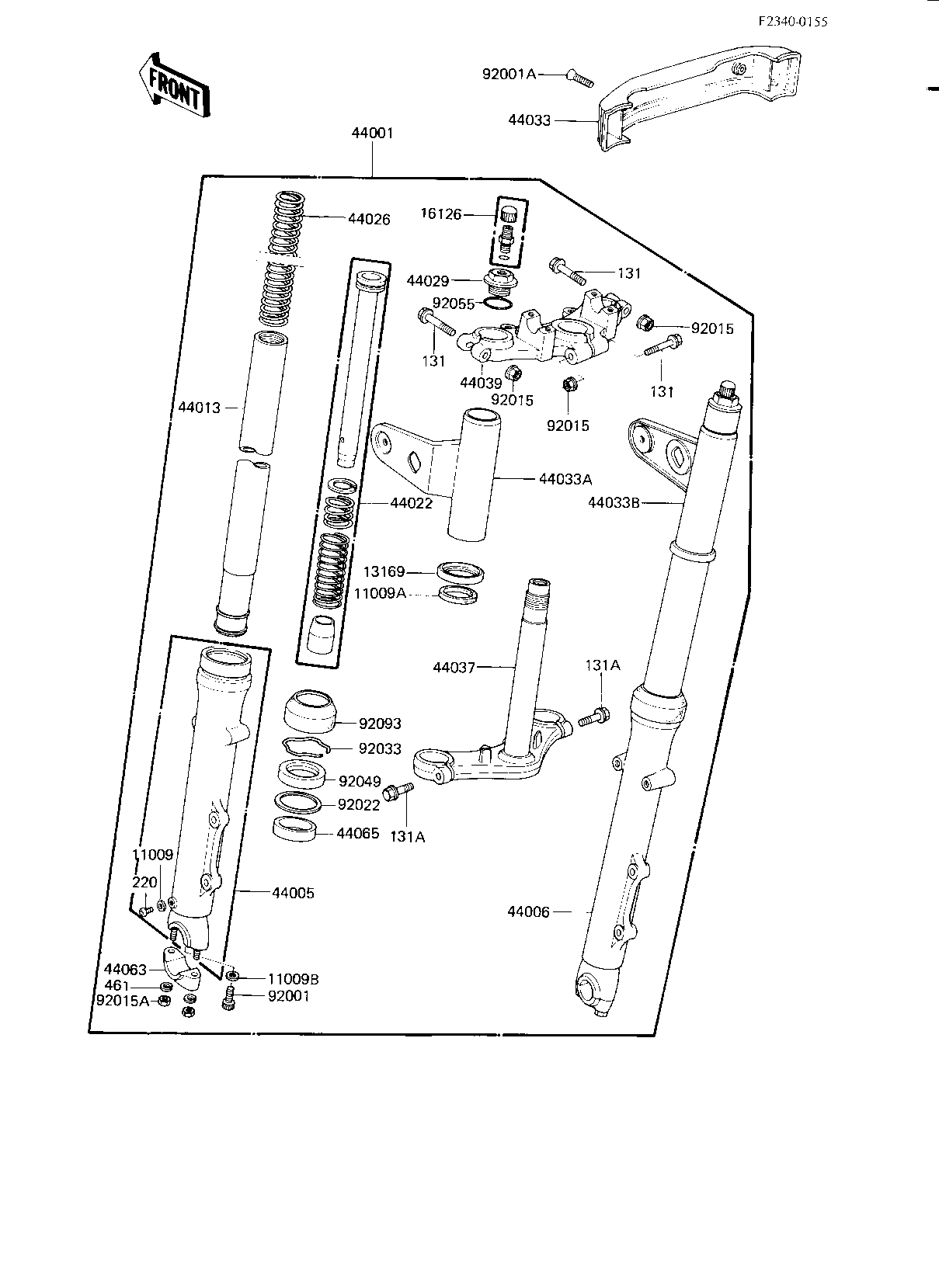

1983 KZ750-L3 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PLG 11009 44045-002 2
GASKET,FORK COVER 11009A 44045-038 2
GASKET,FORK CYLINDER 11009B 44045-057 2
PLATE,FORK COVER,LWR 13169 13169-1849 2
VALVE AIR 16126 16126-1052 2
FORK-FRONT 44001 44001-1442 1
TUBE,LH,FORK OUTER 44005 44005-1093 1
TUBE,RH,FORK OUTER 44006 44006-1093 1
PIPE-FORK INNER 44013 44013-1112 2
CYLINDER-FORK 44022 44022-1079 2
SPRING-FRONT FORK 44026 44026-1188 2
SEAT-FORK SPRING 44029 44029-1039 2
COVER-FORK 44033 44033-1084 1
COVER-FORK,LH,F.BLACK 44033A 44033-1131 1
COVER-FORK,RH,F.BLACK 44033B 44033-1132 1
HOLDER-FORK UNDER 44037 44037-1089 1
HOLDER-FORK UPPER 44039 44039-1074 1
HOLDER-FRONT AXLE 44063 44063-1006 2
BUSHING-FRONT FORK 44065 44065-1016 2
BOLT-FORK CYLINDER 92001 44041-040 2
SCREW-CSK-RD-CROS 92001A 222C0518 2
NUT,FLANGED,8MM 92015 92015-1408 3
NUT,U,8MM,BLACK 92015A 92015-1205 4
WASHER 92022 92022-1275 2
RING-SNAP,FORK OIL 92033 92033-1100 2
SEAL-OIL,FRONT FORK 92049 92049-1101 2
"O" RING,FORK TOP 92055 92055-1012 2
DUST SHIELD,FORK 92093 92093-1037 2
BOLT,FLANGED,8X55 131 130G0855 3
BOLT-FLANGED,12X35,BL 131A 131J1235 2
SCREW,4X8 220 92009-1324 2
WASHER-SPRING,8MM,BLA 461 461K0800 4
