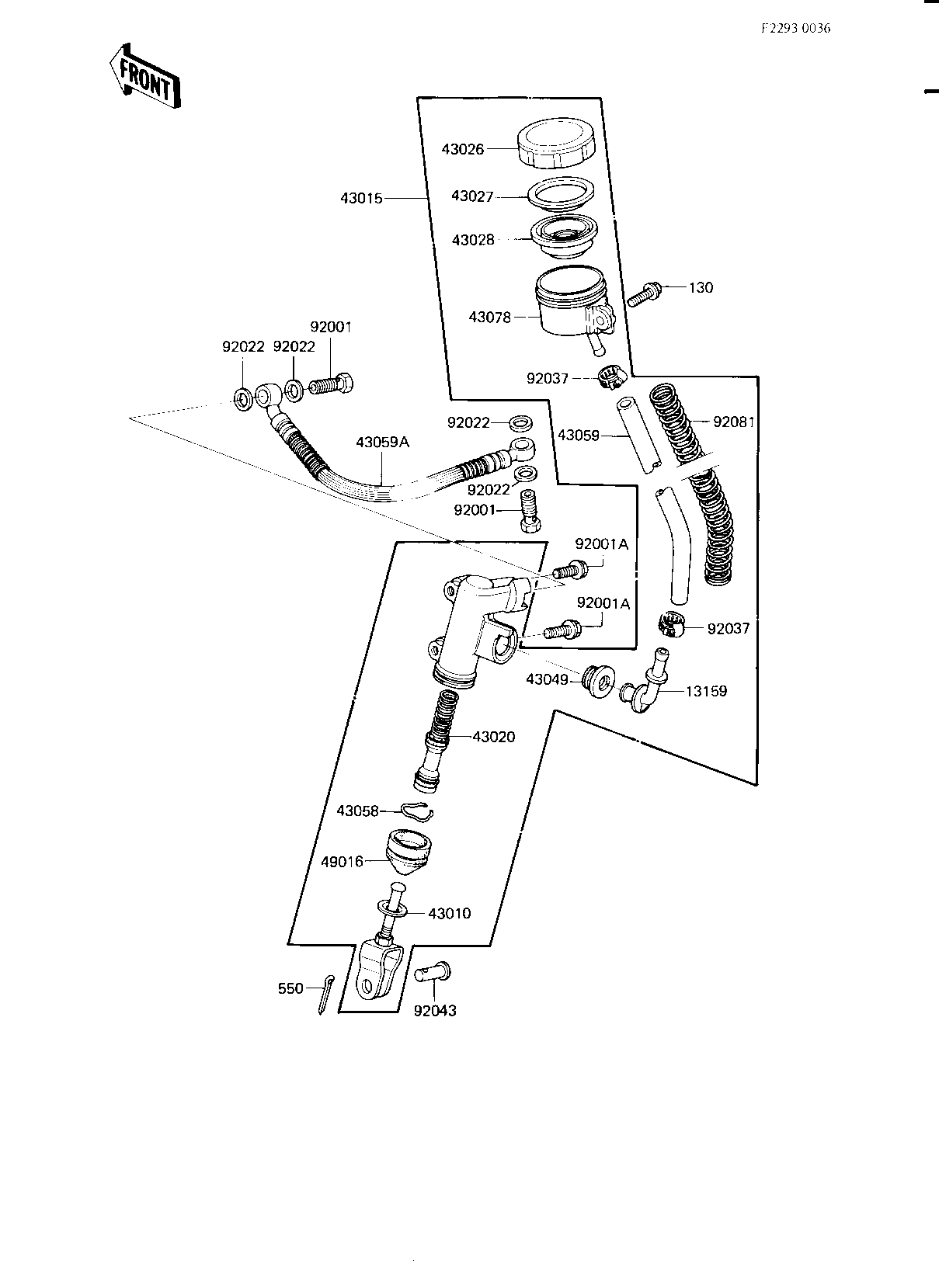

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CONNECTOR | 13159 | 13159-1005 | 1 | ||
ROD-ASSY-BRAKE,RR | 43010 | 43010-5006 | 1 | ||
CYLINDER-ASSY-MASTER, | 43015 | 43015-1275 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1035 | 1 | ||
CAP-BRAKE | 43026 | 43026-1016 | 1 | ||
PLATE,DIAPHRAGM | 43027 | 43027-1005 | 1 | ||
DIAPHRAGM | 43028 | 43028-1016 | 1 | ||
PACKING | 43049 | 43049-1008 | 1 | ||
RING,DUST SEAL | 43058 | 43058-004 | 1 | ||
HOSE,BRAKE,8X12X163 | 43059 | 43059-1066 | 1 | ||
HOSE-BRAKE,L=430 | 43059A | 43059-1191 | 1 | ||
RESERVOIR | 43078 | 43078-1008 | 1 | ||
COVER-SEAL,BRAKE PIST | 49016 | 49016-1048 | 1 | ||
BOLT,OIL,L=23 | 92001 | 92002-1888 | 2 | ||
BOLT,FLANGED,8X28,BLA | 92001A | 92001-1508 | 2 | ||
WASHER-OIL BOLT | 92022 | 43067-001 | 4 | ||
CLAMP,BRAKE HOSE | 92037 | 92037-1386 | 2 | ||
PIN | 92043 | 92043-1013 | 1 | ||
SPRING HOSE PROTECTER | 92081 | 92081-1335 | 1 | ||
BOLT,FLANGED,6X20 | 130 | 130B0620 | 1 | ||
PIN COTTER 2.0X15 | 550 | 550D2015 | 1 |
