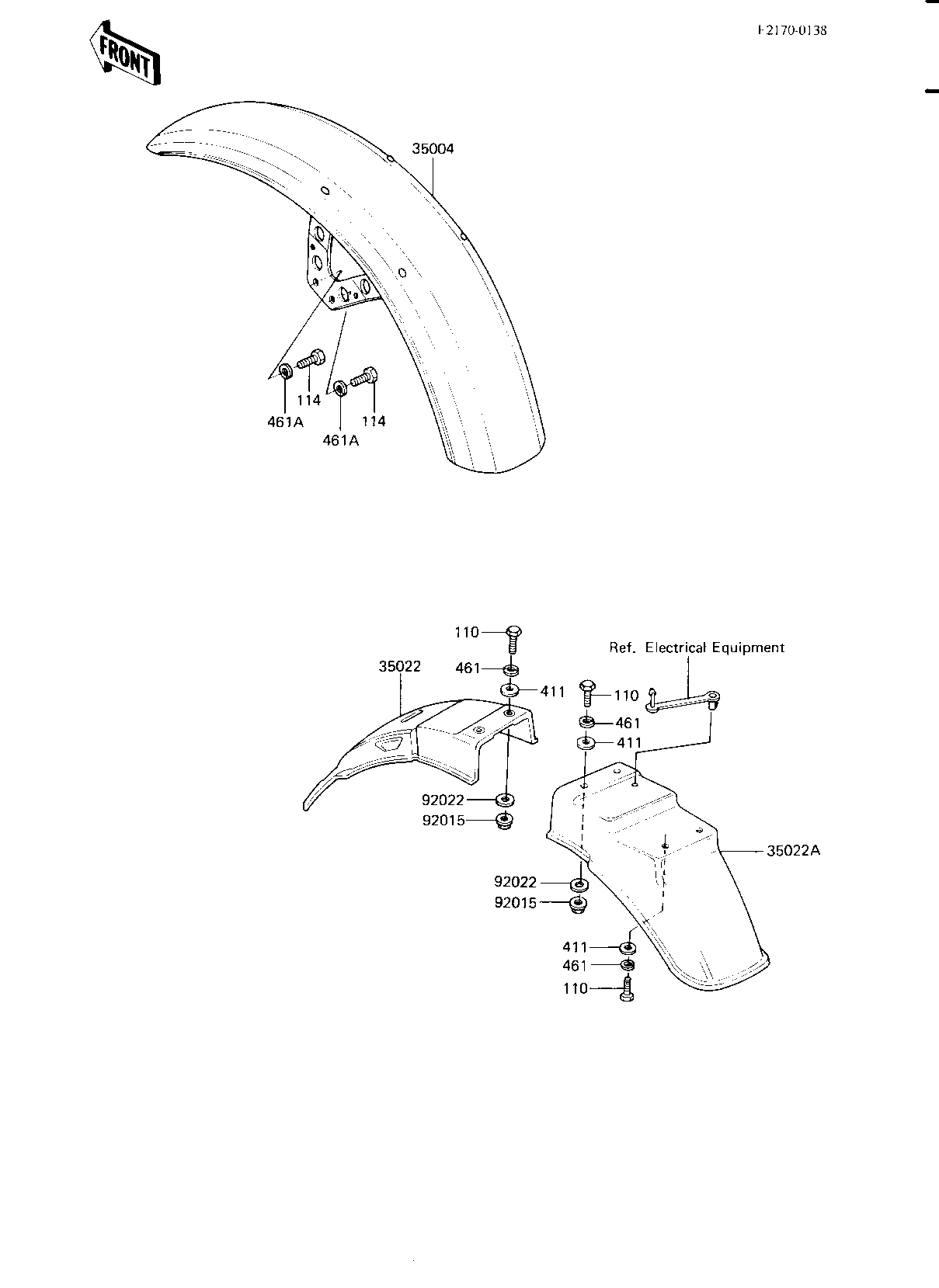

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,EBONY 35004 35004-1083-H8 1
FENDER-RR 35022 35022-1046 1
FENDER-RR,BLACK 35022A 35022-1047-6Z 1
NUT-6MM 92015 92015-1078 4
WASHER 6.5X20X1.6T 92022 92022-125 4
BOLT-UPSET,6X16 110 112G0616 6
BOLT-SMALL-UPSET,8X16 114 115G0816 4
WASHER PLAIN 6MM 411 411B0600 6
WASHER SPRING 6MM 461 461F0600 6
WASHER SPRING 8MM 461A 461F0800 4
