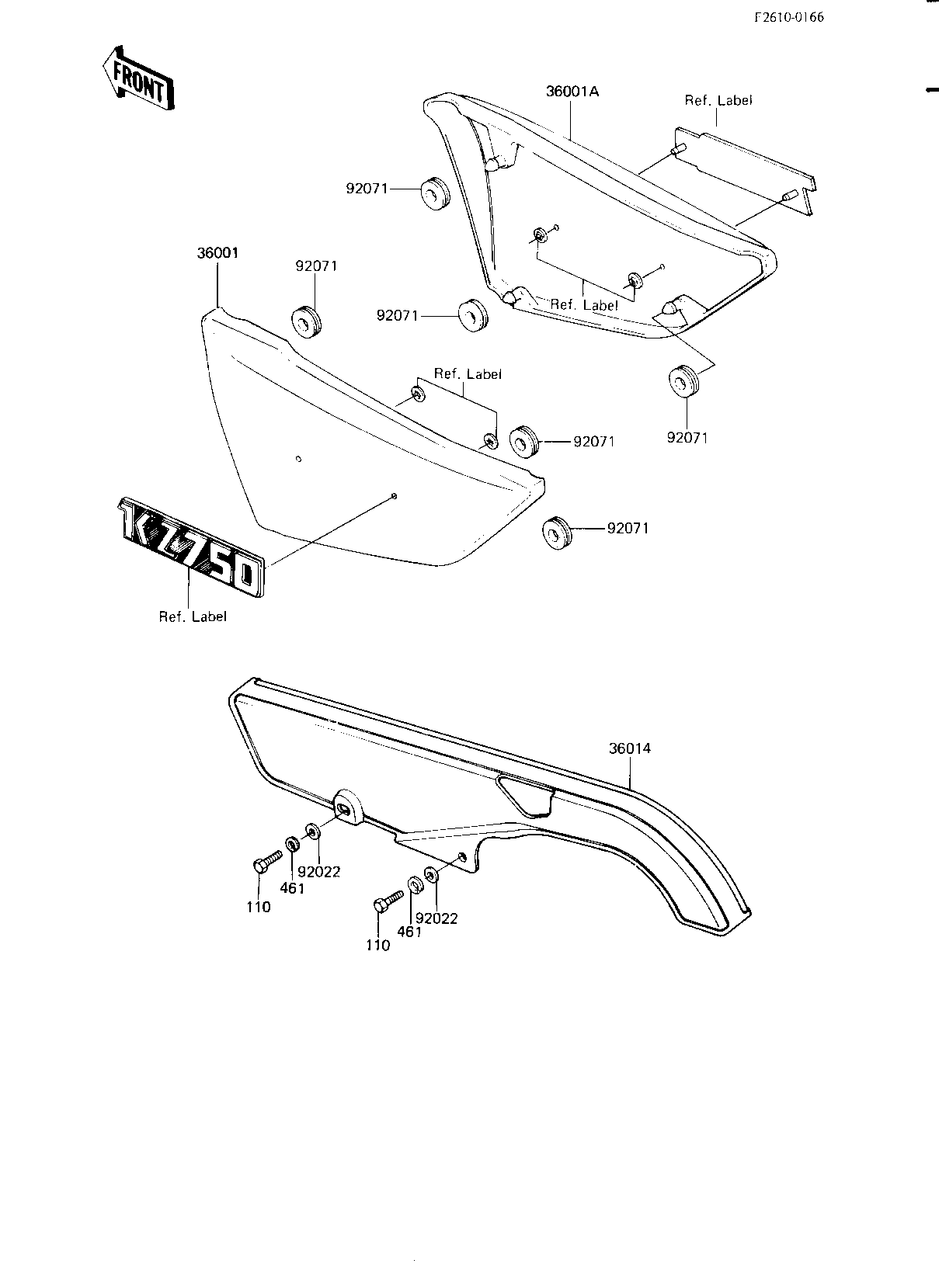

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,EBONY 36001 36001-1154-H8 1
COVER-SIDE,RH,EBONY 36001A 36001-1155-H8 1
CASE-CHAIN 36014 36014-1061 1
WASHER,6.5X20X1.6.BLA 92022 92022-1346 2
GROMMET 92071 92071-056 6
BOLT-UPSET,6X16 110 112C0616 2
WASHER-SPRING,6MM,BLA 461 461K0600 2
