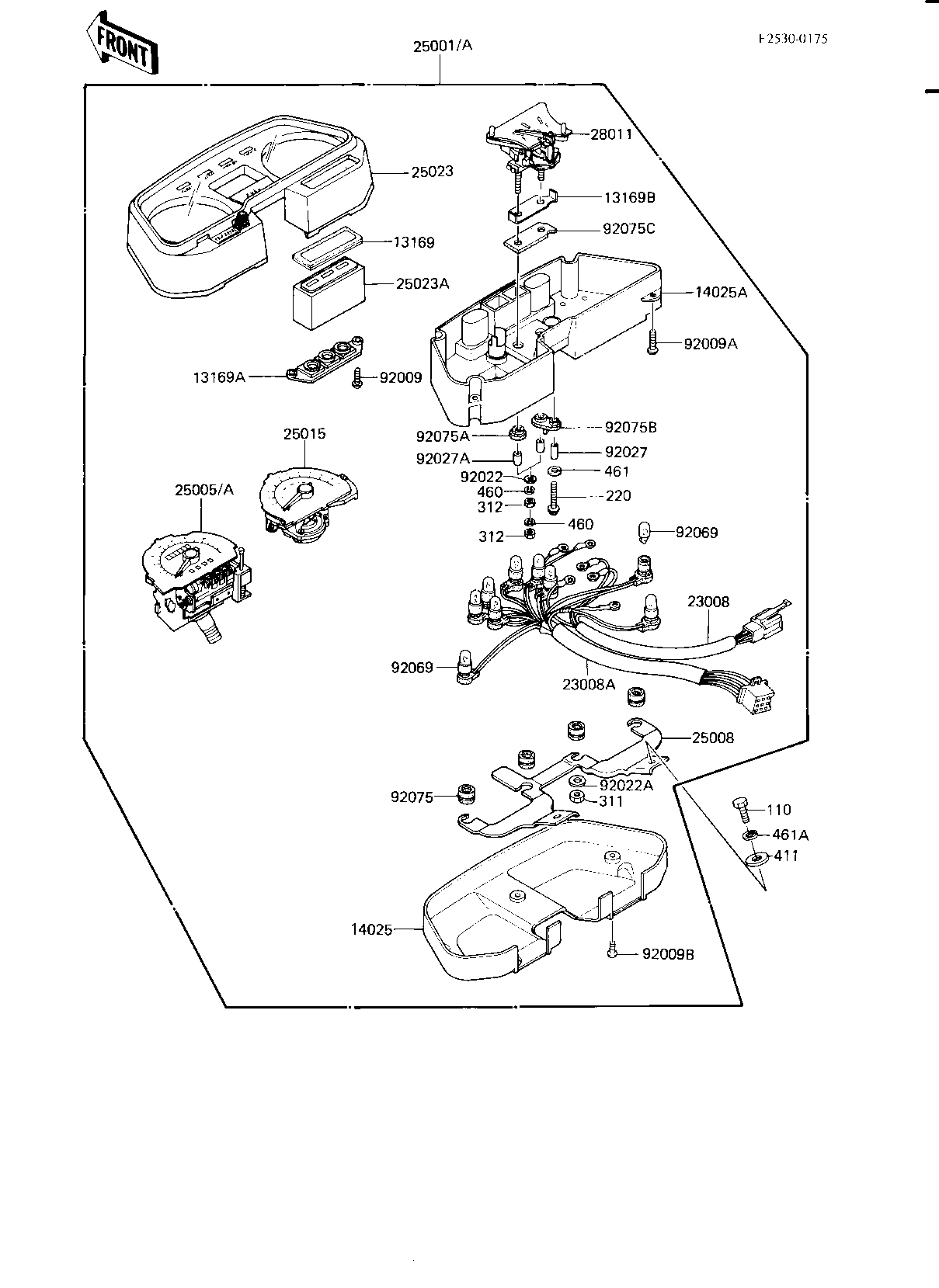

1983 KZ750-L3 - METERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,PILOT BOX 13169 13169-1508 1
PLATE,BULB SOCKET 13169A 13169-1556 1
PLATE,FUEL METER 13169B 13169-1593 1
COVER,METER,LWR 14025 14025-1473 1
COVER,METER UNIT 14025A 14025-1600 1
SOCKET-ASSY,FUEL&OIL 23008 23008-1178 1
SOCKET-ASSY,METER 23008A 23008-1181 1
METER-ASSY,MPH 25001 25001-1397 1
METER-ASSY,MPH 25001 25001-1397 1 US
METER-ASSY,KPH (Canada) 25001A 25001-1413 1 CN
UNAVAILABLE IN PRICE BOOK 25005 25005-117 1 US
SPEEDOMETER,KPH (Canada) 25005A 25005-1176 1 CN
BRACKET-METER 25008 25008-1058 1
TACHOMETER,X1000R/MIN 25015 25015-1135 1
COVER-METER CASE,UPP 25023 25023-1056 1
COVER-METER CASE.PILO 25023A 25023-1051 1
METER,FUEL 28011 28011-1032 1
SCREW,TAPPING,4X14 92009 92009-1140 2
SCREW,TAPPING,4X20 92009A 92009-1141 4
SCREW,TAPPING,4X12 92009B 92009-1142 3
WASHER,4.5X10X0.8 92022 92022-1394 2
WASHER,PLAIN,6MM 92022A 92022-263 2
COLLAR,5.5X11 92027 92027-1563 1
COLLAR,6X8.5 92027A 92027-1564 2
BULB,12V3.4W 92069 92069-1007 10
DAMPER,METER BRACKET 92075 92075-1385 4
DAMPER,FUEL METER 92075A 92075-1453 1
DAMPER,FUEL METER 92075B 92075-1454 1
DAMPER,FUEL METER 92075C 92075-1455 1
BOLT-UPSET 6X14 110 112B0614 2
SCREW-PAN-CROS 220 220B0316 1
NUT,5MM 311 311B0500 2
NUT-HEX 312 312B0400 4
WASHER PLAIN 6MM 411 411B0600 2
WASHER SPRING 4MM 460 461F0400 4
WASHER SPRING 3MM 461 461F0300 1
WASHER SPRING 6MM 461A 461F0600 2
