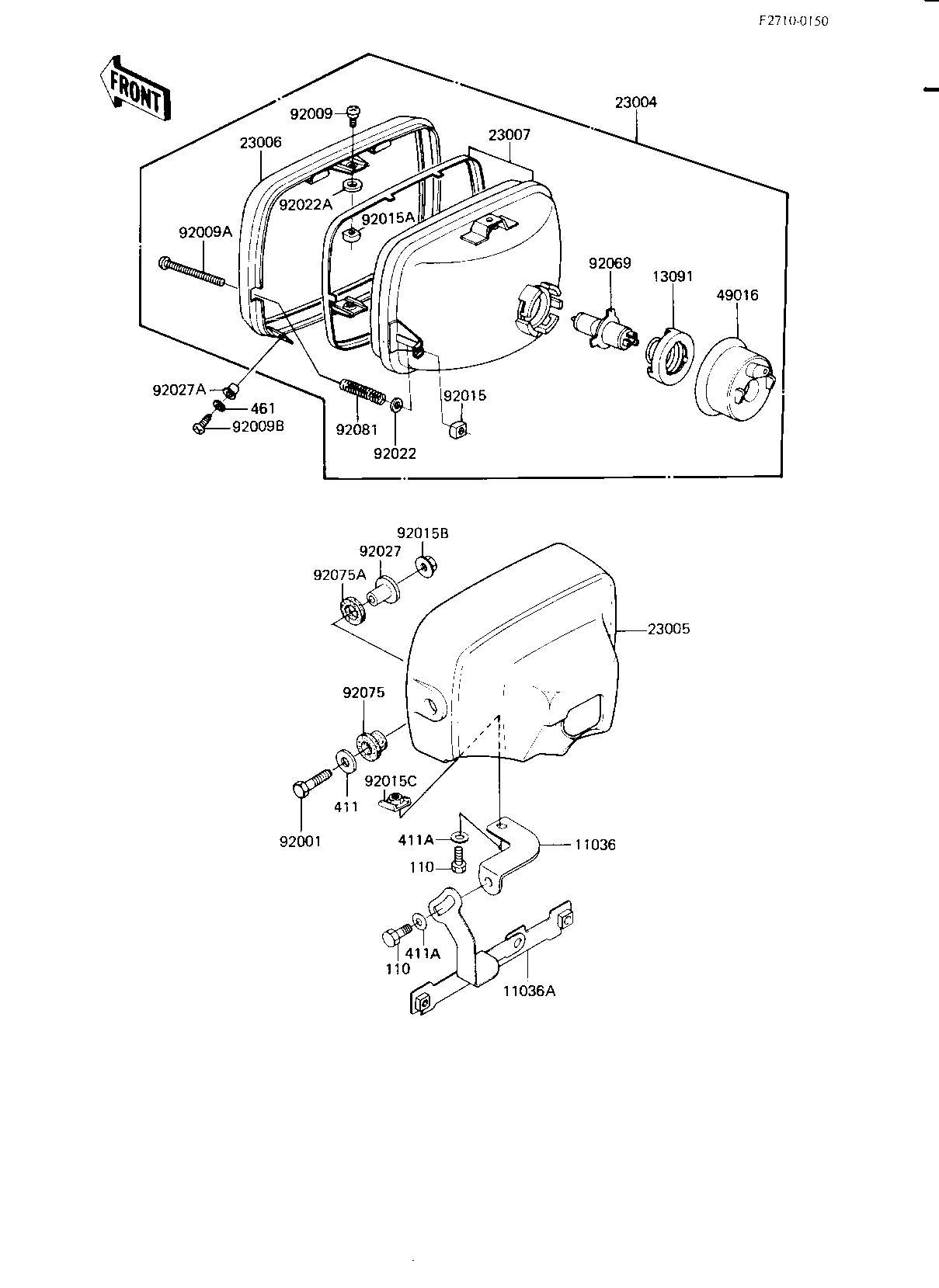

1983 KZ750-L3 - HEADLIGHT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-A,HEAD LAMP,B 11036 11036-1354 1
BRACKET-A,HEAD LAMP B 11036A 11036-1413 1
HOLDER,HEAD LAMP SOCK 13091 13091-1036 1
LAMP-HEAD 23004 23004-1075 1
BODY-COMP-HEAD LAMP,F 23005 23005-1024-21 1
RIM,HEAD LAMP 23006 23006-1005 1
LENS-COMP 23007 23007-1041 1
COVER,HEAD LAMP SOCKE 49016 49016-1023 1
BOLT 8X38 92001 92001-1405 2
SCREW-PAN HEAD,5X12 92009 23019-023 2
SCREW,HEAD LAMP LENS 92009A 92009-1047 1
SCREW,5X16 92009B 92009-1693 2
NUT,4MM 92015 23020-018 1
NUT,HEAD LAMP RIM FIT 92015A 23020-023 2
NUT,8M/M 92015B 92015-1014 2
NUT,HEAD LAMP BODY FT 92015C 92015-1050 1
WASHER 92022 23021-004 1
WASHER-PLAIN,5MM 92022A 23021-012 2
COLLAR,HEAD LAMP FITT 92027 92027-1131 2
COLLAR,HEAD LAMP,BLAC 92027A 92027-1503 2
BULB,12V-60/55W 92069 92069-1002 1
DAMPER,HEAD LAMP FITT 92075 92075-1109 2
DAMPER,HEAD LAMP FITT 92075A 92075-1110 2
SPRING,HEAD LAMP LENS 92081 92081-1103 1
BOLT, 6X14, BLACK 110 112C0614 2
WASHER,PLAIN,8MM 411 411D0800 2
WASHER PLAIN 411A 411F0600 2
WASHER-SPRING,5MM,BLA 461 461K0500 2
