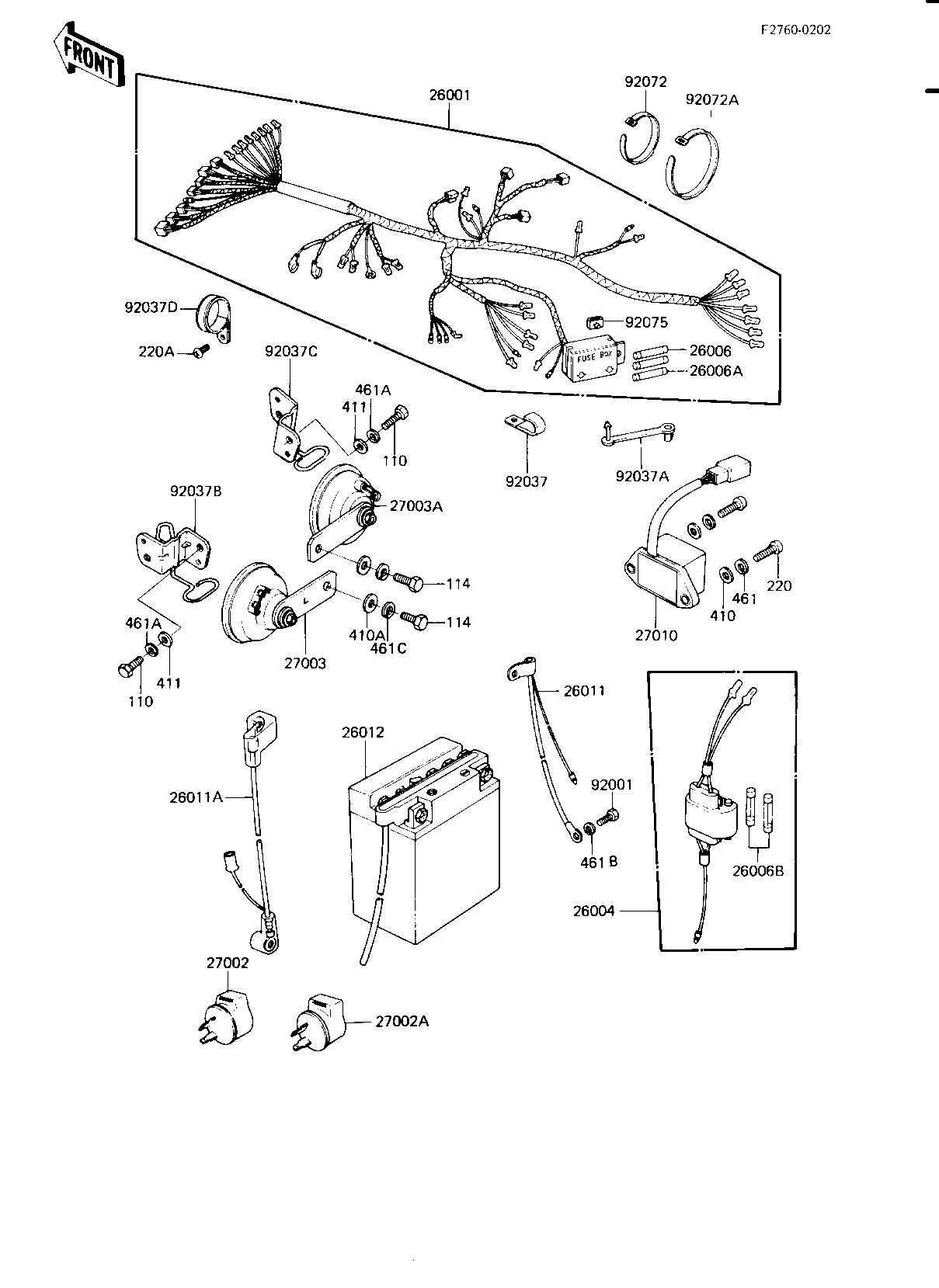

1983 KZ750-L3 - CHASSIS ELECTRICAL EQUIPMENT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HARNESS,MAIN,W/FUSE 26001 26001-1472 1
FUSE-ASSY,ACCESSORY 26004 26004-1014 1
FUSE 10A 26006 26006-003 3
FUSE-20A 26006A 26006-005 2
FUSE,10A,L=30M/M 26006B 26006-1002 3
WIRE-LEAD,BATTERY GRO 26011 26011-1159 1
WIRE-LEAD 26011A 26011-1174 1
FB BAT FB12A-A 26012 26012-1004 1
RELAY-TURN SIGNAL 27002 27002-011 1
RELAY,TURN SIGNAL 27002A 27002-016 1
HORN,LH 27003 27003-1057 1
HORN,RH 27003A 27003-1058 1
SWITCH,RESERVE LIGHTI 27010 27010-1069 1
BOLT,6X10,BLACK 92001 92001-1699 1
CLAMP,WIRING HARNESS 92037 92037-1069 1
CLAMP 92037A 92037-1290 2
CLAMP,HORN LEAD WIRE, 92037B 92037-1322 1
CLAMP,HORN LEAD WIRE, 92037C 92037-1323 1
CLAMP,WIRING HARNESS 92037D 92037-1330 1
BAND,MIDDLE 92072 92072-031 2
BAND,WIRING HARNESS 92072A 92072-056 2
DAMPER RUBBER,FUSE 92075 92075-279 1
BOLT,5X14,BLACK 110 110C0514A 2
BOLT-SMALL,8X14 114 114C0814 2
SCREW PAN HEAD 6X20 220 220B0620 2
SCREW-PAN-CROS 220A 220C0510 1
WASHER PLAIN 6MM 410 410B0600 2
WASHER,PLAIN,8MM 410A 92022-1554 2
WASHER PLAIN 5MM 411 411B0500 2
WASHER SPRING 6MM 461 461F0600 2
WASHER-SPRING,5MM,BLA 461A 461K0500 2
WASHER-SPRING,6MM,BLA 461B 461K0600 1
WASHER-SPRING,8MM,BLA 461C 461K0800 2
