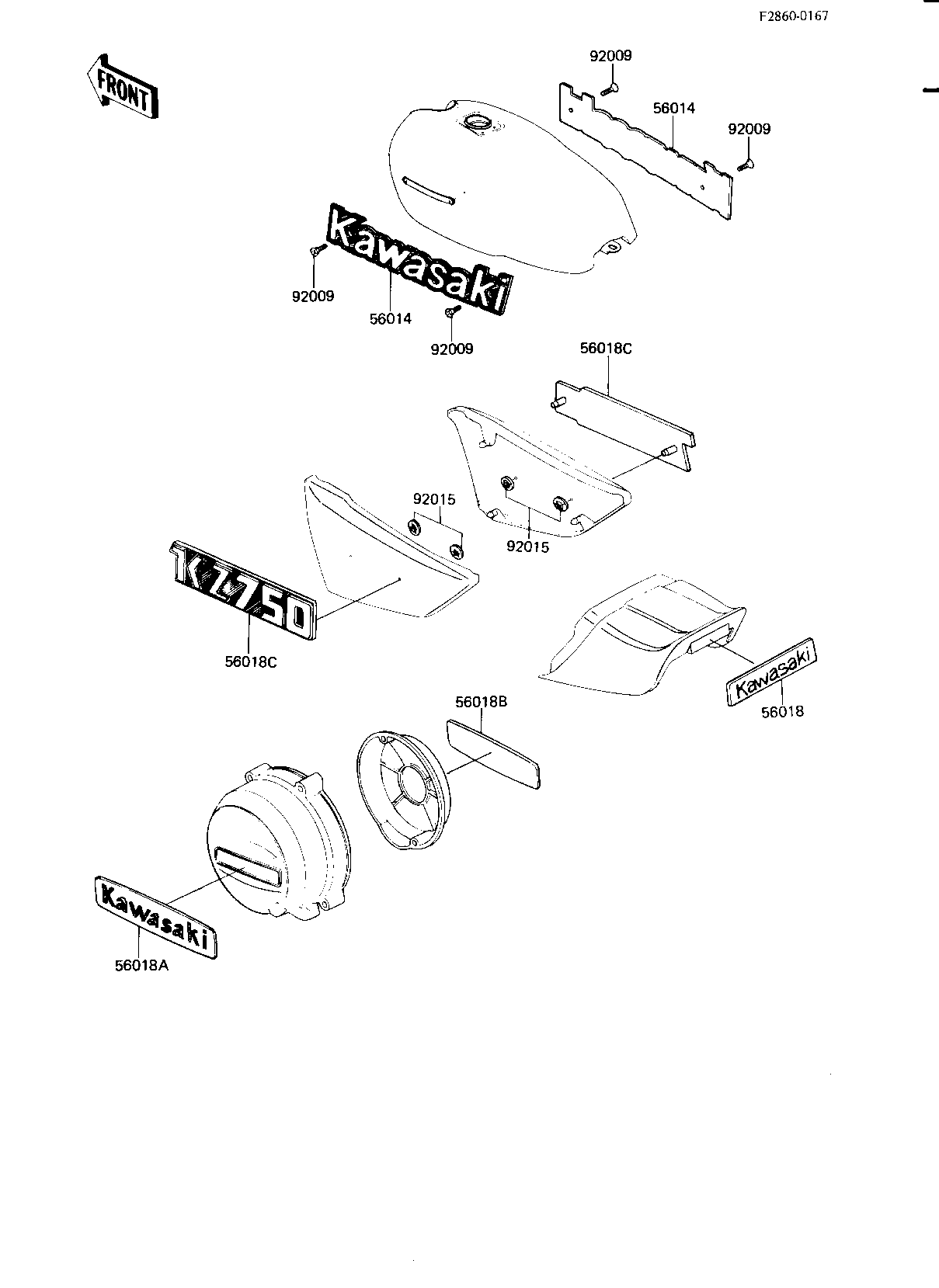

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK 56014 56014-1043 2
MARK,SEAT COVER 56018 56018-1208 1
MARK,GENERATOR COVER 56018A 56018-1291 1
MARK,GOVERNOR CAP 56018B 56018-1292 1
MARK,SIDE COVER 56018C 56018-1356 2
SCREW-CSK-CROS 92009 221C0306 4
NUT,LOCK,3MM 92015 92018-005 4
