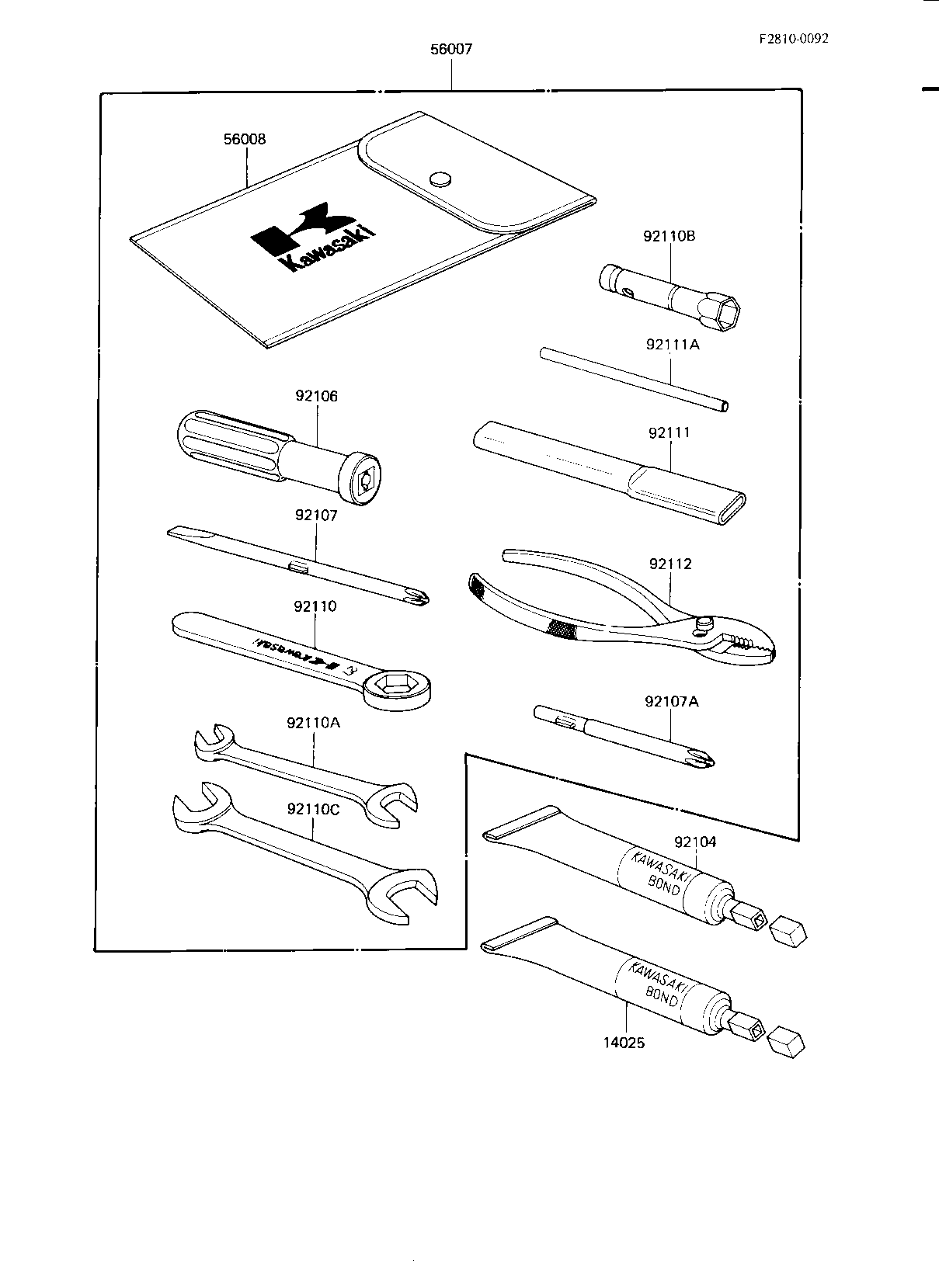

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOND,#10 14025 56019-120 1
TOOLKIT 56007 56007-1284 1
BAG,TOOLKIT 56008 56008-1019 1
LIQUID GASKET 92104 92104-002 1
GRIP,SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER 92107 92107-1052 1
SCREW DRIVER #3 PHLIP 92107A 92107-005 1
TOOL-WRENCH,BOX END,2 92110 92110-1147 1
TOOL-WRENCH,OPEN END 92110A 92110-1038 1
WRENCH,SPARK PLUG 92110B 92108-008 1
TOOL-WRENCH,OPEN END, 92110C 92110-1153 1
TOOL-WRENCH,OPEN END, 92111 92111-004 1
BAR,SPARK PLUG WRENCH 92111A 92111-005 1
PLIERS,160MM 92112 92112-003 1
