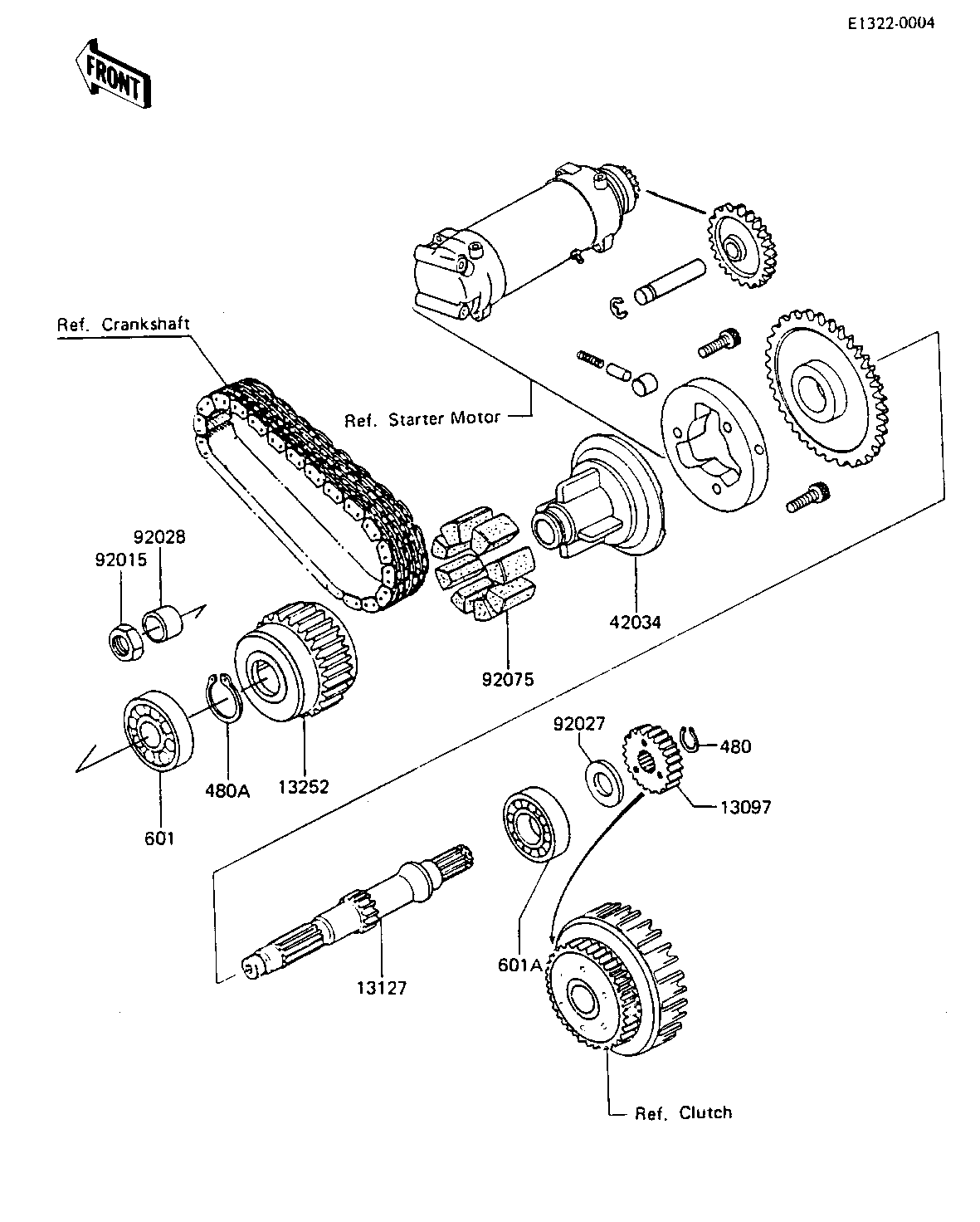

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR,2ND SHAFT,29T 13097 13121-037 1
SHAFT,SECONDARY 13127 13127-1019 1
COUPLING,OUTER 13252 13252-001 1
COUPLING,INNER 42034 13253-001 1
NUT 18MM 92015 92015-019 1
COLLAR,T=5MM 92027 92027-263 1
BUSHING,SECONDARY 92028 92028-1037 1
DAMPER RUBBER 92075 92075-1227 8
CIRCLIP,22MM 480 480J2200 1
CIRCLIP 28MM 480A 480J2800 1
BEARING BALL #6205 601 601B6205 1
BEARING BALL #6305 601A 601B6305 1
