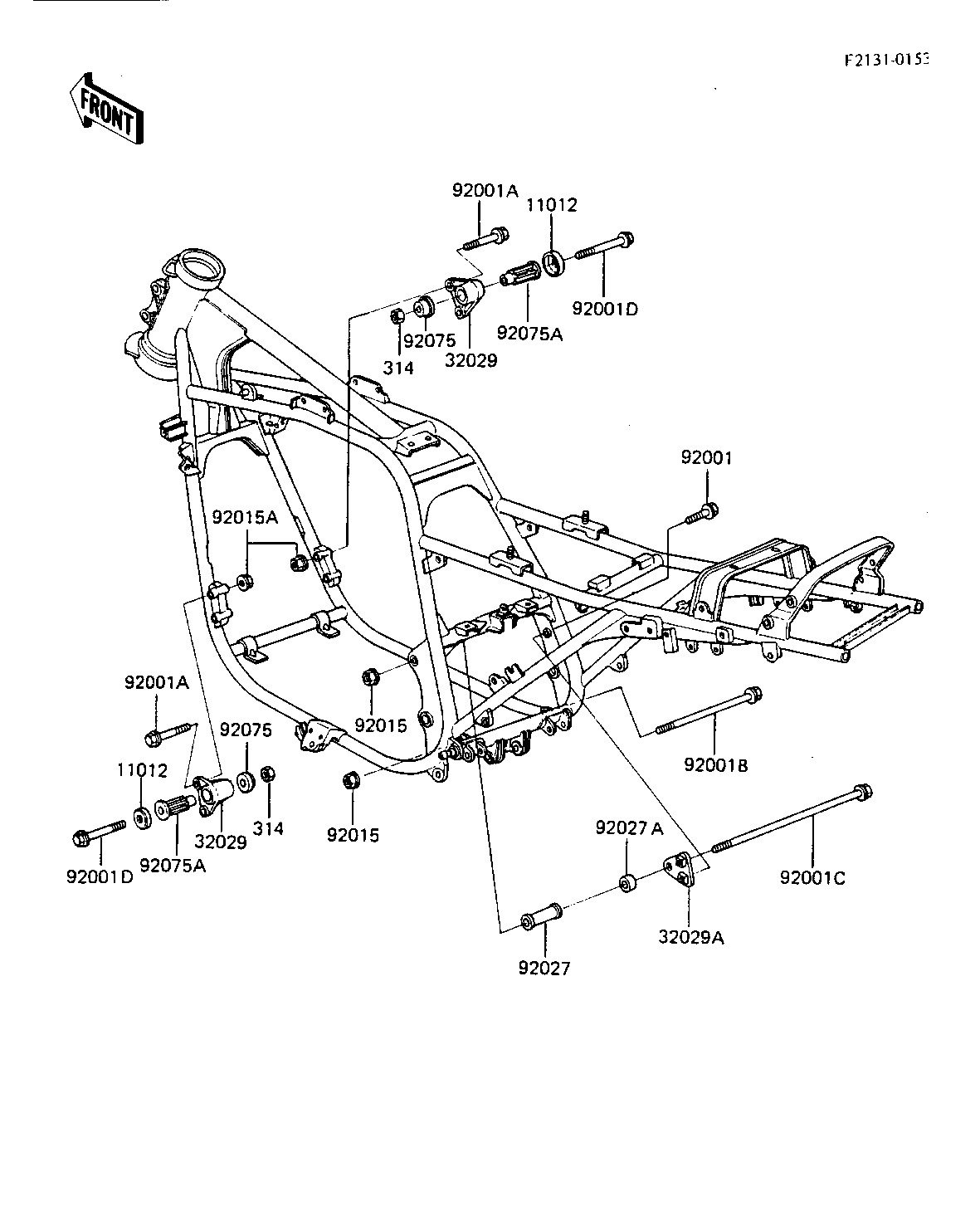

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,ENGINE BRACKET 11012 11012-1228 2
BRACKET-ENGINE,FR 32029 32029-1254 2
BRACKET-ENGINE,RR 32029A 32029-1345 1
BOLT,FLANGED,8X60 92001 92001-1615 4
BOLT,FLANGED,10X180 92001B 92001-1621 1
BOLT,10X290,BLACK 92001C 92001-1749 1
BOLT,FLANGED,10X115,B 92001D 92001-1780 2
NUT,FLANGED,10MM,BLAC 92015 92015-1180 2
NUT,FLANGED,8MM 92015A 92015-1408 4
COLLAR,L=56.8 92027 92027-1570 1
COLLAR,11X26X12.3 92027A 92027-1571 1
DAMPER 92075 92075-1274 2
DAMPER,ENGINE BRACKET 92075A 92075-1377 2
NUT-HEX-FINE,10MM 314 314C1000 2
