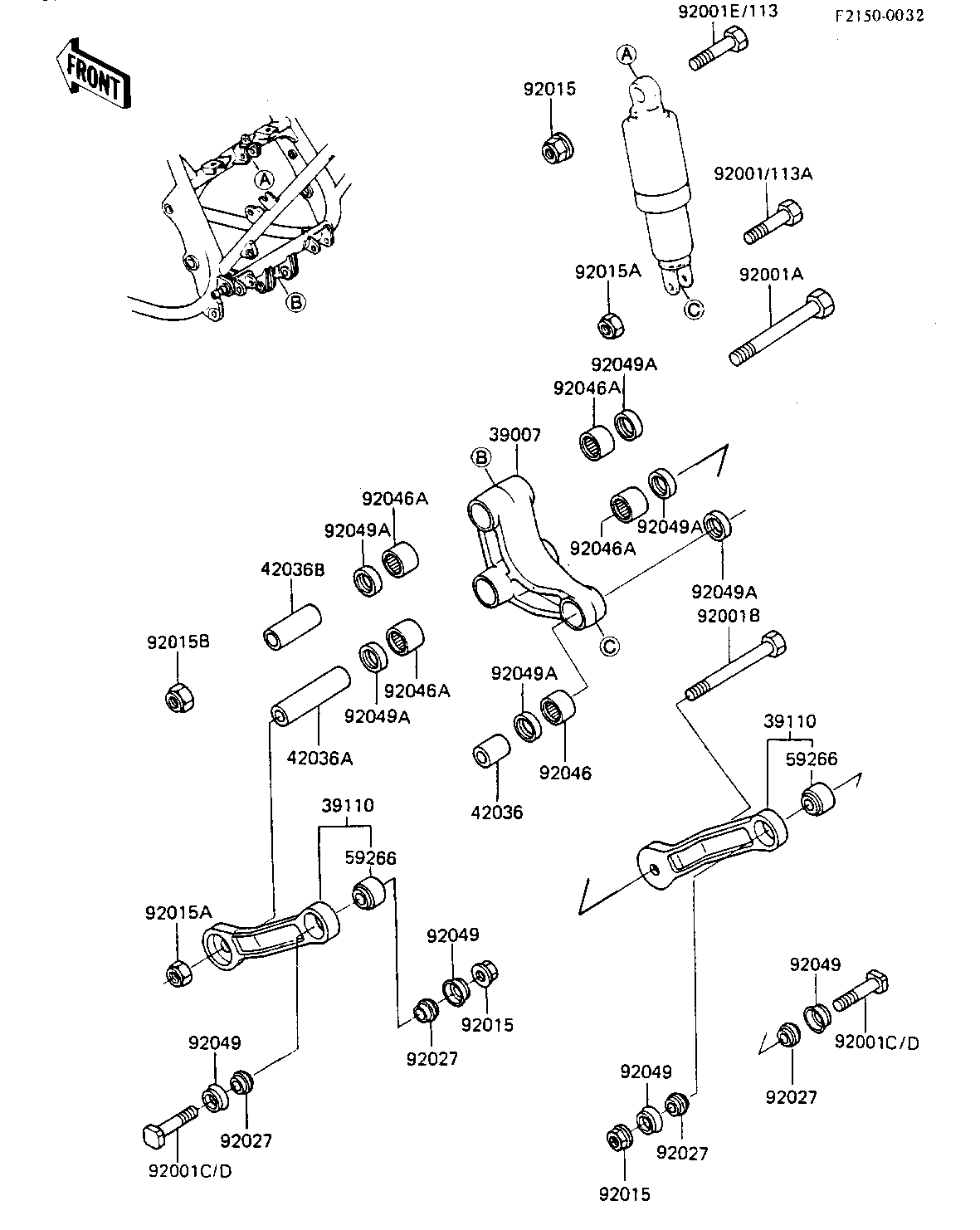

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1026 1
ROD-ASSY-TIE 39110 39110-1017 2
SLEEVE,12.1X20X26 42036 42036-1072 1
SLEEVE,12.1X20X84 42036A 42036-1075 1
SLEEVE,14.1X20X55 42036B 42036-1084 1
JOINT-BALL 59266 59266-1051 2
BOLT,12X55 92001 92001-1497 1
BOLT,14X108 92001A 92001-1808 1
BOLT,12X106 92001B 92001-1809 1
BOLT 92001D 92150-1402 2
BOLT,HEX HEAD,10X50 92001E 92003-090 1
NUT,10MM 92015 92015-1415 2
NUT-LOCK,12MM 92015A 92019-009 2
NUT-LOCK,14MM 92015B 92019-011 1
COLLAR,L=5.5 92027 92027-1392 4
BEARING-NEEDLE,HK2016 92046 92046-1054 1
BEARING-NEEDLE,FJ-202 92046A 92046-1061 4
SEAL-OIL 92049 92049-1083 4
SEAL-OIL,GD20X26X4 92049A 92049-1108 6
