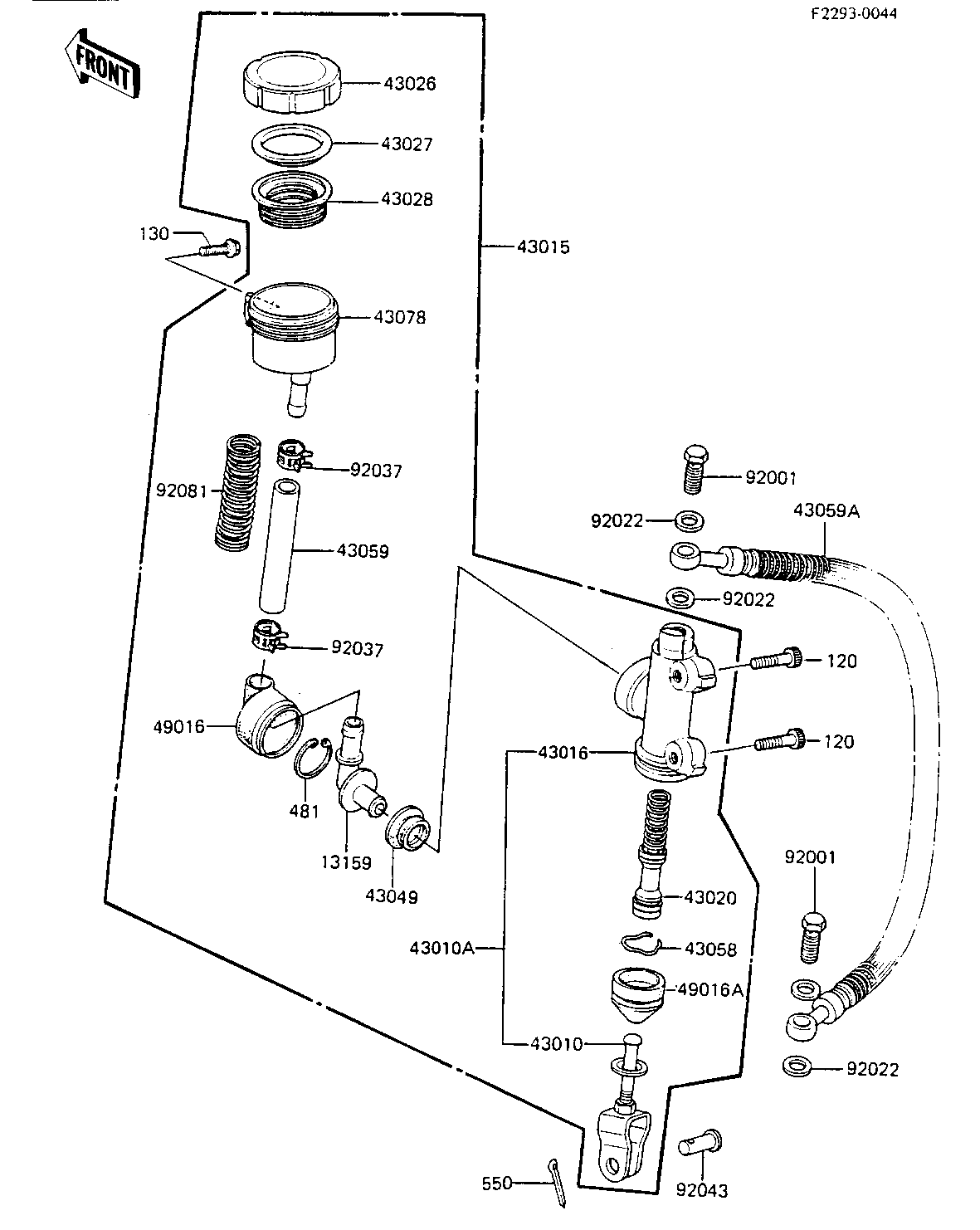

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CONNECTOR | 13159 | 13159-1009 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-1051 | 1 | ||
ROD-ASSY-BRAKE,RR | 43010A | 43010-5006 | 1 | ||
CYLINDER-ASSY-MASTER, | 43015 | 43015-1251 | 1 | ||
CYLINDER-MASTER,RR | 43016 | 43016-1101 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1035 | 1 | ||
CAP-BRAKE | 43026 | 43026-1016 | 1 | ||
PLATE,DIAPHRAGM | 43027 | 43027-1005 | 1 | ||
DIAPHRAGM | 43028 | 43028-1016 | 1 | ||
PACKING | 43049 | 43049-1008 | 1 | ||
RING,DUST SEAL | 43058 | 43058-004 | 1 | ||
HOSE-BRAKE,L=116 | 43059 | 43059-1140 | 1 | ||
HOSE-BRAKE,L=630 | 43059A | 43059-1165 | 1 | ||
RESERVOIR | 43078 | 43078-1009 | 1 | ||
COVER-SEAL | 49016 | 49016-1034 | 1 | ||
COVER-SEAL,BRAKE PIST | 49016A | 49016-1048 | 1 | ||
BOLT,OIL,L=23 | 92001 | 92002-1888 | 2 | ||
WASHER-OIL BOLT | 92022 | 43067-001 | 4 | ||
CLAMP,CABLE | 92037 | 92037-139 | 2 | ||
PIN | 92043 | 92043-1013 | 1 | ||
SPRING HOSE PROTECTER | 92081 | 92081-1335 | 1 | ||
BOLT | 120 | 120P0835 | 2 | ||
BOLT,FLANGED,6X20 | 130 | 130B0620 | 1 | ||
CIRCRIP-TYPE-C | 481 | 481J2500 | 1 | ||
PIN COTTER 2.0X15 | 550 | 550D2015 | 1 |
