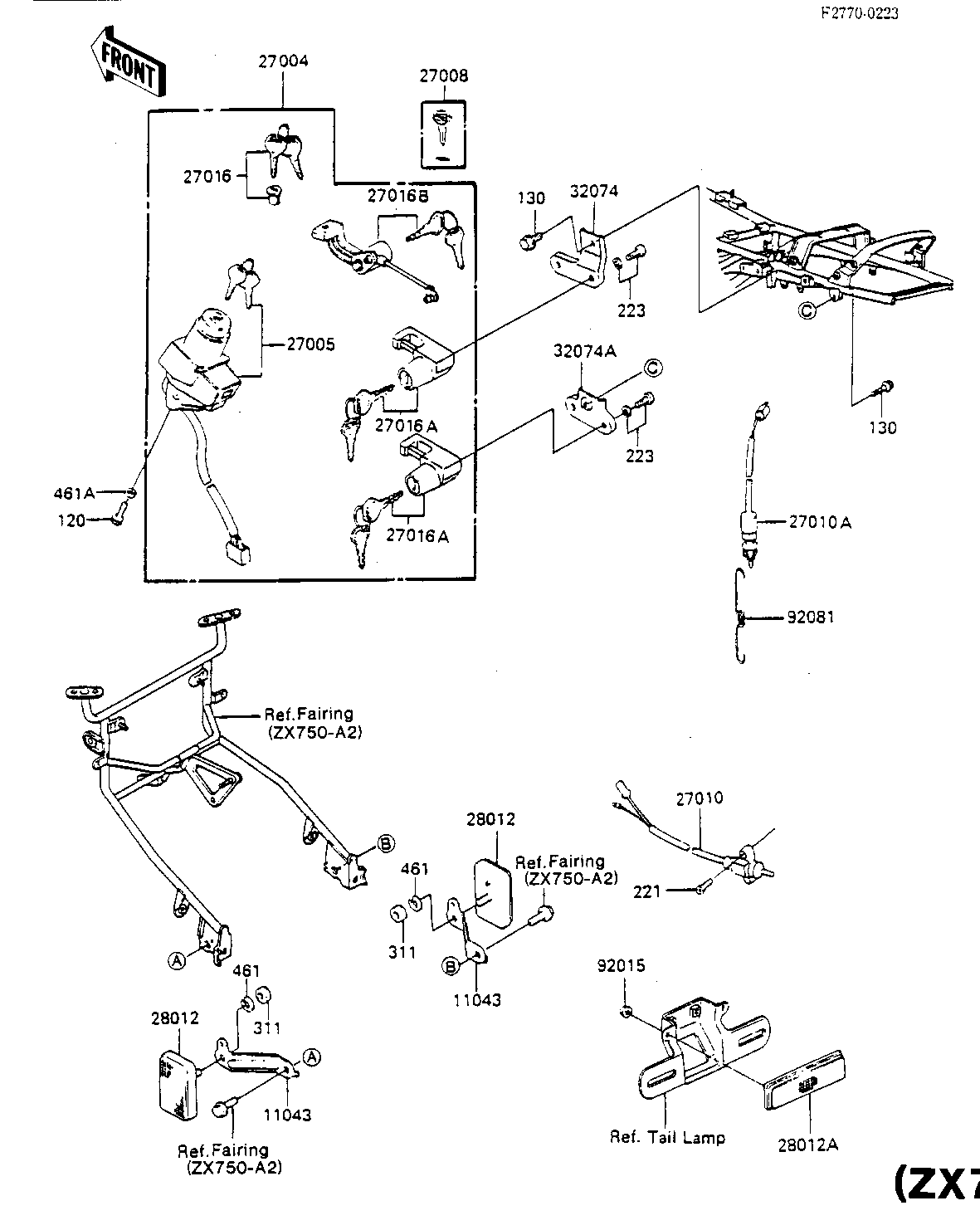

1984 GPz 750 - IGNITION SWITCH/LOCKS/REFLECTORS (ZX750-

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-B,REFLECTOR 11043 11043-1456 2
SWITCH-ASSY 27004 27004-5211 1
SWITCH-ASSY-IGNITION 27005 27005-5035 1
KEY-LOCK,BLANK 27008 27008-1103 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1065 1
SWITCH,BRAKE LAMP 27010A 27010-1093 1
LOCK-ASSY,FUEL TANK 27016 27016-5068 1
LOCK-ASSY,HELMET 27016A 27016-5070 2
LOCK-ASSY,SEAT 27016B 27016-5071 1
REFLECTOR,REFLEX(FRON 28012 28012-1003 2
REFLECTOR,REAR REFLEX 28012A 28012-1005 1
BRACKET-LOCK,HELMET,F 32074 32074-1058 1
BRACKET-LOCK,HELMET,R 32074A 32074-1059 1
NUT,FLANGED,5MM 92015 92015-1259 2
BRAKE SWITCH SPRING 92081 27011-021 1
BOLT-SOCKET,6X16,BLAC 120 120S0616 2
BOLT,FLANGED,6X10 130 130B0610 2
SCREW-CSK-CROS 221 221C0520 2
SCREW-PAN-WS-CROS 223 223B0508 4
NUT,5MM 311 311B0500 2
WASHER SPRING 5MM 461 461F0500 2
WASHER SPRING 6MM 461A 461F0600 2
