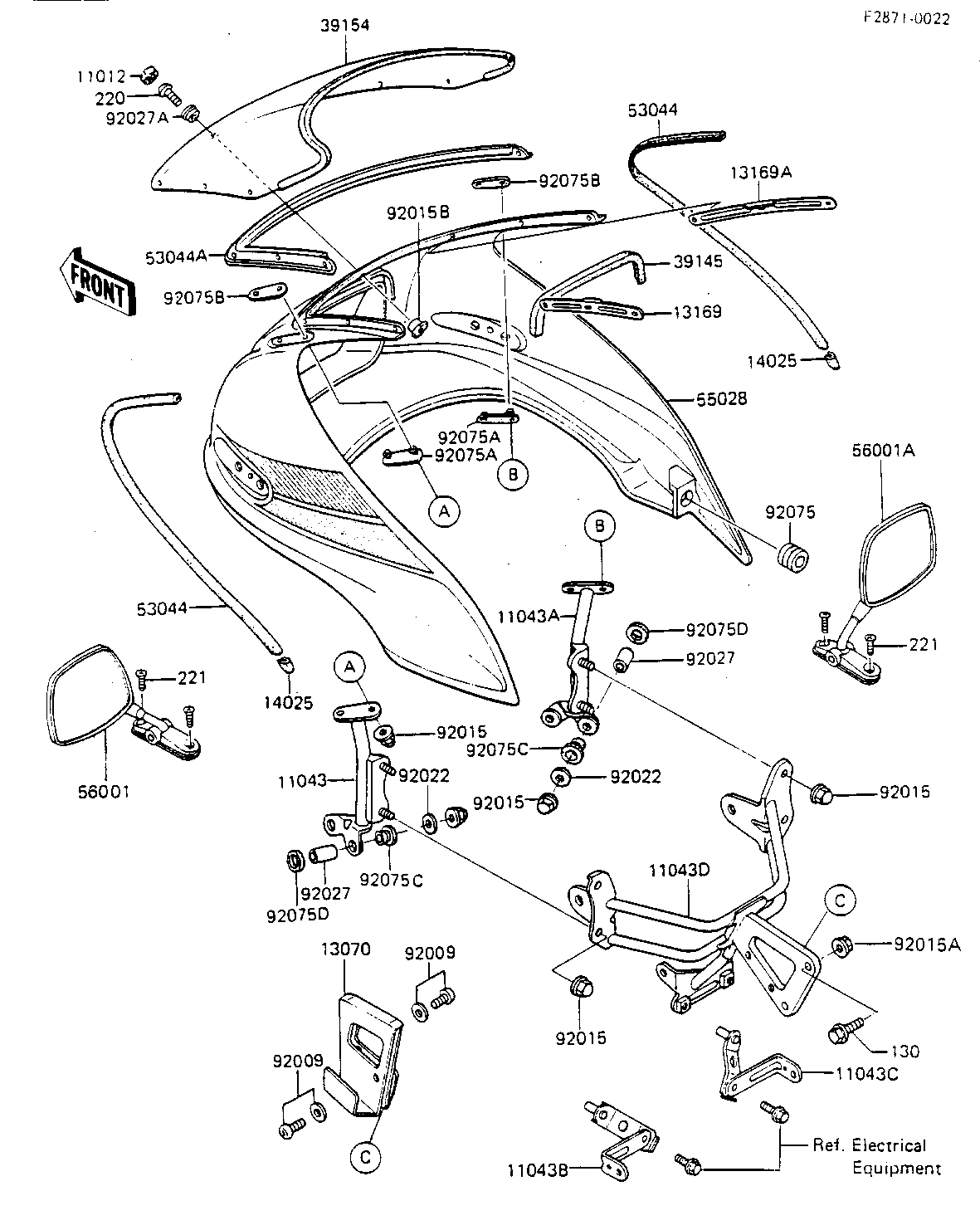

1984 GPz 750 - FAIRING (ZX750-A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,COWLING 11012 11012-1309 7
BRACKET-B,MIRROR,LH 11043 11043-1069 1
BRACKET-B,MIRROR,RH 11043A 11043-1070 1
BRACKET-B,COWLING,RR, 11043B 11043-1130 1
BRACKET-B,COWLING,RR, 11043C 11043-1131 1
BRACKET-B,COWLING BOD 11043D 11043-1252 1
GUIDE,HARNESS&CABLE 13070 13070-1101 1
PLATE,COWLING,LH 13169 13169-1711 1
PLATE,COWLING,LH 13169A 13169-1711 1
COVER,WINDSHIELD END 14025 14025-1756 2
TRIM-SEAL,HEAD LAMP 39145 39145-1051 1
WINDSHIELD 39154 39154-1014 1
TRIM,COWLING 53044 53044-1110 1
TRIM,WINDSHIELD 53044A 53044-1122 1
COWLING 55028 55028-5062-B1 1
MIRROR-ASSY,LH 56001 56001-1142 1
MIRROR-ASSY,RH 56001A 56001-1145 1
SCREW,6X10 92009 92009-1270 2
NUT,CAP 6MM,BLACK 92015 92015-1170 12
NUT,FLANGED,8MM 92015A 92015-1408 2
NUT,FLANGED,5MM 92015B 92015-1306 7
WASHER,PLAIN,7MM 92022 92022-228 4
COLLAR,6.8X10X21 92027 92027-1400 4
COLLAR,COWLING,ID=5.5 92027A 92027-1596 7
DAMPER RUBBER 92075 92075-1037 2
DAMPER,MIRROR 92075A 92075-1492 2
DAMPER,MIRROR 92075B 92075-1500 2
RUBBER,FENDER COVER 92075C 92075-174 4
DAMPER RUBBER 92075D 92075-175 4
BOLT-FLANGED,8X25 130 130C0825 2
SCREW-PAN-CROSS,5X14 220 220C0514 7
SCREW-CSK-CROS,6X25,B 221 221C0625 4
