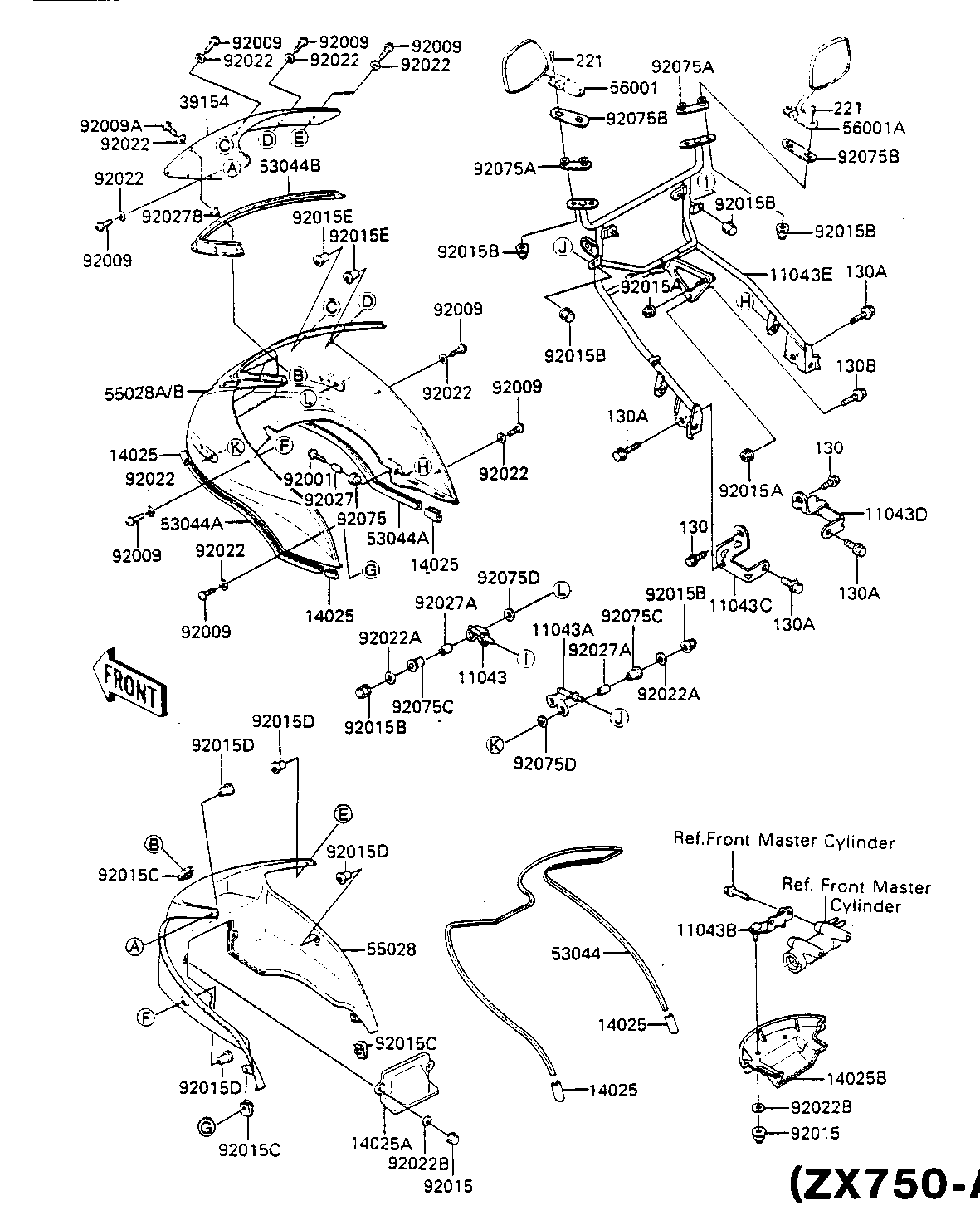

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET-B,SIGNAL LAMP | 11043 | 11043-1278 | 1 | ||
BRACKET-B,SIGNAL LAMP | 11043A | 11043-1279 | 1 | ||
BRACKET-B,FUEL FILTER | 11043B | 11043-1426 | 1 | ||
BRACKET-B,COWLING,LH | 11043C | 11043-1442 | 1 | ||
BRACKET-B,COWLING,RH | 11043D | 11043-1443 | 1 | ||
BRACKET,COWLING,UPP | 11043E | 11043-1667 | 1 | ||
COVER,WINDSHIELD END | 14025 | 14025-1756 | 6 | ||
COVER,COWLING INNER | 14025A | 14025-1769 | 1 | ||
COVER | 14025B | 14025-1815 | 1 | ||
WINDSHIELD | 39154 | 39154-1052 | 1 | ||
TRIM,COWLING | 53044 | 53044-1110 | 1 | ||
TRIM,COWLING | 53044A | 53044-1117 | 2 | ||
TRIM,WINDSHIELD | 53044B | 53044-1121 | 1 | ||
COWLING,INNER | 55028 | 55028-5063 | 1 | ||
COWLING,F.RED | 55028A | 55028-5032-B1 | 1 | ||
COWLING,G.SILVER | 55028B | 55028-5033-F2 | 1 | ||
MIRROR-ASSY,LH | 56001 | 56001-1142 | 1 | ||
MIRROR-ASSY,RH | 56001A | 56001-1145 | 1 | ||
BOLT,6X25 | 92001 | 92002-1137 | 2 | ||
SCREW | 92009 | 92009-1654 | 10 | ||
SCREW,5X25 | 92009A | 92009-1302 | 1 | ||
NUT,CAP 6MM,BLACK | 92015 | 92015-1170 | 4 | ||
NUT,FLANGED,8MM | 92015A | 92015-1408 | 2 | ||
NUT-6MM | 92015B | 92015-1078 | 10 | ||
NUT | 92015C | 92015-1710 | 3 | ||
NUT,COWLING,5MM | 92015D | 92015-1351 | 4 | ||
NUT,COWLING,5MM | 92015E | 92015-1352 | 4 | ||
WASHER,NYLON,5.3X11.5 | 92022 | 92022-1521 | 11 | ||
WASHER,PLAIN,7MM | 92022A | 92022-228 | 4 | ||
WASHER-PLAIN,7MM | 92022B | 92022-240 | 4 | ||
COLLAR,6.8X10X21 | 92027 | 92027-1400 | 4 | ||
COLLAR,REAR FENDER | 92027A | 92027-162 | 2 | ||
COLLAR,COWLING,L=5.5 | 92027B | 92027-1754 | 1 | ||
DAMPER | 92075 | 92075-1057 | 2 | ||
DAMPER,MIRROR | 92075A | 92075-1492 | 2 | ||
DAMPER,MIRROR | 92075B | 92075-1500 | 2 | ||
RUBBER,FENDER COVER | 92075C | 92075-174 | 4 | ||
DAMPER RUBBER | 92075D | 92075-175 | 4 | ||
BOLT-FLANGED,6X12 | 130 | 130C0612 | 2 | ||
BOLT-FLANGED | 130A | 130C0814 | 4 | ||
BOLT-FLANGED,8X25 | 130B | 130C0825 | 1 | ||
SCREW-CSK-CROS,6X25,B | 221 | 221C0625 | 4 |
BRACKET-B,SIGNAL LAMP | |
REF # | 11043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-B,SIGNAL LAMP | |
REF # | 11043A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-B,FUEL FILTER | |
REF # | 11043B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-B,COWLING,LH | |
REF # | 11043C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-B,COWLING,RH | |
REF # | 11043D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,COWLING,UPP | |
REF # | 11043E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,WINDSHIELD END | |
REF # | 14025 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
COVER,COWLING INNER | |
REF # | 14025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER | |
REF # | 14025B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WINDSHIELD | |
REF # | 39154 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,COWLING | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,COWLING | |
REF # | 53044A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TRIM,WINDSHIELD | |
REF # | 53044B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING,INNER | |
REF # | 55028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING,F.RED | |
REF # | 55028A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COWLING,G.SILVER | |
REF # | 55028B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MIRROR-ASSY,LH | |
REF # | 56001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MIRROR-ASSY,RH | |
REF # | 56001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
SCREW,5X25 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,CAP 6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,FLANGED,8MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-6MM | |
REF # | 92015B |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015C |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,COWLING,5MM | |
REF # | 92015D |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,COWLING,5MM | |
REF # | 92015E |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,NYLON,5.3X11.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 11 |
DESTINATION | |
REMARKS |
WASHER,PLAIN,7MM | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,7MM | |
REF # | 92022B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR,6.8X10X21 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR,REAR FENDER | |
REF # | 92027A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,COWLING,L=5.5 | |
REF # | 92027B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,MIRROR | |
REF # | 92075A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,MIRROR | |
REF # | 92075B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RUBBER,FENDER COVER | |
REF # | 92075C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 92075D |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X12 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X25 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS,6X25,B | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
