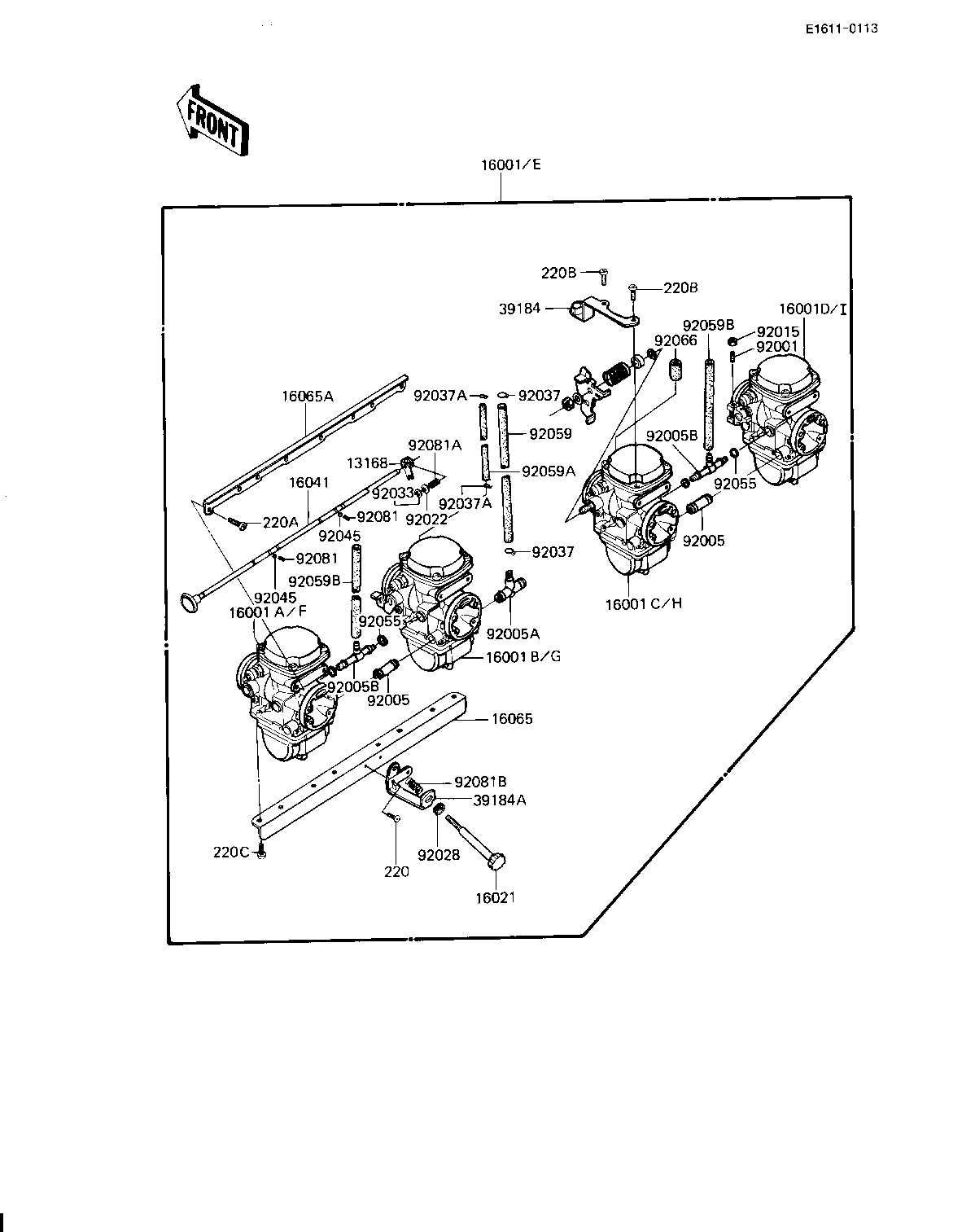

1983 LTD Shaft - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,CHOCK 13168 13168-1091 4
CARBURETOR 16001 16001-1714 1 US
CARBURETOR,LH,OUTSIDE 16001A 16001-1715 1 US
CARBURETOR,LH,INSIDE 16001B 16001-1716 1 US
CARBURETOR,RH,INSIDE 16001C 16001-1717 1 US
CARBURETOR,RH,OUTSIDE 16001D 16001-1718 1 US
CARBURETOR ASSY ALL (Canada) 16001E 16001-1719 1 CN
CARBURETOR,LH,OUTSIDE (Canada) 16001F 16001-1720 1 CN
CARBURETOR,LH,INSIDE (Canada) 16001G 16001-1721 1 CN
CARBURETOR,RH,INSIDE (Canada) 16001H 16001-1722 1 CN
CARBURETOR,RH,OUTSIDE (Canada) 16001I 16001-1723 1 CN
SCREW-THROTTLE STOP 16021 16021-1035 1
SHAFT-CARBURETOR,CHOC 16041 16041-1024 1
HOLDER-CARBURETOR,LWR 16065 16065-1043 1
HOLDER-CARBURETOR,UPP 16065A 16065-1044 1
BRACKET-ASSY,THROTTLE 39184 39184-1006 1
BRACKET-ASSY,IDLING A 39184A 39184-1007 1
BOLT,ADJUSTING 92001 92001-1447 3
FITTING,FUEL 92005 92005-1035 2
FITTING,FUEL 92005A 92005-1036 1
FITTING,AIR VENT 92005B 92005-1045 2
NUT,THROTTLE VLV ADST 92015 92015-1119 3
WASHER,SPRING 92022 92022-1255 4
BUSHING 92028 92028-1071 1
RING-SNAP,E 92033 92033-1066 4
CLAMP,HOSE 92037 92037-1184 2
CLAMP,BREATHER HOSE 92037A 92037-174 2
BALL,STEEL,1/8" 92045 600A0400 2
"0" RING 92055 92055-510 4
TUBE,7.5X12.5X250 92059 92059-1187 1
TUBE,5X9X150 92059A 92059-1188 1
TUBE,6.5X9.5X400 92059B 92059-1222 2
RUBBER PLUG 92066 92068-006 1 US
RUBBER PLUG 92066 92068-006 3 US
SPRING,FAST IDLE SHFT 92081 92081-1260 2
SPRING,CHOCK SHAFT 92081A 92081-1364 4
SPRING,IDLING ADJUST 92081B 92081-1377 1
SCREW PAN HEAD 5X8 220 220B0508 1
SCREW PAN HEAD 5X10 220A 220B0510 8
SCREW PAN HEAD 5X12 220B 220B0512 2
SCREW PAN HEAD 6X14 220C 220B0614 8
