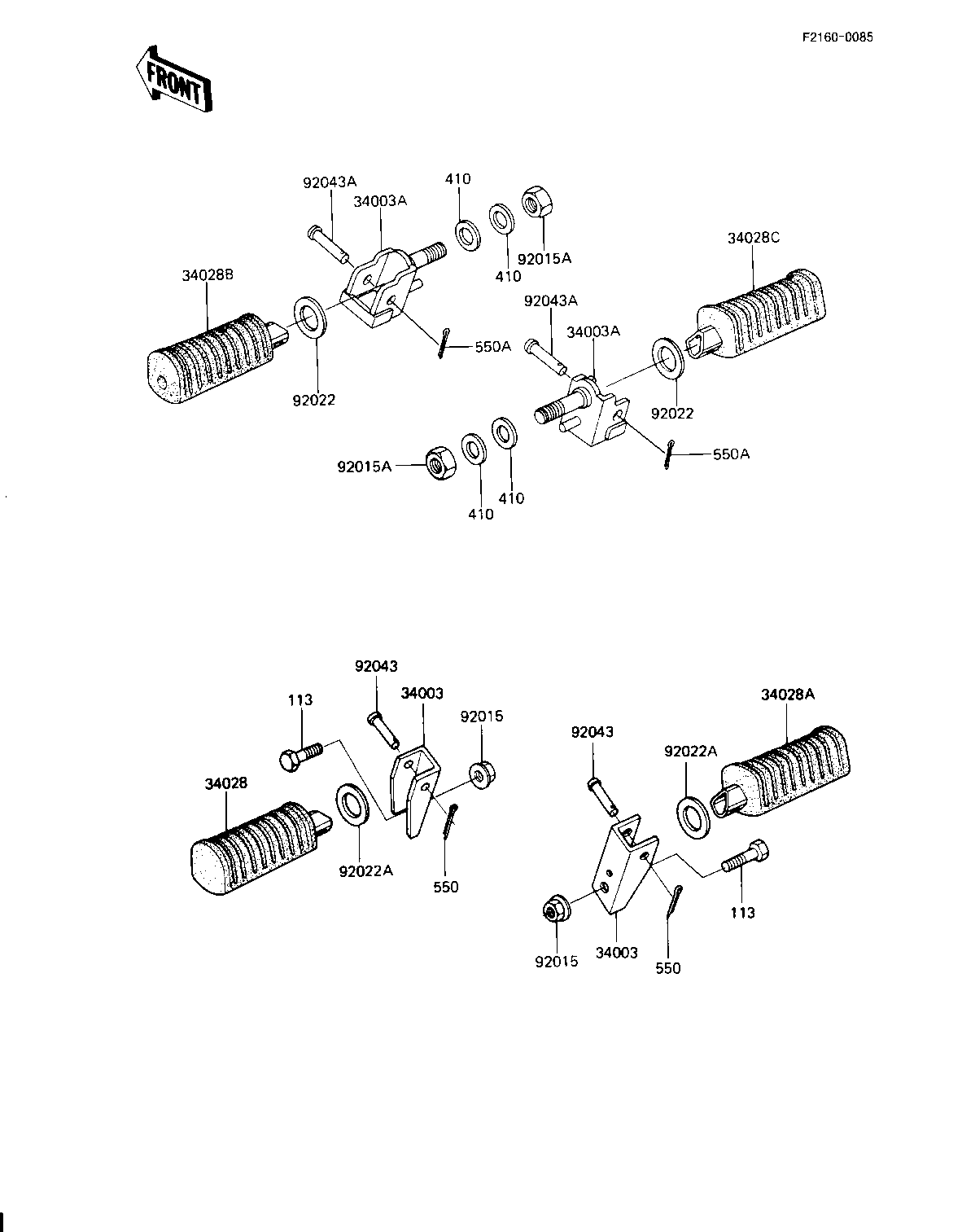

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,REAR FOOTREST 34003 34003-1025 2
HOLDER-STEP 34003A 34003-1091 2
STEP,RR,LH,BLACK 34028 34028-1041 1
STEP,RR,RH,BLACK 34028A 34028-1042 1
STEP-ASSY,FR,LH,BLACK 34028B 34027-1108 1
STEP-ASSY,FR,RH,BLACK 34028C 34027-1109 1
NUT,FLANGED,10MM,BLAC 92015 92015-1180 2
NUT,LOCK,12MM,BLACK 92015A 92015-1190 2
WASHER,25X36X2.3,BLAC 92022 92022-1319 2
WASHER,22.5X30X2.6,BL 92022A 92022-1320 2
PIN 92043 92043-1464 2
PIN,FOOTREST BAR FIT 92043A 92043-115 2
BOLT-SMALL-FINE,10X40 113 113J1040 2
WASHER-PLANE-SMALL 410 410F1200 4
PIN,COTTER,2.0X12 550 550D2012 2
PIN,COTTER,2.5X15 550A 550D2515 2
