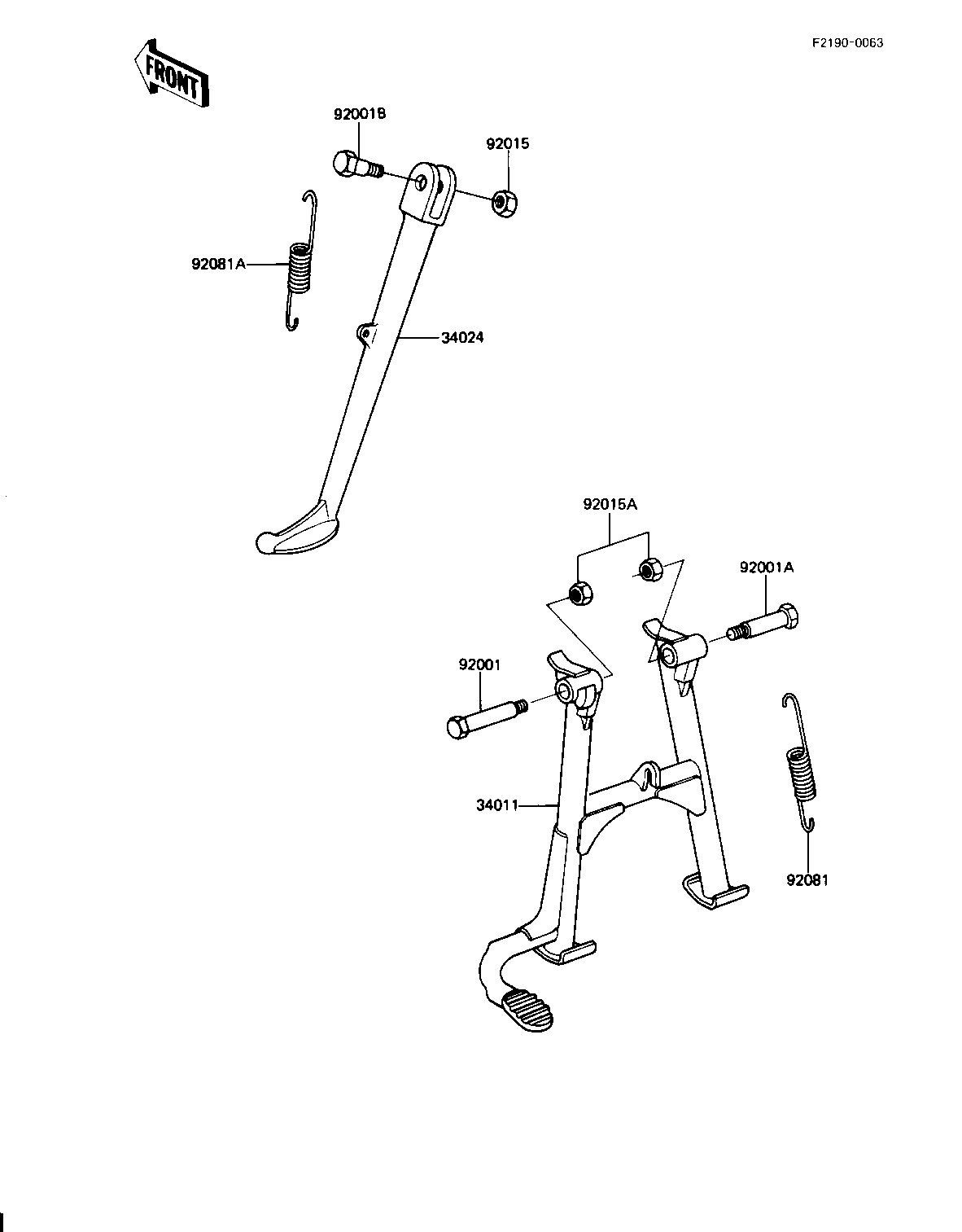

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-MAIN 34011 34011-1034 1
STAND-SIDE 34024 34024-1015 1
BOLT,FLANGED,8X38 92001 92001-1377 1
BOLT,CENTER STAND 92001A 92001-1411 1
BOLT,8X160,BLACK 92001B 92001-1543 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
NUT,LOCK,10MM 92015A 92019-021 2
SPRING,MAIN STAND 92081 34023-012 1
SPRING,SIDE STAND 92081A 92081-1727 1
