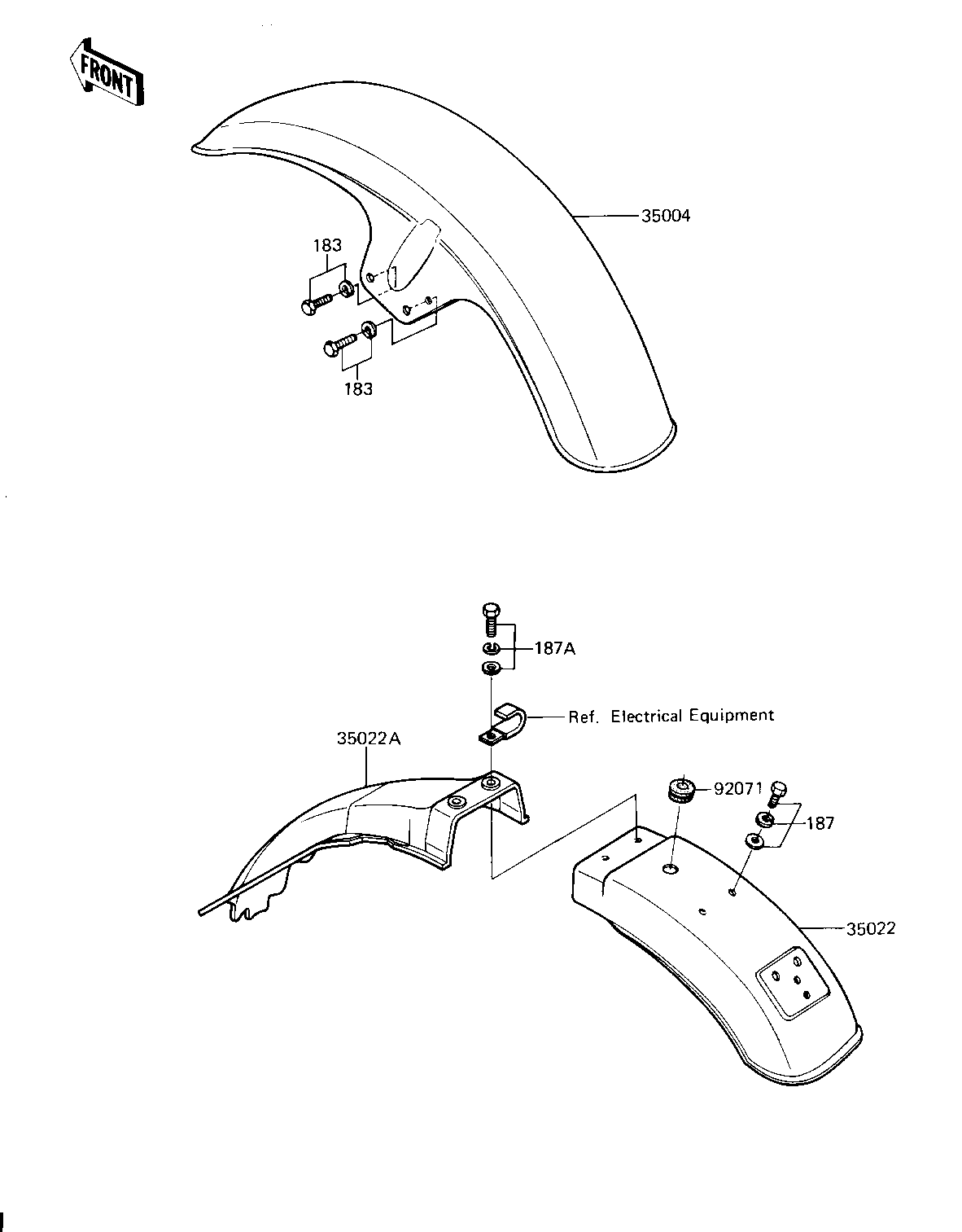

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR 35004 35004-1047 1
FENDER-RR 35022 35022-1059 1
FENDER-RR 35022A 35022-1079 1
GROMMET HARNESS 10MM 92071 92071-019 1
BOLT-UPSET-WS-SMALL 183 183B0816 4
BOLT 6X14 187 187B0614 2
BOLT-UPSET-WSP 187A 187B0618 2
