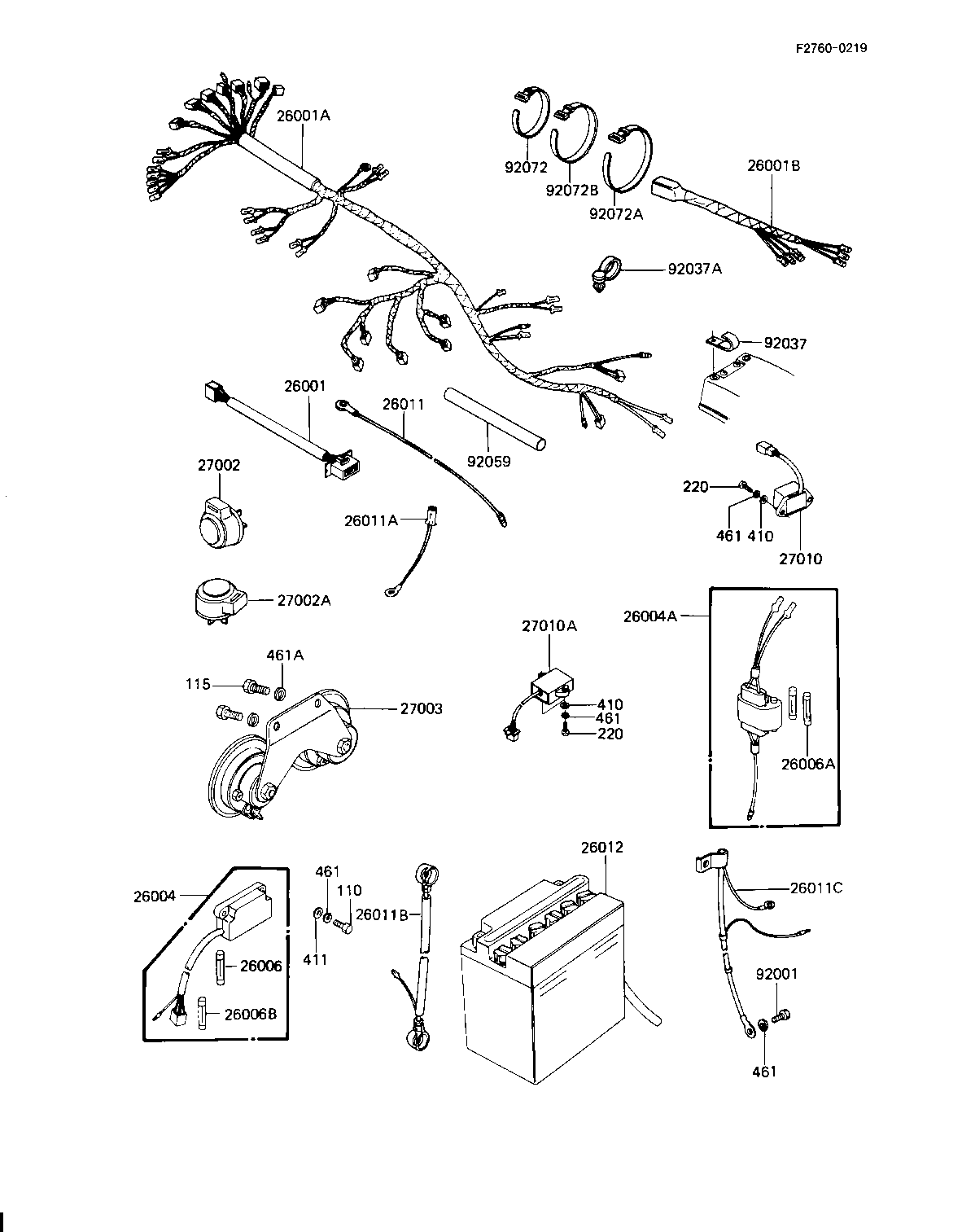

1983 LTD Shaft - CHASSIS ELECTRICAL EQUIPMENT
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HARNESS,RESERVE LIGHT | 26001 | 26001-1248 | 1 | ||
HARNESS,MAIN | 26001A | 26001-1459 | 1 | ||
WIRING HARNESS,REAR | 26001B | 26002-063 | 1 | ||
FUSE-ASSY | 26004 | 26004-1011 | 1 | ||
FUSE-ASSY,ACCESSORY | 26004A | 26004-1014 | 1 | ||
FUSE 10A | 26006 | 26006-003 | 5 | ||
FUSE,10A,L=30M/M | 26006A | 26006-1002 | 3 | ||
FUSE,30A,L=25M/M | 26006B | 26006-1005 | 2 | ||
WIRE,LEAD | 26011 | 26011-095 | 2 | ||
WIRE-LEAD,ACCESSORY G | 26011A | 26011-1100 | 1 | ||
WIRE-LEAD,BATTERY,(+) | 26011B | 26011-1120 | 1 | ||
WIRE-LEAD,BATTERY,(-) | 26011C | 26011-1124 | 1 | ||
YUA BAT YB18L-A | 26012 | 26012-1039 | 1 | ||
RELAY-TURN SIGNAL | 27002 | 27002-011 | 1 | ||
RELAY,TURN SIGNAL | 27002A | 27002-016 | 1 | ||
HORN,F.BLACK | 27003 | 27003-1064 | 1 | ||
SWITCH,RESERVE LIGHTI | 27010 | 27010-1024 | 1 | ||
SWITCH,SELF CANCELING | 27010A | 27010-1079 | 1 | ||
BOLT,HEX HEAD,6MM | 92001 | 92001-137 | 1 | ||
CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 3 | ||
CLAMP | 92037A | 92037-1163 | 1 | ||
TUBE,P.V.C,8X9X200 | 92059 | 92059-1150 | 2 | ||
BAND,MIDDLE | 92072 | 92072-031 | 7 | ||
BAND,LONG | 92072A | 92072-032 | 3 | ||
BAND,WIRING HARNESS | 92072B | 92072-056 | 3 | ||
BOLT 6X22 | 110 | 112B0622 | 2 | ||
BOLT-SMALL,8X16,BLACK | 115 | 115C0816 | 2 | ||
SCREW PAN HEAD 6X20 | 220 | 220B0620 | 4 | ||
WASHER PLAIN 6MM | 410 | 410B0600 | 4 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
WASHER SPRING 6MM | 461 | 461F0600 | 7 | ||
WASHER-SPRING,8MM,BLA | 461A | 461K0800 | 2 |
