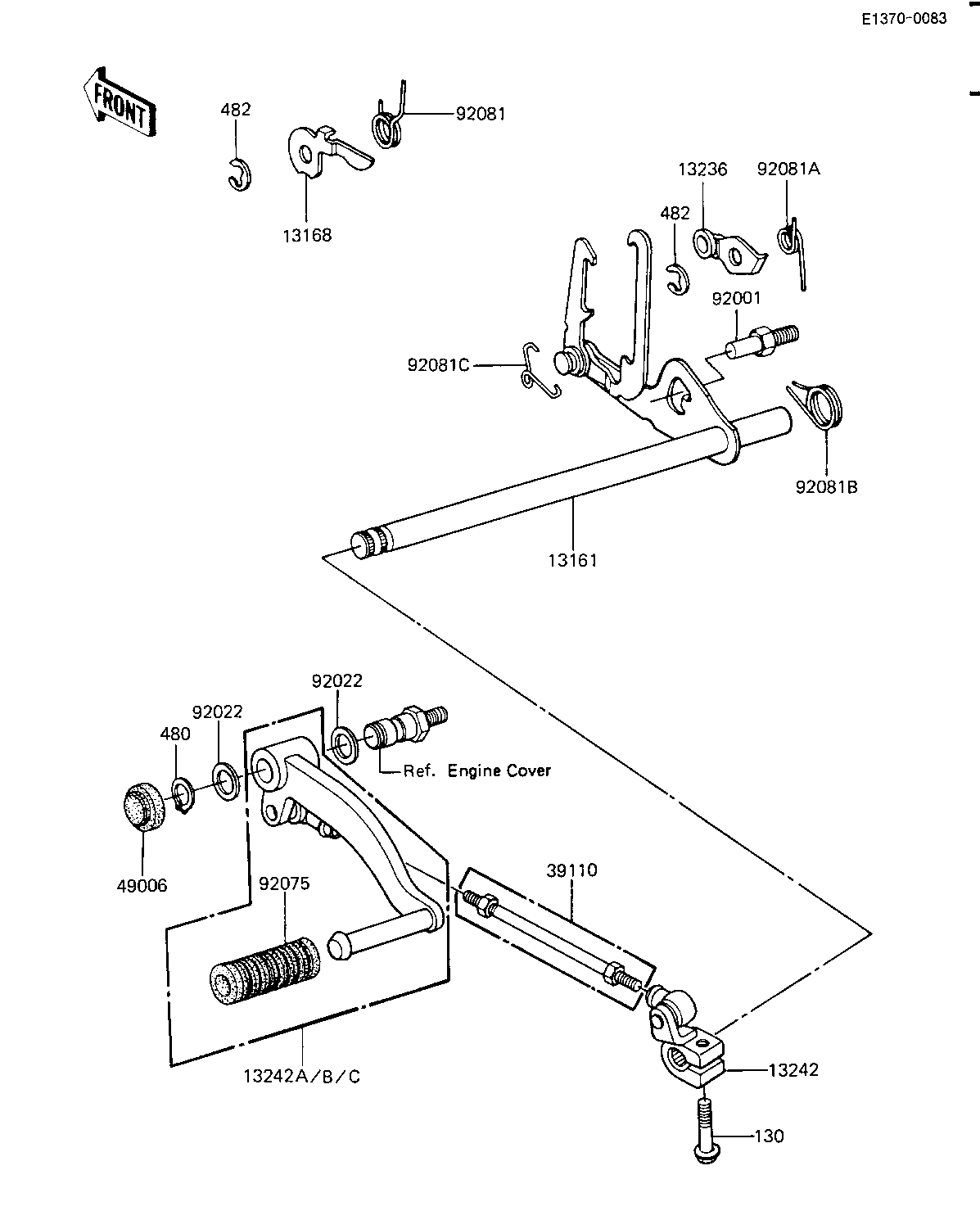

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER-COMP-CHANGE SHA | 13161 | 13161-1023 | 1 | ||
LEVER,GEAR POSITIONIN | 13168 | 13168-1143 | 1 | ||
LEVER-COMP,NEUTRAL PO | 13236 | 13236-1029 | 1 | ||
LEVER-ASSY-CHANGE,ROD | 13242 | 13242-1048 | 1 | ||
LEVER-ASSY-CHANGE,PDL | 13242A | 13242-1153 | 1 | (-JKAZXBA1 DA003887) | |
LEVER-ASSY-CHANGE,PED | 13242C | 13242-1156 | 1 | (JKAZXBA1 DA003888-) | |
ROD-ASSY-TIE,L=60,BLA | 39110 | 39110-1016 | 1 | ||
BOOT,CHANGE LEVER | 49006 | 49006-1061 | 1 | ||
BOLT,RETURN SPRING | 92001 | 92001-1401 | 1 | ||
WASHER PLAIN 12MM | 92022 | 92022-072 | 2 | ||
RUBBER CHANGE PEDAL | 92075 | 13157-004 | 2 | ||
SPRING,POSITIONING LE | 92081 | 92081-1284 | 1 | ||
SPRING | 92081A | 92081-1285 | 1 | ||
SPRING,CHANGE PEDAL R | 92081B | 92081-1589 | 1 | ||
SPRING,KICK PAWL | 92081C | 92083-018 | 1 | ||
BOLT-FLANGED,6X20,BLA | 130 | 130S0620 | 1 | ||
CIRCLIP 12MM | 480 | 480J1200 | 1 | ||
CIRCLIP 6MM | 482 | 482J6000 | 2 |
LEVER-COMP-CHANGE SHA | |
REF # | 13161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER,GEAR POSITIONIN | |
REF # | 13168 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,NEUTRAL PO | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE,ROD | |
REF # | 13242 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE,PDL | |
REF # | 13242A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (-JKAZXBA1 DA003887) |
LEVER-ASSY-CHANGE,PED | |
REF # | 13242C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (JKAZXBA1 DA003888-) |
ROD-ASSY-TIE,L=60,BLA | |
REF # | 39110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CHANGE LEVER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,RETURN SPRING | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN 12MM | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RUBBER CHANGE PEDAL | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,POSITIONING LE | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CHANGE PEDAL R | |
REF # | 92081B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,KICK PAWL | |
REF # | 92081C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X20,BLA | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP 12MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP 6MM | |
REF # | 482 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
