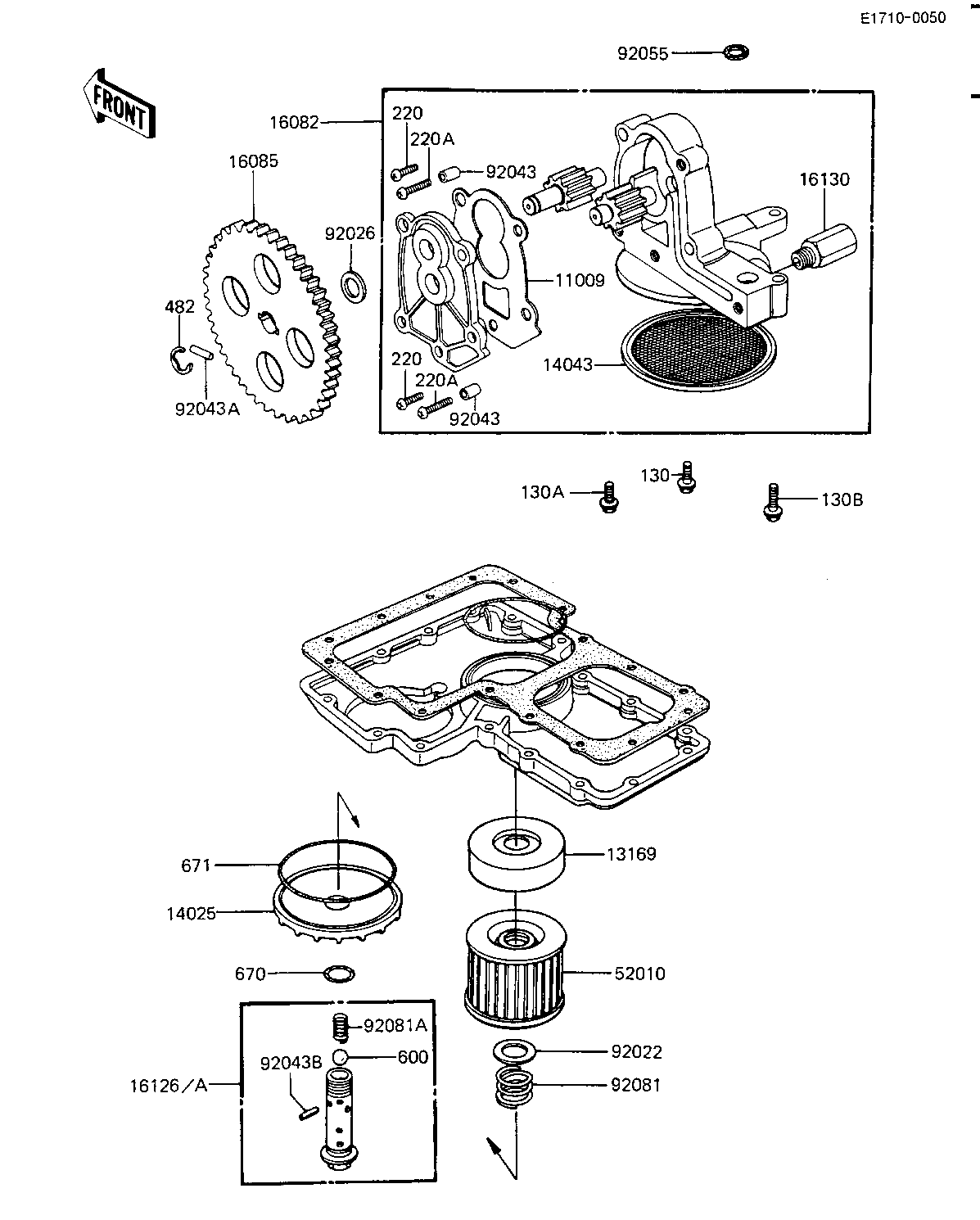

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,OIL PUMP | 11009 | 11009-1029 | 1 | ||
PLATE,OIL FILTER | 13169 | 13169-1313 | 1 | ||
COVER,OIL FILTER,F.BL | 14025 | 14025-1422 | 1 | ||
STRAINER,OIL PUMP | 14043 | 16111-004 | 1 | ||
PUMP-ASSY-OIL | 16082 | 16082-1031 | 1 | ||
GEAR,OIL PUMP,49T | 16085 | 16085-1038 | 1 | ||
VALVE,OIL FILTER | 16126 | 16126-1108 | 1 | ||
RELEAF VALVE ASSY | 16130 | 16130-1001 | 1 | ||
FILTER,OIL | 52010 | 16099-003 | 1 | ||
WASHER,20.5X30X1.0 | 92022 | 92022-1012 | 1 | ||
WASHER,LOCK,16MM | 92026 | 92026-080 | 1 | ||
PIN,DOWEL,8X10 | 92043 | 92043-1302 | 2 | ||
PIN,GEAR CHANGE DRUM | 92043A | 92042-042 | 1 | ||
SPRING PIN | 92043B | 92043-111 | 1 | ||
O RING,0.D=18MM | 92055 | 92055-048 | 1 | ||
SPRING,OIL FILTER | 92081 | 92081-1018 | 1 | ||
UNAVAILABLE IN PRICE BOOK | 92081A | 92081-10 | 1 | ||
BOLT,FLANGED,6X25 | 130 | 130G0625 | 1 | ||
BOLT,FLANGED,6X35 | 130A | 130H0635 | 1 | ||
BOLT,FLANGED,6X45 | 130B | 130G0645 | 1 | ||
SCREW PAN HEAD 6X18 | 220 | 220B0618 | 4 | ||
SCREW PAN HEAD 6X28 | 220A | 220B0628 | 2 | ||
CIRCLIP 7MM | 482 | 482J7000 | 1 | ||
BALL STEEL 3/8' | 600 | 600A1200 | 1 | ||
"0" RING,16MM | 670 | 670B2016 | 1 | ||
"0" RING,90MM | 671 | 671B2590 | 1 |
