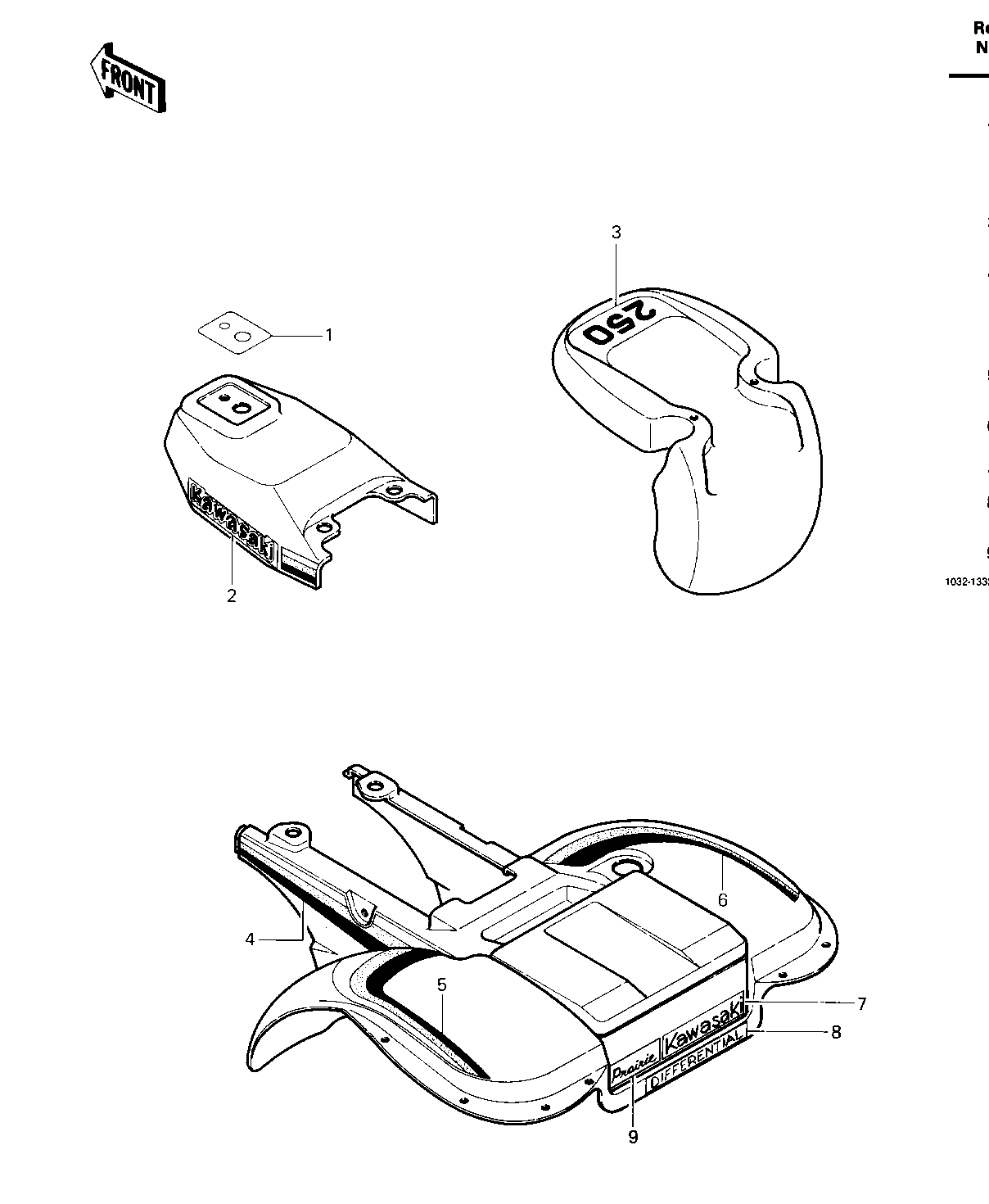

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,IGNITION SWITCH | 1 | 56030-4006 | 1 | ||
| EMBLEM KAWASAKI LH BK | 2 | 56014-4027 | 1 | EBONY BLACK | |
| EMBLEM,KAWASAKI,LH RD | 2 | 56014-4029 | 1 | WILDFIRE RED | |
| EMBLEM KAWASAKI RH BK | 2 | 56014-4028 | 1 | EBONY BLACK | |
| EMBLEM,KAWASAKI RH RD | 2 | 56014-4030 | 1 | WILDFIRE RED | |
| MARK 250 BLACK | 3 | 56018-4014 | 1 | EBONY BLACK | |
| MARK 250 RED | 3 | 56018-4015 | 1 | WILDFIRE RED | |
| PATTERN LH BLACK | 4 | 56027-4117 | 1 | EBONY BLACK | |
| PATTERN LH RED | 4 | 56027-4121 | 1 | WILDFIRE RED | |
| PATTERN RH BLACK | 4 | 56027-4118 | 1 | EBONY BLACK | |
| PATTERN RH RED | 4 | 56027-4122 | 1 | WILDFIRE RED | |
| PATTERN LH RR-FDR BLK | 5 | 56027-4119 | 1 | EBONY BLACK | |
| PATTERN,LH RR-FDR RED | 5 | 56027-4123 | 1 | WILDFIRE RED | |
| PATTERN RH RR-FDR BLK | 6 | 56027-4120 | 1 | EBONY BLACK | |
| PATTERN LH RR-FDR RED | 6 | 56027-4124 | 1 | WILDFIRE RED | |
| EMBLEM KAWASAKI TRUNK | 7 | 56014-4017 | 1 | ||
| MARK,DIFFERENTIAL BLK | 8 | 56018-4019 | 1 | EBONY BLACK | |
| MARK,DIFFERENTIAL RED | 8 | 56018-4020 | 1 | WILDFIRE RED | |
| MARK,PRAIRIE | 9 | 56018-4021 | 1 |
