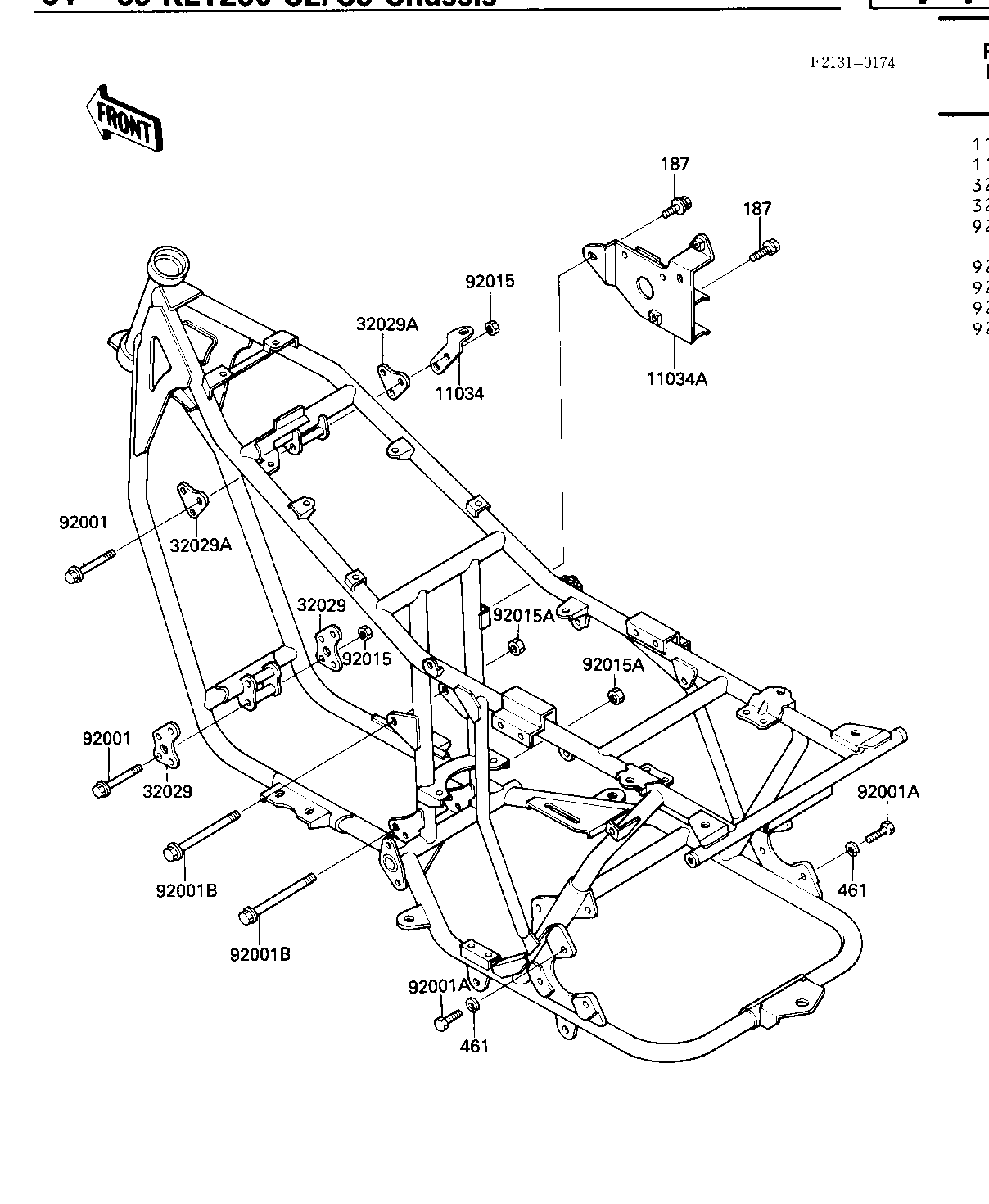

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,IGNITION COIL 11034 11034-4196 1
BRACKET,ELECTRO BASE 11034A 11034-4216 1
BRACKET-ENGINE 32029 32029-4022 2
BRACKET-ENGINE 32029A 32029-4023 2
BOLT-FLANGE 92001 92001-1582 7
BOLT 92001A 92001-160 6
BOLT, FLANGED, 10X110 92001B 92001-1602 2
NUT,LOCK,8MM 92015 92015-1124 7
NUT,LOCK,10MM 92015A 92019-021 2
BOLT 6X14 187 187B0614 3
WASHER SPRING 10MM 461 461F1000 6
