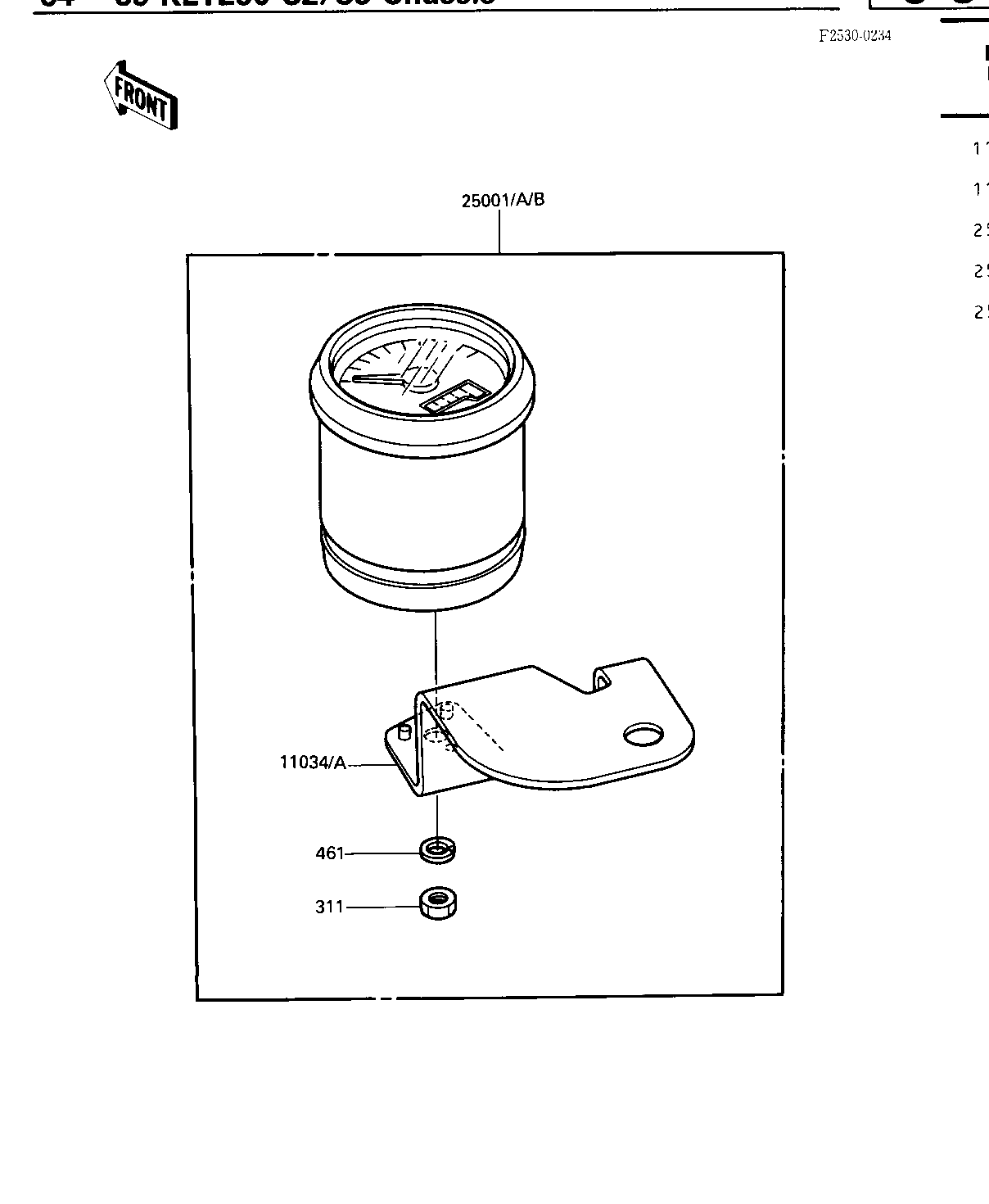

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-METER ASSY 11034 11034-4136 1 CN
BRACKET,METER 11034A 11034-4253 1 CN
METER-ASSY (Canada) 25001 25001-1606 1 CN
METER-ASSY,KPH (Canada) 25001A 25001-4007 1 CN
METER-ASSY 25001B 25001-4008 1 US
NUT 6MM 311 311B0600 1
WASHER SPRING 6MM 461 461F0600 1
