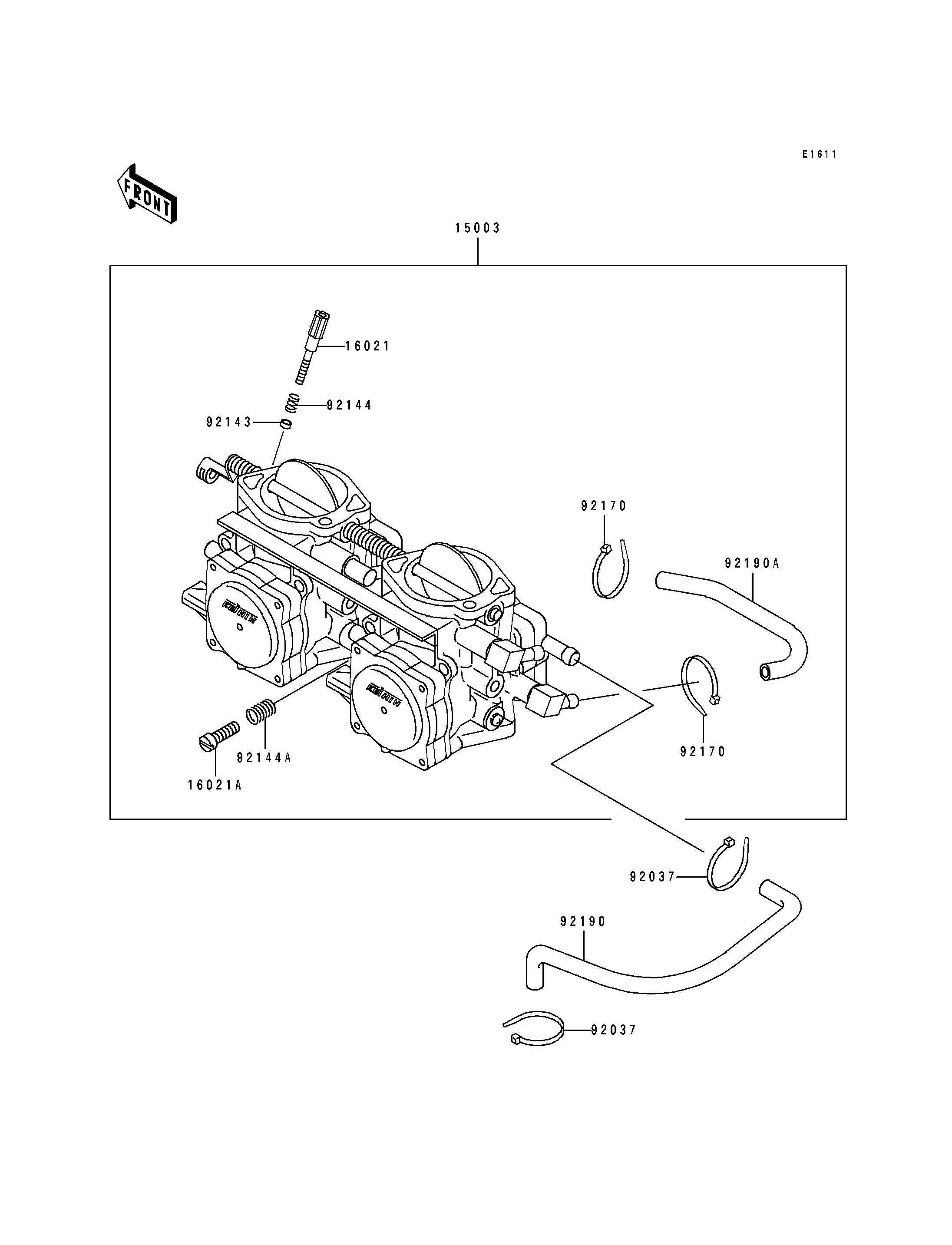

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR-ASSY 15003 15003-3701 1
SCREW-THROTTLE STOP 16021 16021-3702 1
SCREW-THROTTLE STOP 16021A 16021-3704 1
CLAMP 92037 92037-1173 2
COLLAR,THROTTLE STOP SCREW 92143 92143-3709 1
SPRING,THROTTLE STOP SCREW 92144 92144-3706 1
SPRING,THROTTLE STOP SCREW 92144A 92144-3745 1
CLAMP,TUBE 92170 92170-3740 2
TUBE,PULSE 92190 92190-3904 1
TUBE,5.3X10.5X180 92190A 92190-3910 1
