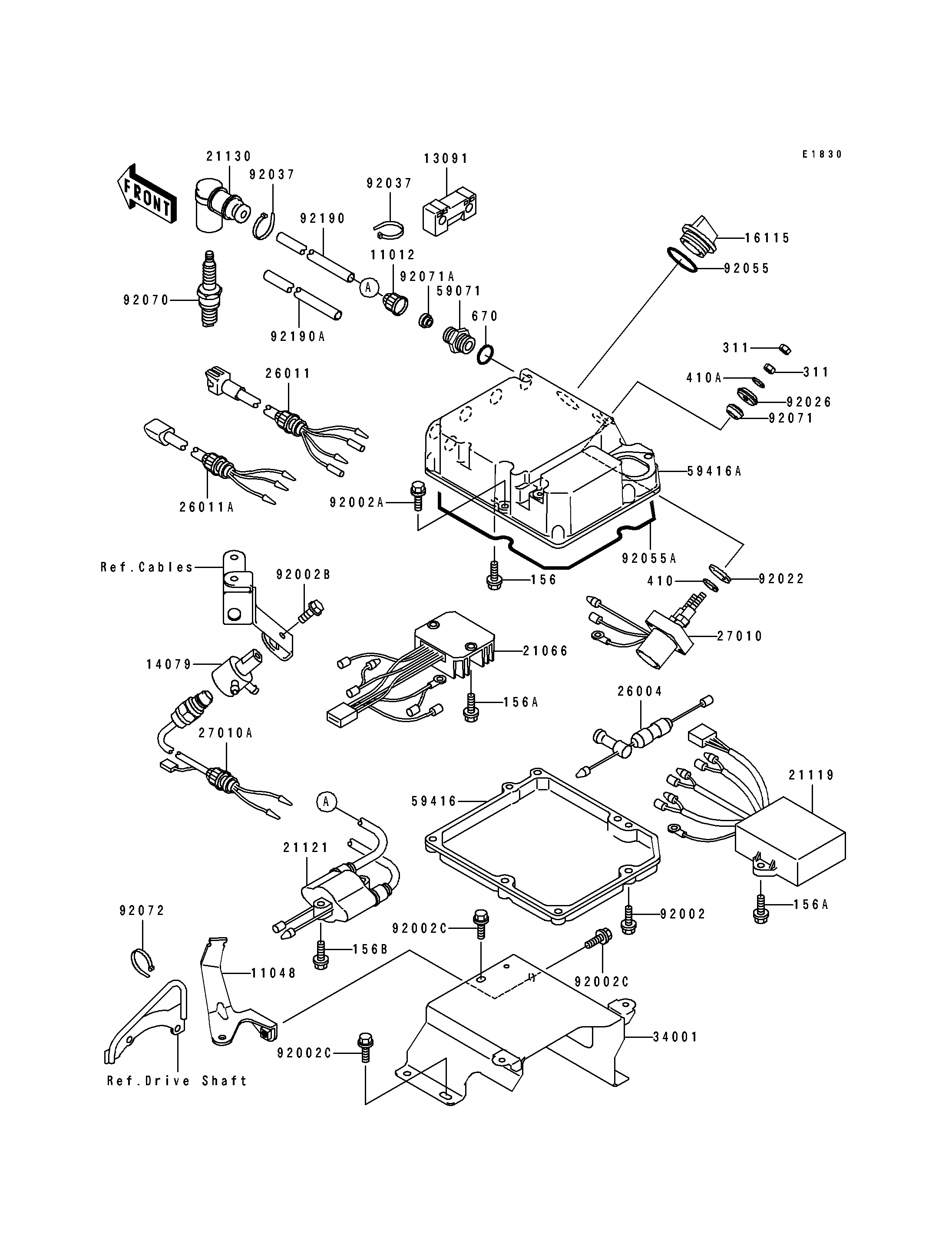

1994 XiR - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3005 2
BRACKET,HIGH TENSION CORD 11048 11048-3736 1
HOLDER,HIGH TENSION CORD 13091 13091-3771 1
HOLDER-ASSY 14079 14079-3705 1
CAP-OIL FILLER 16115 16115-1009 1
REGULATOR-VOLTAGE 21066 21066-3711 1
IGNITER 21119 21119-3738 1
COIL-IGNITION 21121 21121-3707 1
CAP-SPARK PLUG 21130 21130-3706 2
FUSE-ASSY 26004 26004-3712 1
WIRE-LEAD 26011 26011-3799 1
WIRE-LEAD 26011A 26011-3800 1
SWITCH,STARTER RELAY 27010 27010-3724 1
SWITCH,WATER SENSOR 27010A 27010-3738 1
STAND,ELECTRIC CASE 34001 34001-3705 1
JOINT 59071 59071-3001 5
CASE-ELECTRIC,LWR 59416 59416-3728 1
CASE-ELECTRIC,UPP 59416A 59416-3729 1
BOLT,6X25 92002 92002-3714 5
BOLT,6X35 92002A 92002-3715 3
BOLT,6X16 92002B 92002-3728 1
BOLT,6X12 92002C 92002-3763 6
WASHER 92022 92022-3035 2
SPACER 92026 92026-3703 2
CLAMP 92037 92037-1173 4
RING-O,31.5X2.6 92055 92055-049 1
RING-O,ELECTRIC CASE 92055A 92055-3733 1
PLUG-SPARK,BR8ES(NGK) 92070 92070-2078 2
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-527 2
BAND 92072 92072-3778 2
TUBE,8X10X295 92190 92190-3960 1
TUBE,8X10X175 92190A 92190-3961 1
BOLT-WP,6X14 156 156R0614 1
BOLT-WP,6X22 156A 156R0622 4
BOLT-WP 156B 156R0630 2
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,10MM 410 410B1000 2
WASHER-PLAIN-SMALL,6MM 410A 410S0600 2
O RING,16MM 670 670B2016 5
