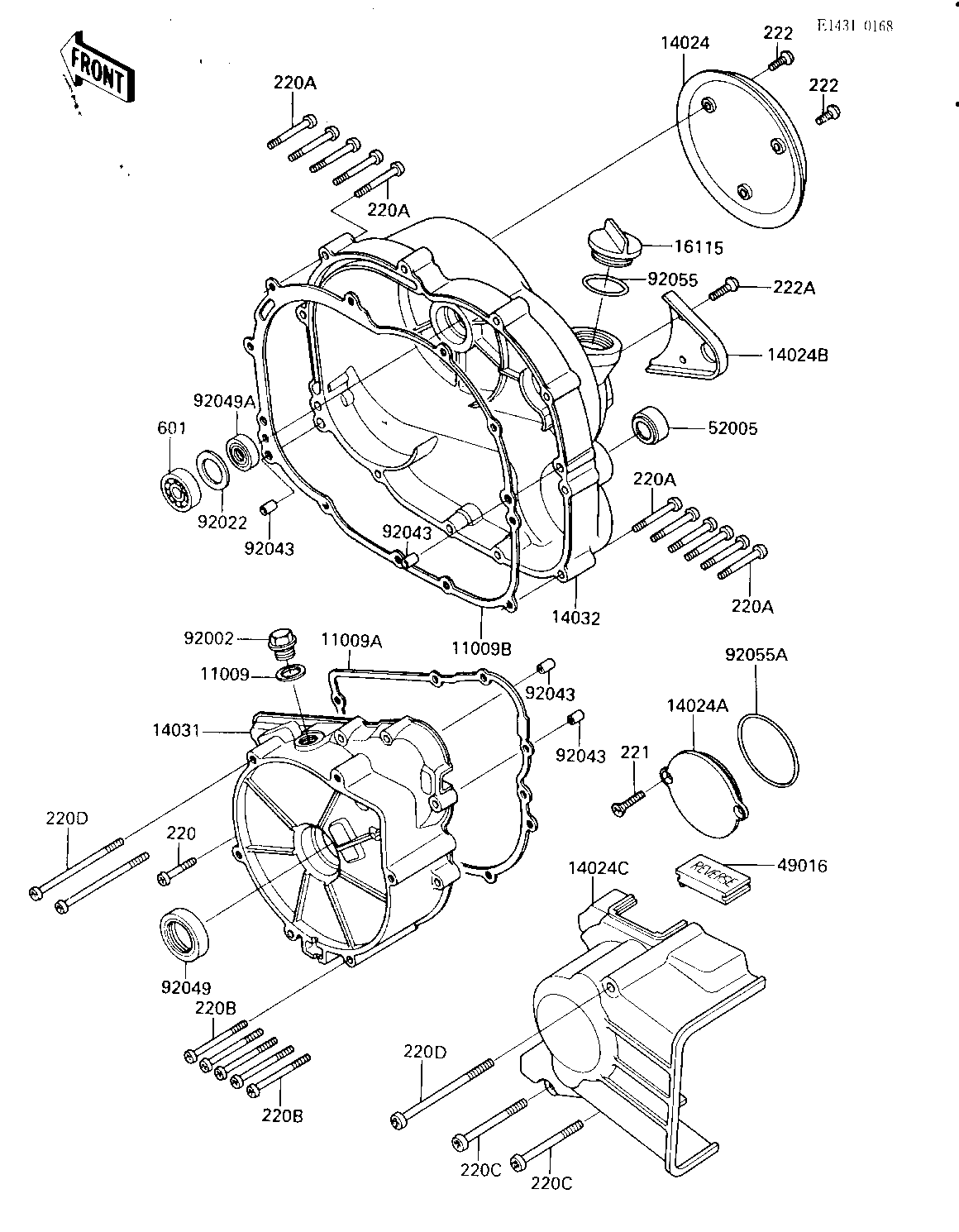

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TENSIONER | 11009 | 11009-1238 | 1 | ||
GASKET,GENERATOR COVE | 11009A | 11009-1393 | 1 | ||
GASKET,CLUTCH COVER | 11009B | 11009-1395 | 1 | ||
COVER,CLUTCH COVER | 14024 | 14025-1807 | 1 | ||
COVER | 14024A | 14025-1813 | 1 | ||
COVER | 14024B | 14025-1838 | 1 | ||
COVER,GEAR CASE | 14024C | 14025-1940 | 1 | ||
COVER-GENERATOR | 14031 | 14031-1173 | 1 | ||
COVER-CLUTCH | 14032 | 14032-1158 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
COVER-SEAL,REVERSE | 49016 | 49016-1107 | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
BOLT,14X10 | 92002 | 92002-1513 | 1 | ||
WASHER,21X31.5X1.0 | 92022 | 92022-1624 | 1 | ||
PIN-DOWEL | 92043 | 92042-007 | 4 | ||
SEAL-OIL | 92049 | 92049-1317 | 1 | ||
SEAL-OIL | 92049A | 92049-1191 | 1 | ||
"0" RING,31MM | 92055 | 92055-049 | 1 | ||
RING-0,55MM | 92055A | 92055-1120 | 1 | ||
SCREW-PAN-CROS,6X25,B | 220 | 220C0625 | 1 | ||
SCREW-PAN HEAD,6X30 | 220A | 220C0630 | 11 | ||
SCREW-PAN-CROS,6X35,B | 220B | 220C0635 | 5 | ||
SCREW-PAN-CROS | 220C | 220C0650 | 2 | ||
SCREW-PAN-CROS,6X70 | 220D | 220C0670 | 3 | ||
SCREW 6X18 | 221 | 221B0618 | 2 | ||
SCREW-CSK-RD-CROS | 222 | 222C0510 | 3 | ||
SCREW-CSK-RD-CROS | 222A | 222C0518 | 2 | ||
BEARING BALL #6201 | 601 | 601B6201 | 1 |
